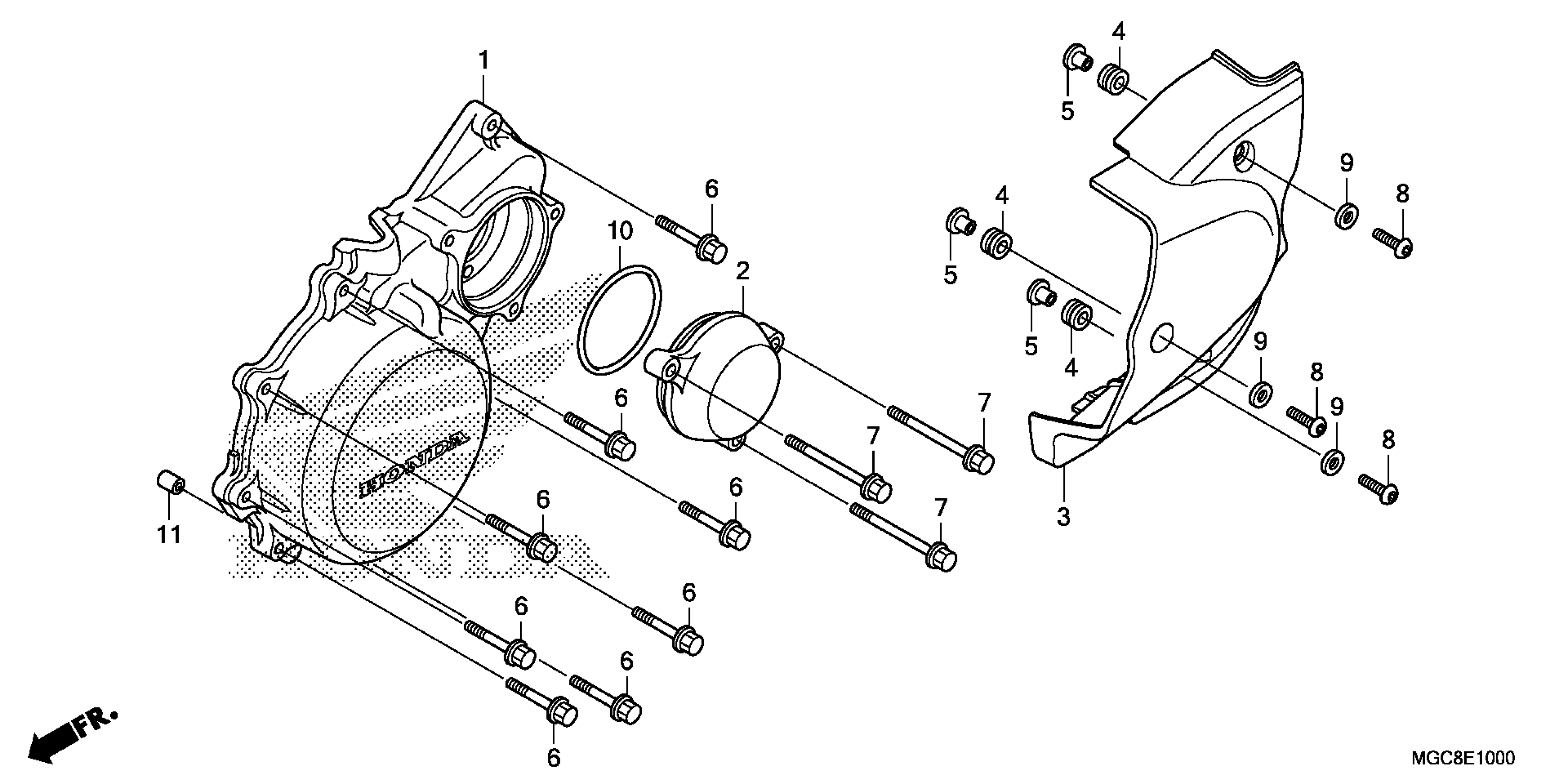

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11321-MGC-J80

$149.00

COVER, L. CAP

11340-MAZ-000

$52.54

COVER, L. SIDE

11661-MGC-N20

$273.43

RUBBER, PIVOT COVER (LOWER)

64386-MS2-000

$4.94

COLLAR, LOCK SETTING

83119-MG9-000

$5.50

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.86

BOLT, FLANGE (6X60) (NSHF)

90006-GHB-750

$1.80

BOLT, SPECIAL (6X17)

90085-MCZ-000

$1.94

WASHER, PLAIN (6MM)

90525-428-900

$1.84

O-RING (58X2.5)

91303-MEJ-003

$5.22

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04
