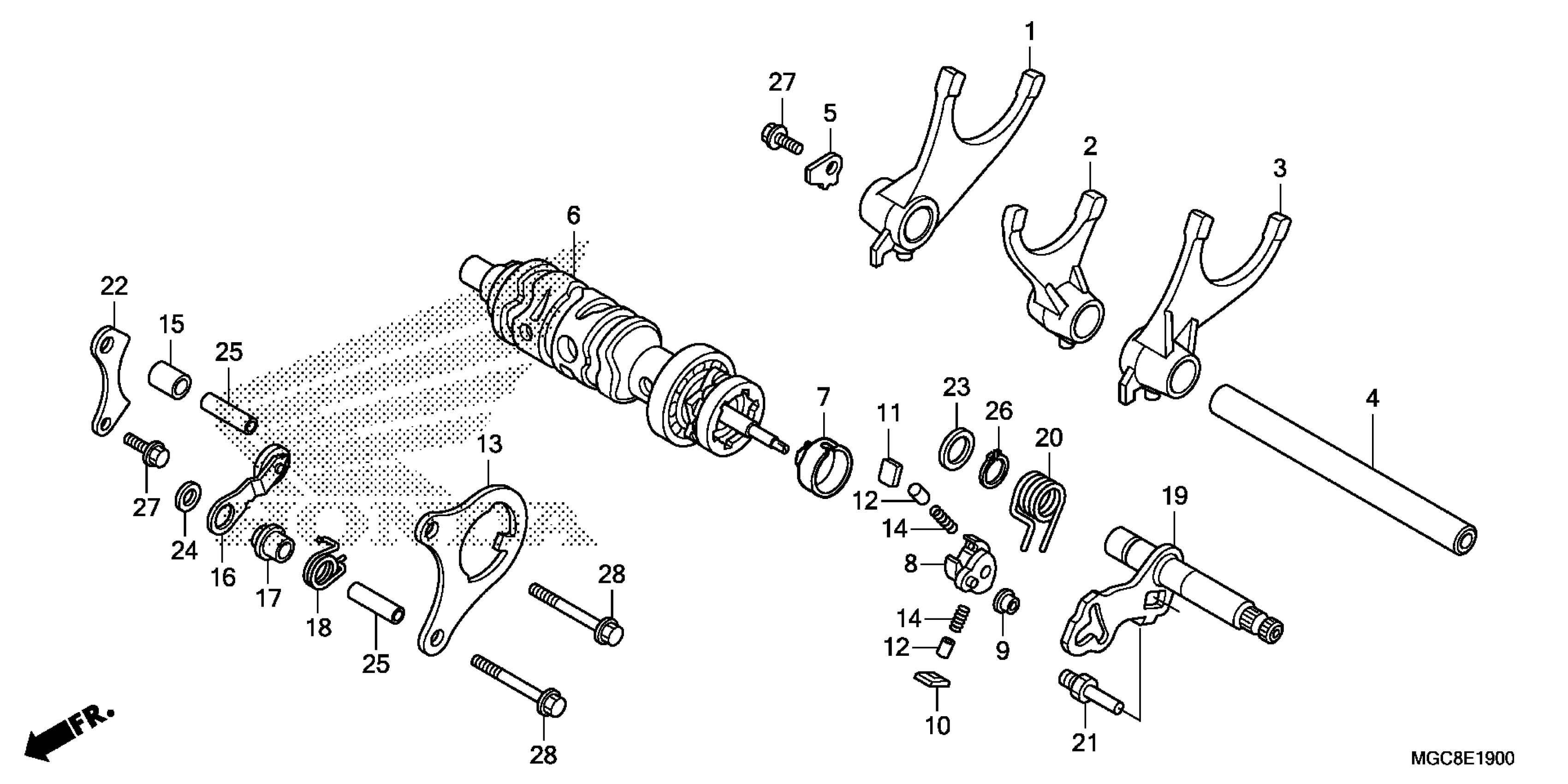

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 GEARSHIFT DRUM@GEARSHIFT FORK Diagram

FORK, R. GEARSHIFT

24211-MGC-N20

$61.22

FORK, CENTER GEARSHIFT

24212-MGC-N20

$58.99

FORK, L. GEARSHIFT | Use up to Engine SN 5403769.

24213-MGC-N20

$61.24

FORK L, GEARSHIFT | Use from Engine SN 5403770.

24213-MGC-N21

$62.31

SHAFT, GEARSHIFT FORK

24231-MGC-N20

$25.13

PLATE, GEARSHIFT FORK SHAFT

24235-MAZ-000

$5.32

DRUM, GEARSHIFT

24310-MGC-N20

$164.21

PIECE, POSITION SWITCH DRIVE

24314-MJ0-000

$5.68

SHIFTER, DRUM

24321-KT8-030

$50.85

COLLAR, SHIFTER

24322-MM4-000

$4.88

PAWL A, RATCHET

24324-KA3-711

$12.13

PAWL B, RATCHET

24325-KA3-711

$12.13

PLUNGER, PAWL

24326-KBH-901

$5.56

PLATE, GUIDE

24328-MFP-N90

$12.75

SPRING, PAWL PLUNGER

24329-KA3-740

$2.71

COLLAR, GUIDE PLATE DISTANCE

24329-KT8-000

$5.51

STOPPER, DRUM

24430-MBR-000

$15.18

COLLAR, DRUM STOPPER

24434-KT7-000

$8.44

SPRING, DRUM STOPPER

24435-MFP-N91

$4.47

SPINDLE, GEARSHIFT

24610-MGC-N20

$54.59

SPRING, SHIFT RETURN

24651-MAE-000

$7.57

PIN, SHIFT RETURN SPRING

24652-035-000

$3.83

PLATE, SHIFT DRUM BEARING SETTING

24655-MM5-000

$10.56

WASHER (14MM)

90451-155-000

$3.62

WASHER (8MM)

90485-040-000

$1.63

PIN, DOWEL (8X26.4)

91103-KT7-000

$2.59

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.88
