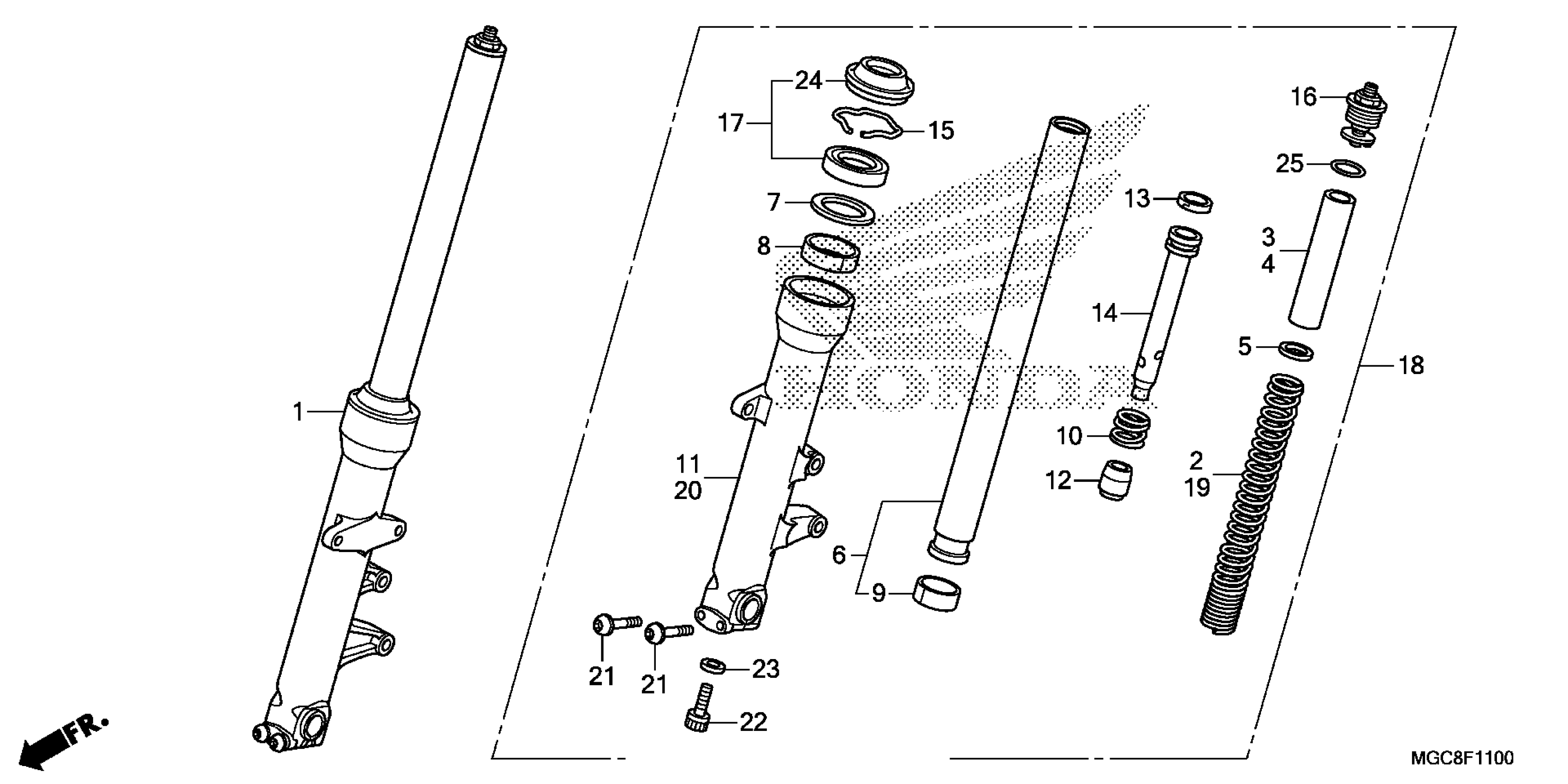

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 FRONT FORK (1) Diagram

FORK ASSY., R. FR. (SHOWA)

51400-MGC-JB1

$759.23

SPRING, R. FR.

51401-MGC-JB1

$77.82

COLLAR, SPRING (R. SIDE)

51402-ML7-921

$26.39

COLLAR, SPRING (L. SIDE)

51402-MS2-003

$17.80

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.78

PIPE, FR. FORK (SHOWA)

51410-MGC-JB1

$364.20

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

BUSH, GUIDE

51414-MFJ-A51

$7.25

BUSH, SLIDER

51415-MFJ-A51

$7.25

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.89

CASE, R. (LOWER)

51420-MGC-N41

$422.48

PIECE, OIL LOCK

51432-MV4-003

$14.02

RING, PISTON

51437-MKA-D81

$5.64

PIPE, SEAT (SHOWA)

51440-MGC-JB1

$45.74

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

BOLT ASSY., FR. FORK (SHOWA)

51450-MGC-JB1

$53.15

SEAL SET, FR. FORK

51490-MKA-D81

$22.76

FORK ASSY., L. FR. (SHOWA)

51500-MGC-JB1

$759.23

SPRING, L. FR.

51501-MGC-JB1

$102.64

CASE, L. (LOWER)

51520-MGC-N41

$422.48

BOLT, SOCKET (8X45)

90109-MBT-611

$3.79

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

DUST SEAL (SHOWA)

91251-MKA-D81

$8.55

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76
