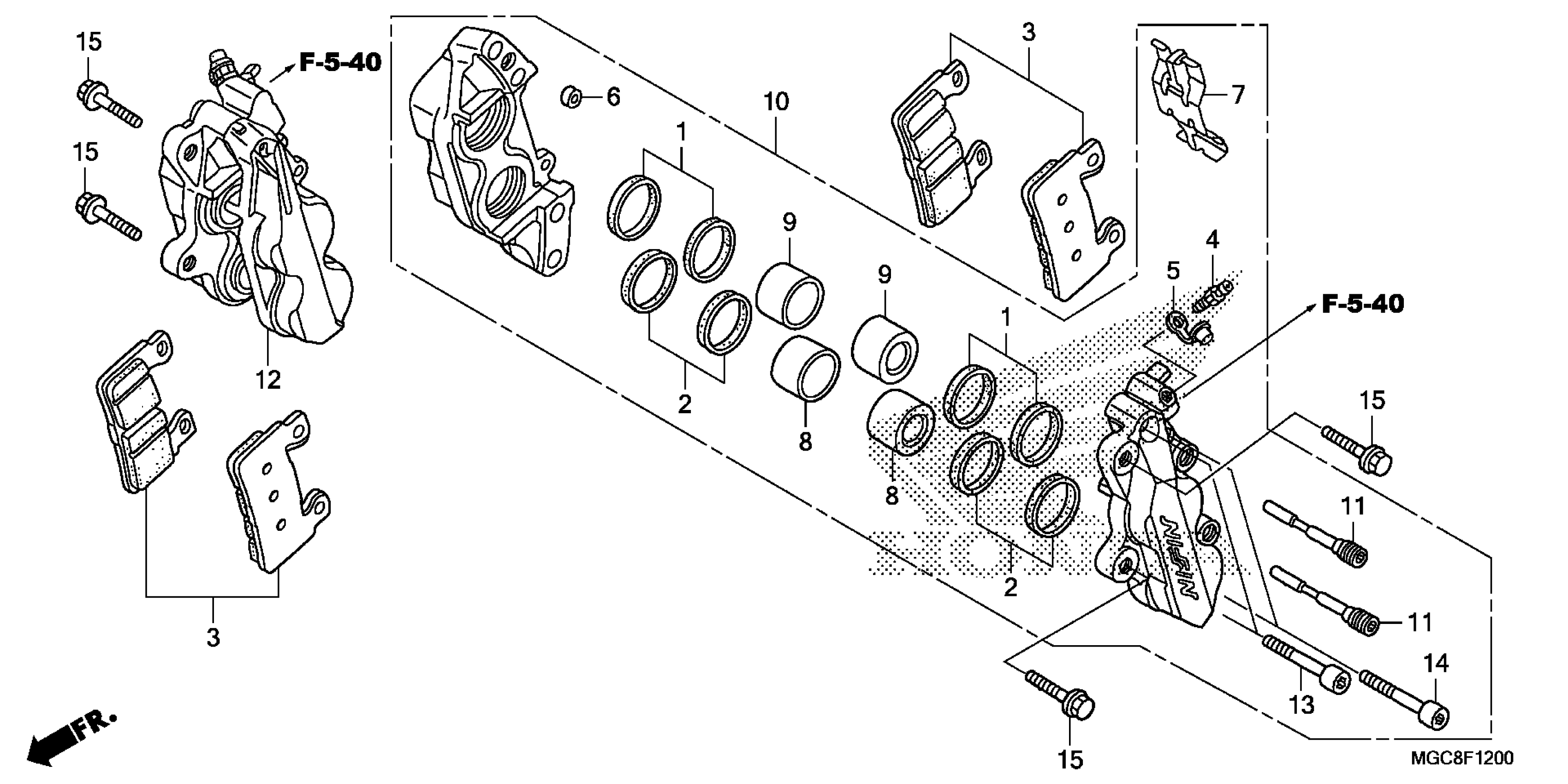

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 FRONT BRAKE CALIPER (1) Diagram

SEAL SET, PISTON

06451-MCJ-751

$10.62

SEAL SET, PISTON

06451-MCZ-006

$5.56

PAD SET, FR.

06455-MGC-016

$58.09

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.56

SPRING, PAD

45106-MAS-E01

$8.91

PISTON A This part replaces 45107-MCZ-016.

45107-MCZ-026

$38.75

PISTON B This part replaces 45117-MCJ-752.

45117-MCJ-753

$37.25

CALIPER SUB-ASSY. This part replaces 45150-MGC-016.

45150-MGC-026

$451.85

PIN, HANGER

45215-MAS-E01

$9.51

CALIPER SUB-ASSY. This part replaces 45250-MGC-016.

45250-MGC-026

$451.85

BOLT, TORX (8X35)

90107-MAS-E01

$7.14

BOLT, TORX (8X40)

90108-MAS-E01

$6.87

BOLT, FLANGE (8X32)

90131-MGC-000

$3.21
