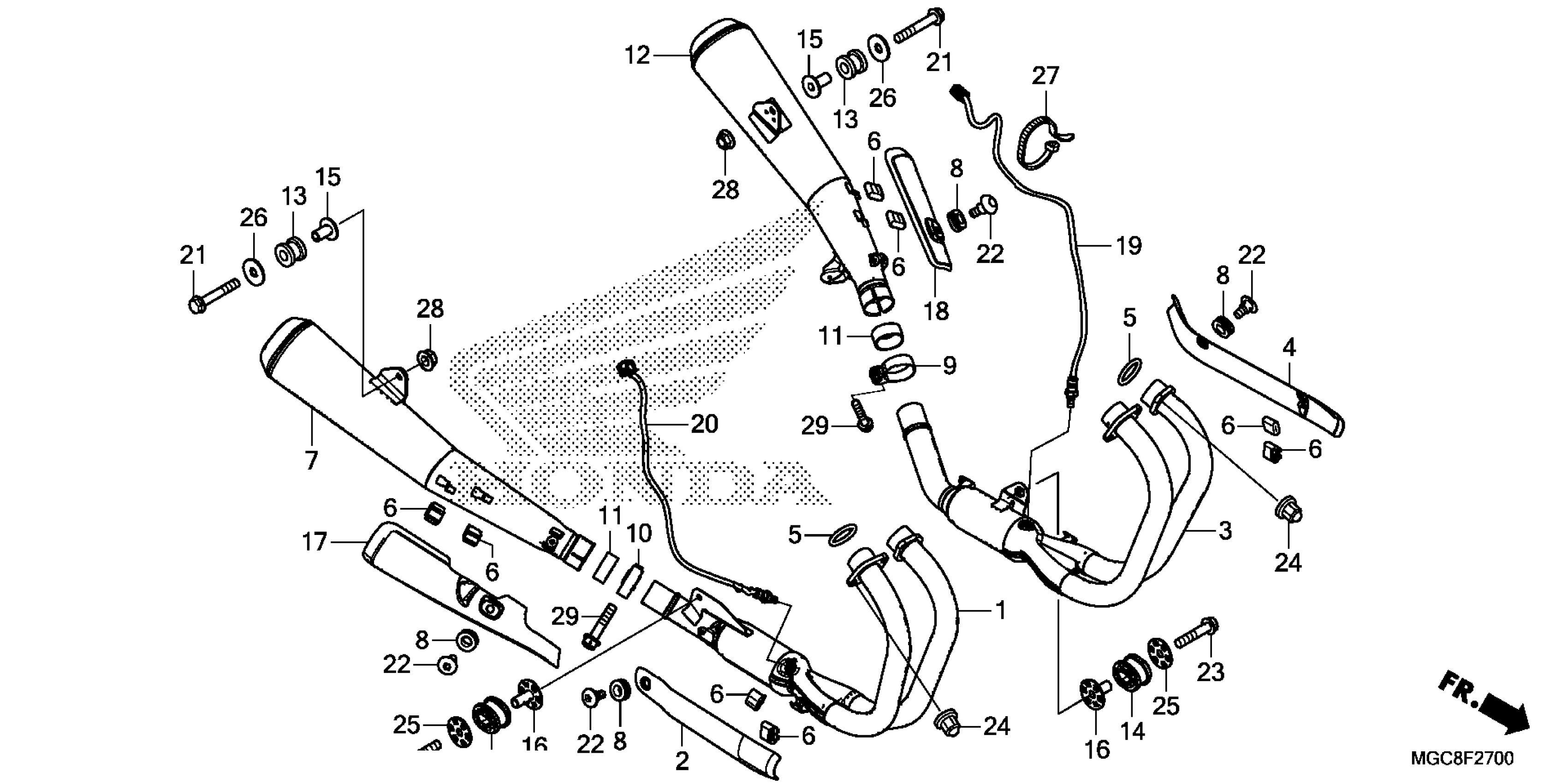

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 EXHAUST MUFFLER Diagram

#

Description
Price

1

PIPE, R. EX.

18150-MGC-JB1

$1,046.62

2

PROTECTOR, R. EX.

18151-MGC-N20

$96.30

3

PIPE, L. EX.

18250-MGC-JB1

$1,027.96

4

PROTECTOR, L. EX.

18251-MGC-N20

$106.14

5

GASKET, EX. PIPE

18291-MM5-860

$4.81

6

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.87

7

MUFFLER, R.

18310-MGC-JB1

$721.68

8

RUBBER, PROTECTOR MOUNTING

18357-MCG-000

$2.78

9

BAND, R. RR. MUFFLER (L. SIDE)

18375-413-000

$36.49

10

BAND, L. RR. MUFFLER (R. SIDE)

18376-413-000

$32.96

11

GASKET, RR. MUFFLER

18392-MG7-750

$12.26

12

MUFFLER, L.

18410-MGC-JB1

$721.68

13

RUBBER, MUFFLER MOUNTING

18421-MGC-JB0

$4.49

14

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$16.83

15

COLLAR, MUFFLER MOUNTING

18422-MGC-JB0

$5.71

16

COLLAR, EX. PIPE MOUNTING

18423-MGC-N20

$5.81

17

COVER, R. MUFFLER

18425-MGC-JB1

$119.83

18

COVER, L. MUFFLER

18525-MGC-JB1

$76.41

19

SENSOR, OXYGEN (NGK)

36531-MGC-JB1

$235.58

20

SENSOR, OXYGEN (NGK)

36531-MGC-N21

$238.83

21

BOLT, FLANGE (8X35)

90107-MCT-000

$2.36

22

SCREW, SPECIAL (6X14)

90114-MCJ-000

$2.29

23

BOLT, SPECIAL FLANGE (8X40)

90122-MM2-000

$3.90

24

NUT, CAP (8MM)

90304-ME1-670

$5.54

25

WASHER (8.5X38)

90501-MGC-N20

$2.96

26

WASHER (8.5X26)

90504-ME4-000

$3.03

27

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

28

NUT, FLANGE (8MM)

94050-08040

$1.33

29

BOLT, FLANGE (8X38)

95701-08038-00

$1.38
