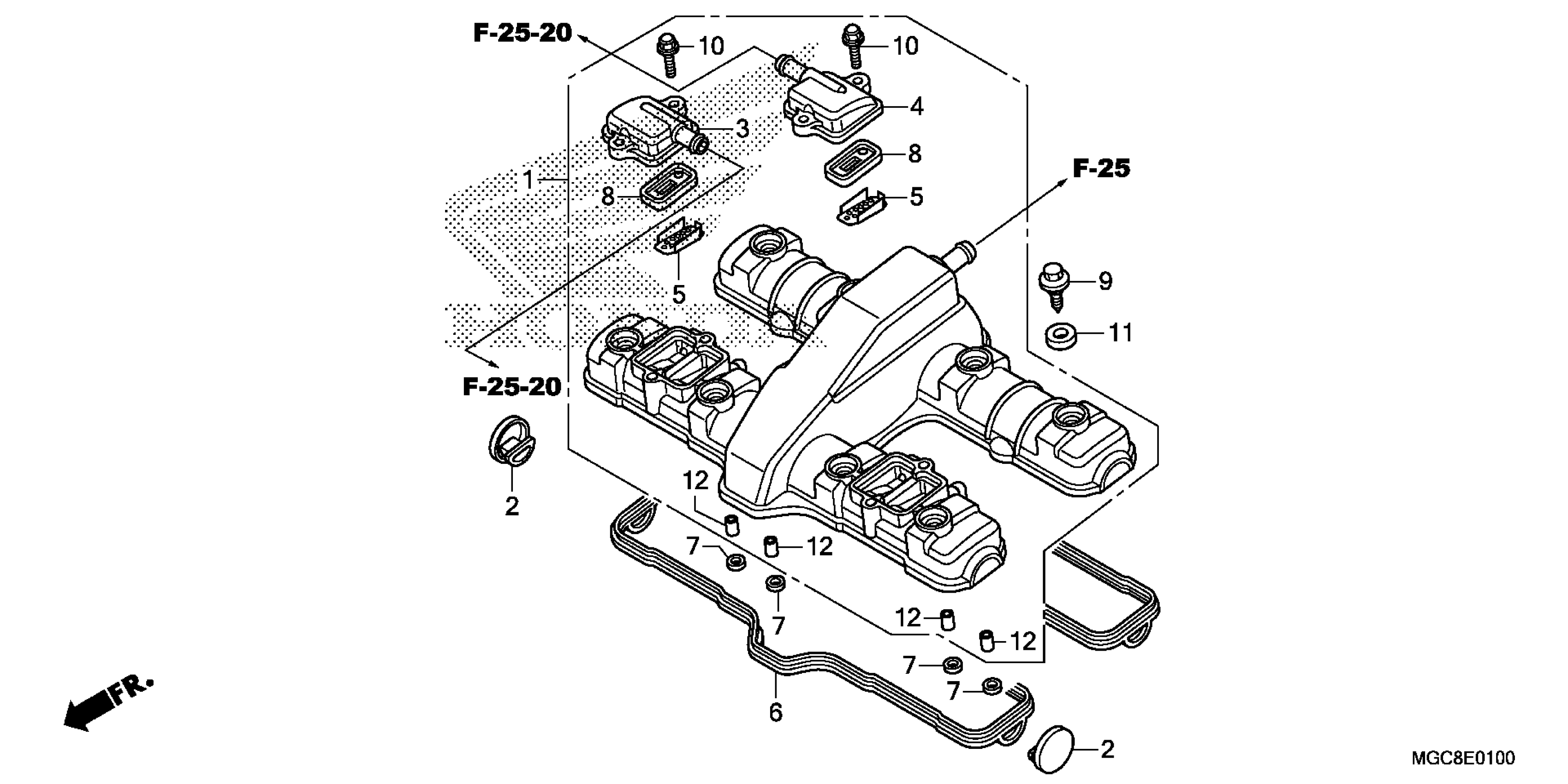

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER ASSY., CYLINDER HEAD

12300-MGC-J80

$938.67

2

CAP, CYLINDER HEAD SIDE

12331-MEJ-000

$15.98

3

COVER, R. REED VALVE

12332-MGC-J80

$40.43

4

COVER, L. REED VALVE

12333-MGC-J80

$40.43

5

PLATE, PORT (AI)

12341-MAT-750

$13.98

6

GASKET, HEAD COVER

12391-MGC-010

$62.95

7

GASKET B, HEAD COVER

12396-KCR-940

$4.01

8

VALVE, REED (ARAI)

18601-KEA-741

$18.89

9

BOLT, HEAD COVER | Use up to Engine SN 5401224. This part replaces 90017-MGC-000.

90017-MGC-010

$3.48

9

BOLT, HEAD COVER

90017-MGC-010

$3.48

10

BOLT, FLANGE (6X20)

90020-ZC3-000

$1.94

11

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.94

12

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25
