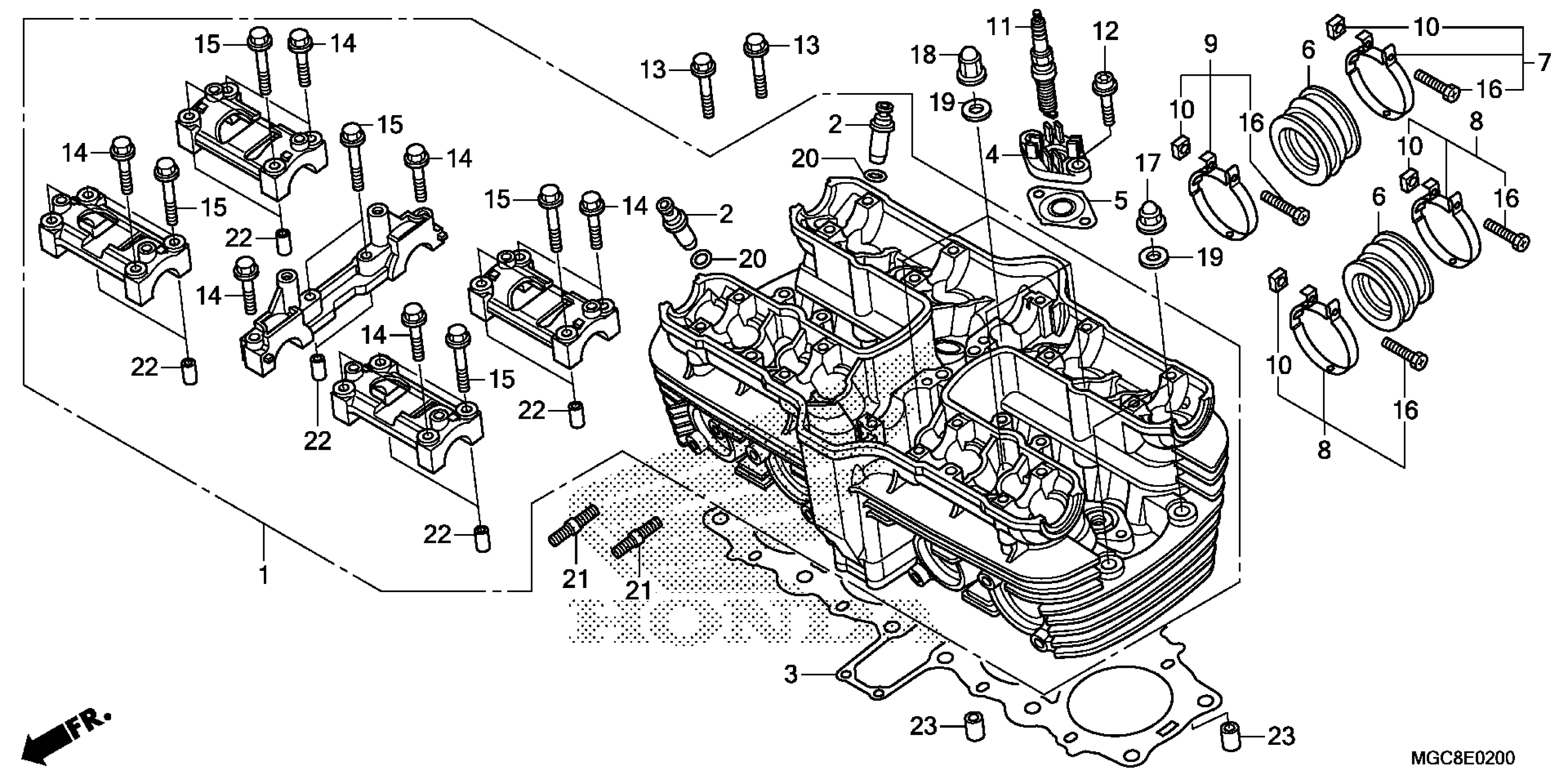

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MGC-000

$1,834.23

GUIDE, VALVE (OVER SIZE)

12204-MGC-305

$22.97

GASKET, CYLINDER HEAD

12251-MGC-003

$126.95

COVER, PLUG HOLE

12511-MGC-000

$27.74

GASKET, PLUG HOLE COVER

12521-MGC-003

$6.59

INSULATOR, THROTTLE BODY

16210-MGC-000

$48.85

BAND, INSULATOR (#2,#3)

16217-MGC-000

$8.87

BAND, INSULATOR (#1,#4)

16218-MGC-J80

$7.31

BAND, INSULATOR (#2,#3)

16219-MGC-J80

$7.31

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$2.15

SPARK PLUG (LMAR8A-9S) (NGK)

31908-MGC-003

$18.27

BOLT, FLANGE TORX (6X25)

90002-MGC-000

$3.02

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, FLANGE (6X37)

90016-KT7-000

$2.92

BOLT, FLANGE (6X48) (Honda Code 0717256)

90018-425-000

$3.35

BOLT, RECESSED (5X28) (GQ51B C)

90023-MM5-000

$2.92

NUT, CAP (9MM)

90231-MGC-000

$3.02

NUT, CAP (9MM)

90232-MGC-000

$2.97

WASHER, SEALING (9MM)

90411-MGC-000

$4.84

O-RING (10X1.6)

91301-200-000

$3.01

BOLT 2, STUD (8X28)

92900-08028-0E

$2.34

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28
