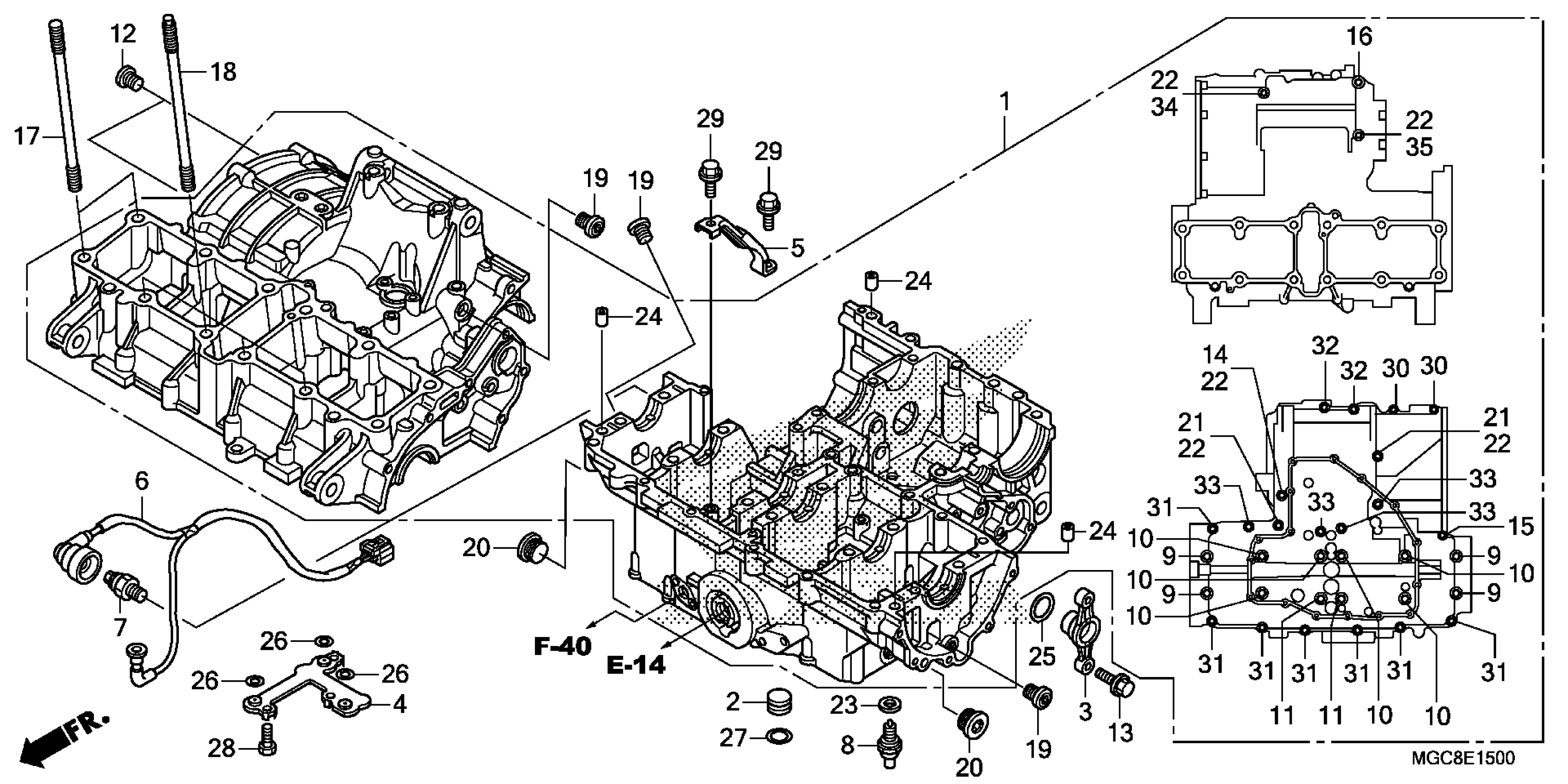

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MGC-A40

$2,837.10

2

COLLAR, MAIN GALLERY

11208-MAZ-000

$4.54

3

COVER, L. MIDDLE

11371-MGC-000

$34.23

4

PLATE, OIL PASSAGE

12260-MGC-N20

$54.56

5

GUIDE, OIL PUMP CHAIN

15160-MGC-000

$37.89

6

SUB-WIRE, ENGINE

32101-MGC-000

$35.02

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

8

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$18.90

9

BOLT, FLANGE (9X91)

90001-MAZ-000

$5.75

10

BOLT, FLANGE (9X131)

90002-MAZ-000

$6.84

11

BOLT, FLANGE (9X156)

90003-MAZ-000

$8.02

12

BOLT, SOCKET (10MM)

90005-MAZ-000

$2.26

13

BOLT, FLANGE (6X22) (NSHF)

90006-GHB-660

$1.80

14

BOLT, FLANGE (8X135)

90006-MM5-640

$6.74

15

BOLT, FLANGE (6X93)

90011-MM5-640

$5.75

16

BOLT, FLANGE (10X75)

90015-MM5-640

$5.22

17

BOLT, STUD (9X165)

90031-MGC-000

$20.80

18

BOLT B, STUD (9X165)

90032-MGC-000

$20.80

19

BOLT, SPECIAL (10MM)

90042-MM5-000

$6.39

20

BOLT, SEALING (20MM)

90048-ME5-000

$15.56

21

BOLT, FLANGE (8X115) (NOT AVAILABLE)

90069-MC7-000

Unavailable

22

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

23

WASHER, NEUTRAL

90443-MJ6-000

$1.92

24

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

25

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

26

O-RING (9X2.3)

91302-MGC-003

$2.31

27

O-RING (11.9X2.2)

91305-MGC-003

$2.89

28

BOLT, HEX. (6X14) BOLT, FLANGE (6X14)

92101-06014-0A

$1.49

29

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

30

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.06

31

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

32

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

33

BOLT, FLANGE (8X60)

95701-08060-00

$1.49

34

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

35

BOLT, FLANGE (8X95)

95701-08095-00

$1.97
