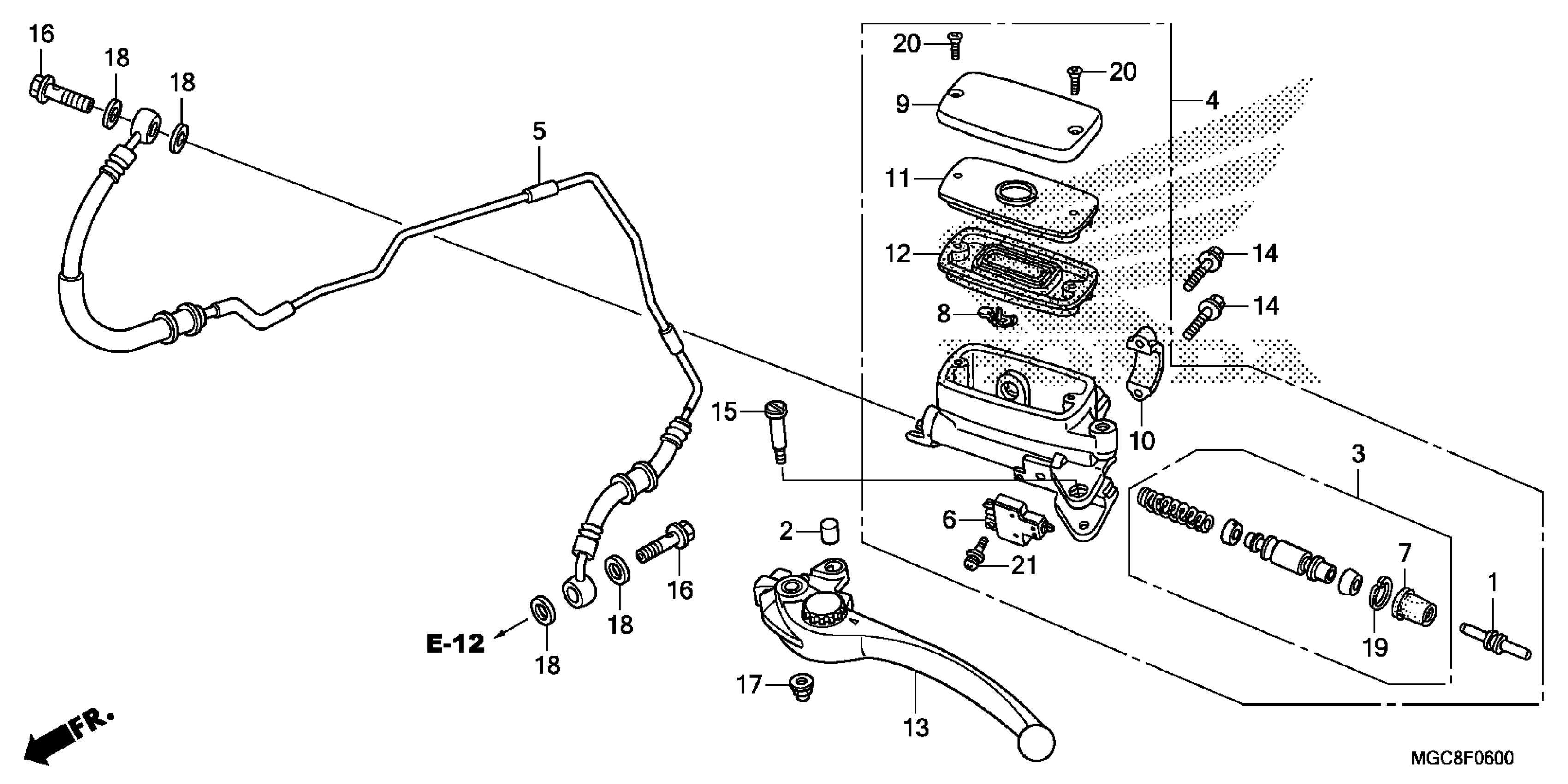

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 CLUTCH MASTER CYLINDER Diagram

ROD, PUSH

22884-MAT-E01

$17.39

BUSH

22885-MB0-006

$11.63

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$51.22

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN)

22890-MGC-JB1

$321.57

PIPE, CLUTCH

22900-MGC-JB1

$205.19

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.34

BOOT

45504-MAT-E01

$9.57

PROTECTOR

45512-MA6-006

$3.99

CAP, MASTER CYLINDER (NISSIN)

45513-MZ8-R41

$26.26

HOLDER, MASTER CYLINDER

45517-KR3-901

$19.04

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.57

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.57

LEVER ASSY., L. HANDLE

53180-MEJ-016

$45.68

BOLT, FLANGE (6X22) This part replaces 90010-GHB-660.

96001-06022-00

$1.13

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$8.46

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

NUT, CAP (6MM)

90201-415-000

$1.96

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

90158-MT7-000

$1.96

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22
