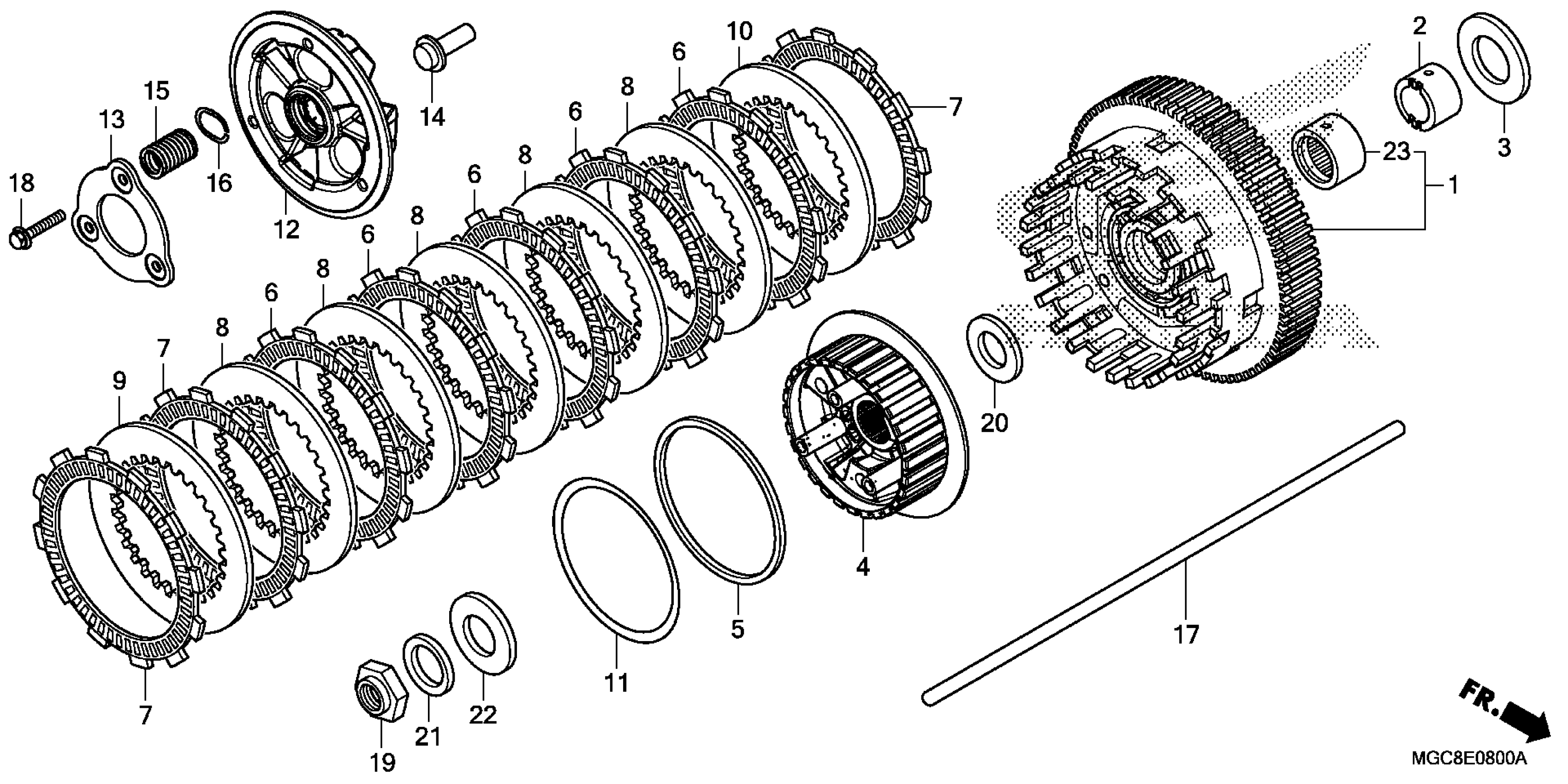

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER

22100-MEJ-000

$420.85

2

GUIDE, CLUTCH (OUTER)

22116-MS2-610

$36.34

3

COLLAR, DISTANCE

22117-MEJ-610

$9.36

4

CENTER, CLUTCH

22121-MJP-G51

$118.30

5

SEAT, JUDDER SPRING

22125-HP6-A00

$4.76

6

DISK, CLUTCH FRICTION

22201-MEL-000

$15.10

7

DISK B, CLUTCH FRICTION

22202-MJP-G51

$15.49

8

PLATE, CLUTCH This part replaces 22321-MN4-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH This part replaces 22321-374-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH

22322-MJP-G51

$15.48

10

PLATE B, CLUTCH (2.0)

22322-MN4-000

$16.72

11

SPRING, JUDDER

22325-MJP-G51

$43.11

12

PLATE, CLUTCH PRESSURE

22350-MJP-G51

$66.72

13

PLATE, SETTING

22361-MJP-G51

$24.15

14

PIECE, CLUTCH JOINT

22366-MAZ-000

$12.30

15

SPRING, CLUTCH

22401-MJP-G51

$5.57

16

SEAT, CLUTCH SPRING

22425-MJP-G51

$11.73

17

ROD, CLUTCH LIFTER

22850-MGC-JB0

$27.90

18

BOLT, FLANGE (6X35)

90050-MJP-G51

$2.05

19

NUT, LOCK (25MM)

90231-MCH-000

$6.78

20

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

21

WASHER, SPRING (25MM) (CHUO HATSUJO)

90432-MM8-003

$7.70

22

WASHER, THRUST (25X40X2)

90451-VM0-000

$5.72

23

BEARING, NEEDLE (40X47X31)

91024-MM5-003

$86.62
