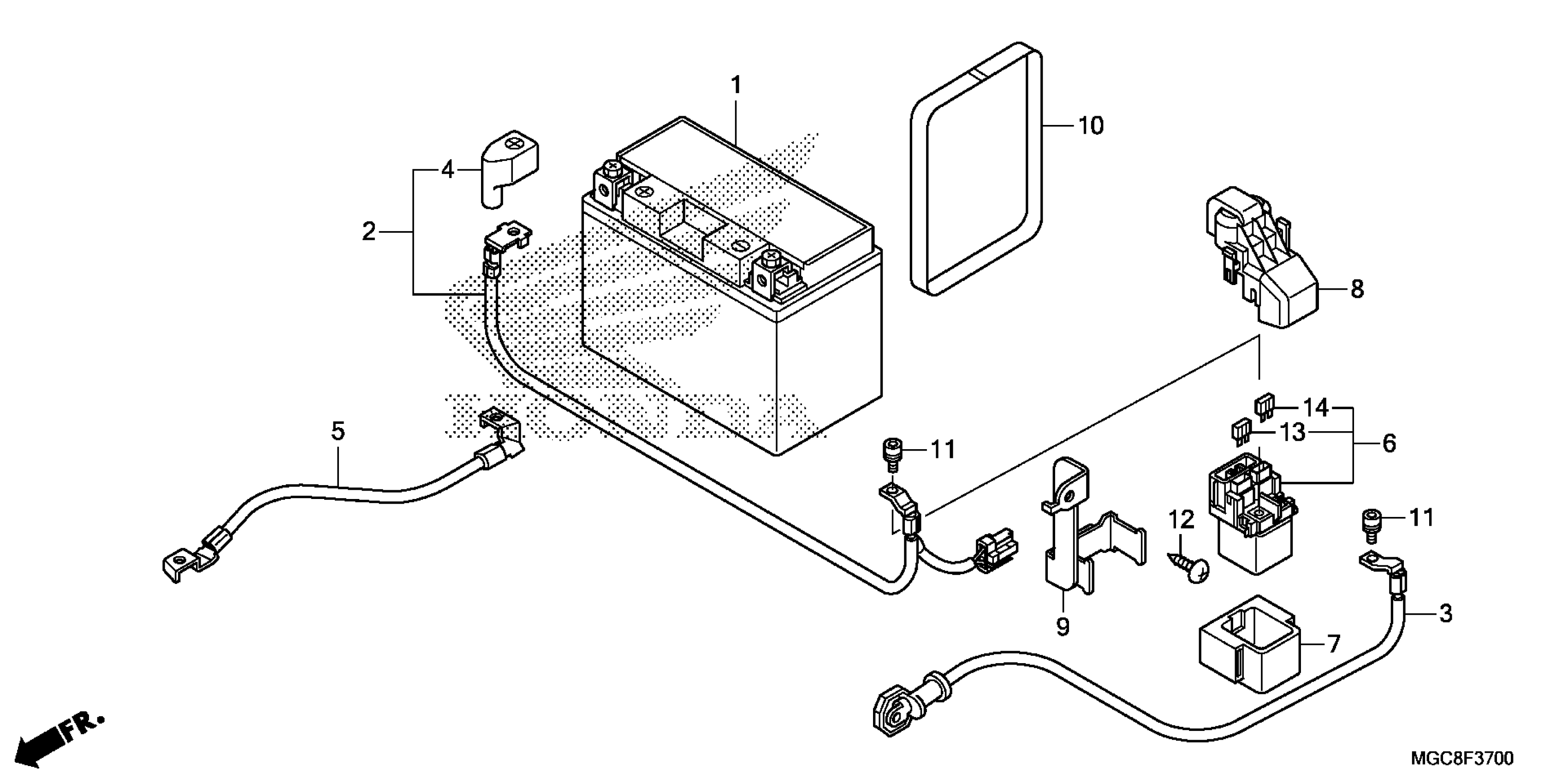

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 BATTERY Diagram

#

Description

Price

1

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D02AH.

31500-MCR-D03

$184.48

2

CABLE, STARTER BATTERY

32401-MGC-750

$33.12

3

CABLE, STARTER MOTOR

32402-MGC-000

$30.45

4

COVER, BATTERY TERMINAL

32411-MFL-D00

$4.78

5

CABLE, BATTERY GROUND

32601-MGC-000

$25.81

6

SWITCH ASSY., STARTER MAGNETIC

35850-MFL-003

$68.37

7

RUBBER, SHOCK

35856-KL8-740

$9.33

8

COVER, MAGNETIC SWITCH

35857-MFN-D00

$7.94

9

STAY, STARTER MAGNETIC

35865-MGC-000

$10.48

10

TAPE, BATTERY LIFT

50328-KSV-J00

$5.13

11

BOLT, SOCKET (5X9)

90111-MR5-000

$2.38

12

SCREW, TAPPING (6X16) (NOT AVAILABLE)

93903-26280

Unavailable

13

FUSE, MINI (20A)

98200-42000

$1.10

14

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.59
