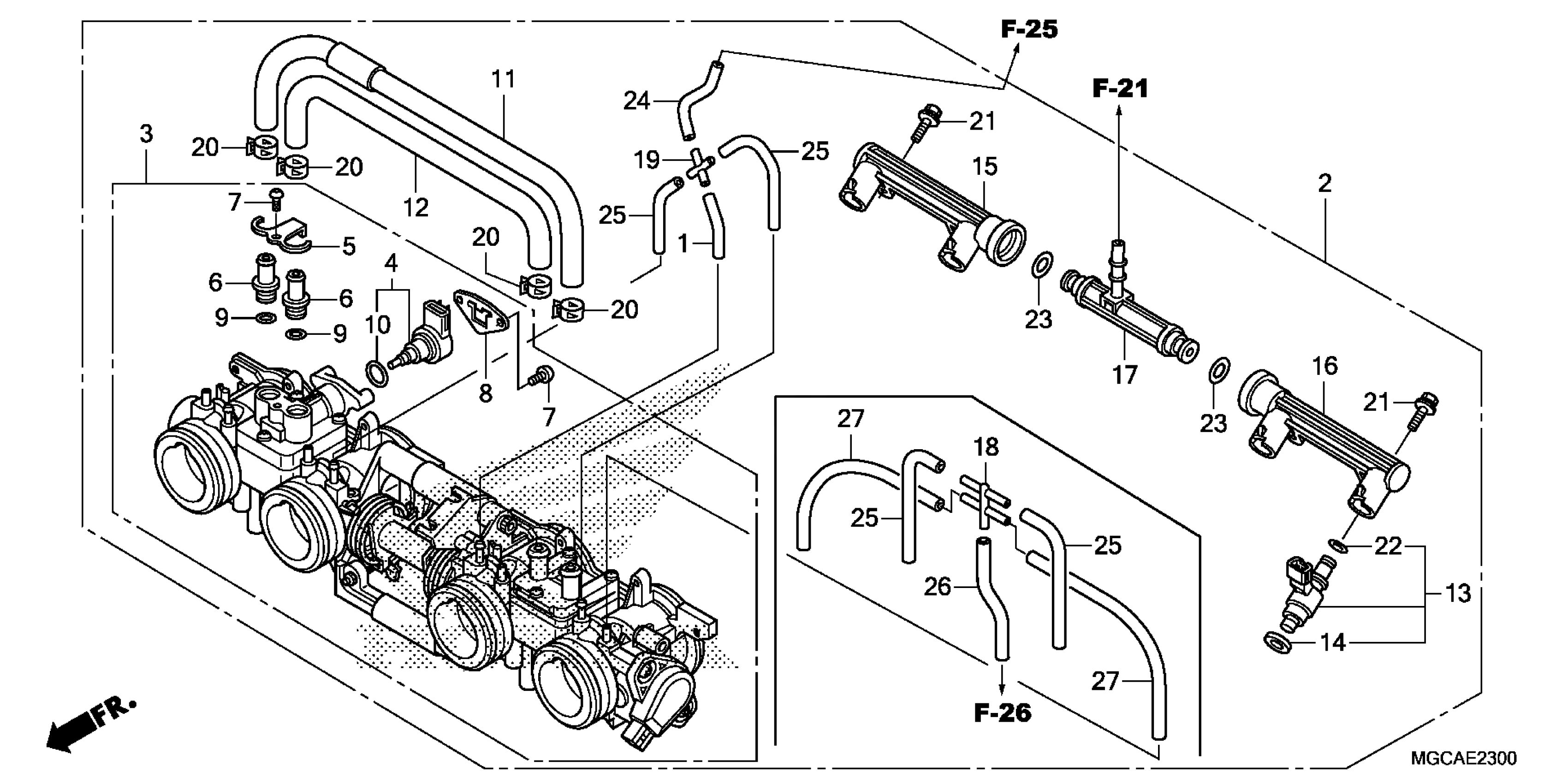

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 THROTTLE BODY Diagram

#

Description
Price

1

TUBE

16197-MGC-003

$3.68

2

BODY ASSY., THROTTLE (GQ8FB A)

16400-MGC-A22

$2,363.31

3

BODY ASSY., THROTTLE

16401-MGC-A22

$1,697.43

4

MOTOR ASSY.

16430-MFJ-D01

$142.65

5

PLATE, JOINT

16431-MFJ-D01

$7.65

6

JOINT, IDLE AIR CONTROL VALVE

16432-MFG-D01

$7.28

7

SCREW, TORX

16433-HN8-A61

$0.34

8

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$9.56

9

O-RING

16434-MFJ-D01

$2.81

10

O-RING (17.8X1.9)

16435-MFJ-D01

$2.81

11

TUBE (9X330)

16440-MGC-003

$13.40

12

TUBE

16441-MFP-003

$10.68

13

INJECTOR ASSY., FUEL

16450-MGC-D21

Unavailable

14

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.07

15

PIPE, FUEL (A)

16610-MGC-D21

$56.87

16

PIPE, FUEL (B)

16620-MGC-D21

$56.87

17

T-JOINT, FUEL

16630-MGC-003

$44.41

18

JOINT, FIVE-WAY

17201-MCJ-003

$7.93

19

JOINT, FOUR-WAY

17201-MCZ-003

$6.74

20

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.12

21

BOLT, SHOULDER

90021-MGZ-D02

$2.68

22

O-RING (6.3X2.2)

91301-GGL-J01

$9.60

23

O-RING (7.47X3.6)

91301-PLC-000

$2.96

24

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77

25

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77

26

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77

27

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77
