Description

Price

1

CASE, DRIVE CHAIN

40510-MGC-000

$62.34

2

CHAIN, DRIVE (DID50VA11-120ZB) (DAIDO) (STANDARD LINK 116L)

40540-MFL-003

$259.88

2

CHAIN, DRIVE (RK50HFOZ6-120L) (RK EXCEL) (STANDARD LINK 116L)

40540-MFL-005

$259.88

3

BOLT, CHAIN ADJUSTING

40542-MGC-N20

$7.38

4

ADJUSTER, CHAIN

40543-MGC-N20

$25.90

5

MASTER LINK (RK EXCEL)

40531-MFL-005

$11.41

5

MASTER LINK (DAIDO)

40541-MFL-003

$7.87

6

COLLAR, L. FR. WHEEL SIDE (BOTH SIDES)

44312-MCE-950

$9.91

7

BOLT, SWINGARM PIVOT

52101-MGC-000

$40.50

8

COLLAR, SWINGARM PIVOT

52102-MGC-D30

$19.57

9

COLLAR B, PIVOT

52106-MGC-D30

$29.25

10

SLIDER, CHAIN

52170-MGC-000

$49.40

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

12

SWINGARM SUB-ASSY., RR.

52200-MGC-N20

$868.07

13

SCREW, PAN (5X10)

90104-ML7-920

$2.80

14

BOLT, FLANGE (6MM)

90111-187-000

$6.94

15

NUT, FLANGE (18MM)

90305-MB4-003

$11.49

16

BEARING, NEEDLE

91071-MR7-003

$23.57

17

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.53

18

DUST SEAL (28X37X4)

91202-MR7-003

$6.06

19

CIRCLIP (OUTER) (10MM)

94511-10000

$0.85

20

CIRCLIP (INNER) (37MM)

94520-37000

$2.46

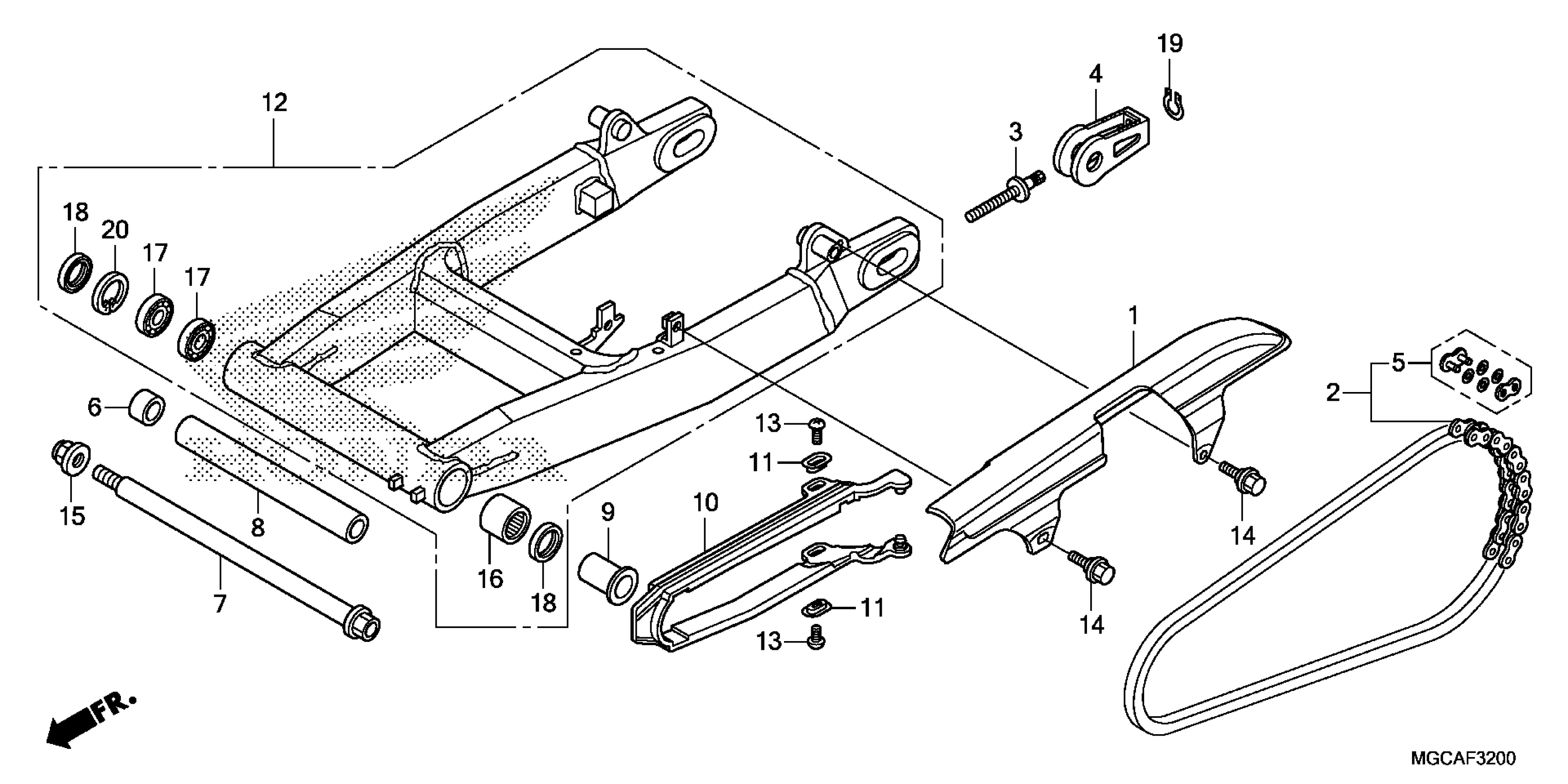

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 SWINGARM Diagram
