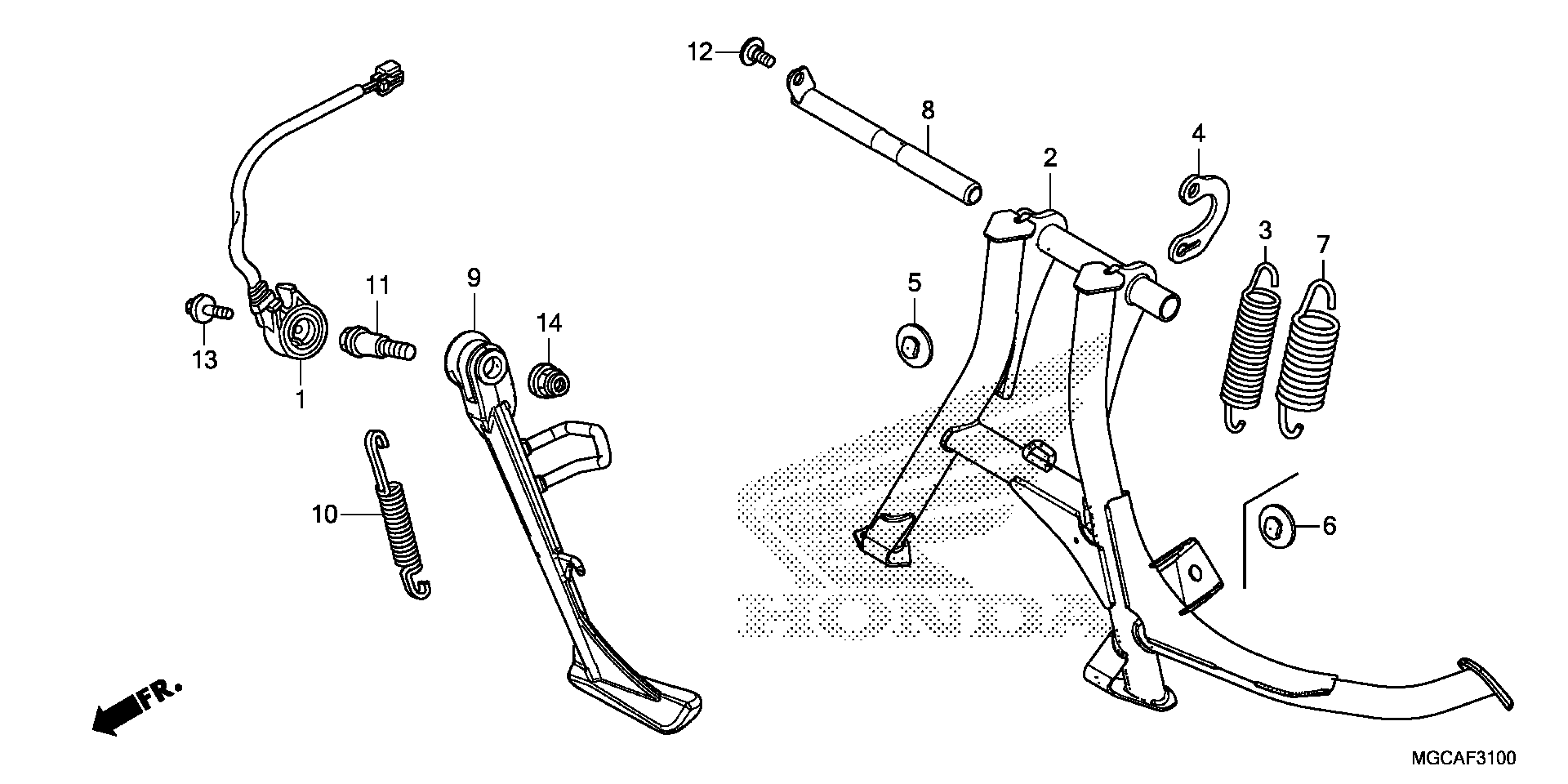

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 STAND Diagram

SWITCH ASSY., SIDE STAND

35700-MGC-D31

$80.49

STAND, MAIN (COO)

50500-MGC-306

$210.74

SUB-SPRING, MAIN STAND

50520-MGC-N20

$6.69

PLATE, MAIN STAND SPRING

50523-MGC-N20

$7.39

RUBBER, STAND STOPPER

50524-MFP-N00

$14.82

SPRING, MAIN STAND

50525-MGC-N20

$10.64

PIPE, MAIN STAND PIVOT

50526-MGC-N20

$19.13

BAR, SIDE STAND (COO)

50530-MGC-315

$141.93

SPRING, SIDE STAND

50540-MFL-000

$6.58

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.78

BOLT, SPECIAL (6MM)

90109-MEJ-000

$4.15

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

NUT, SIDE STAND

90203-MF9-710

$3.67
