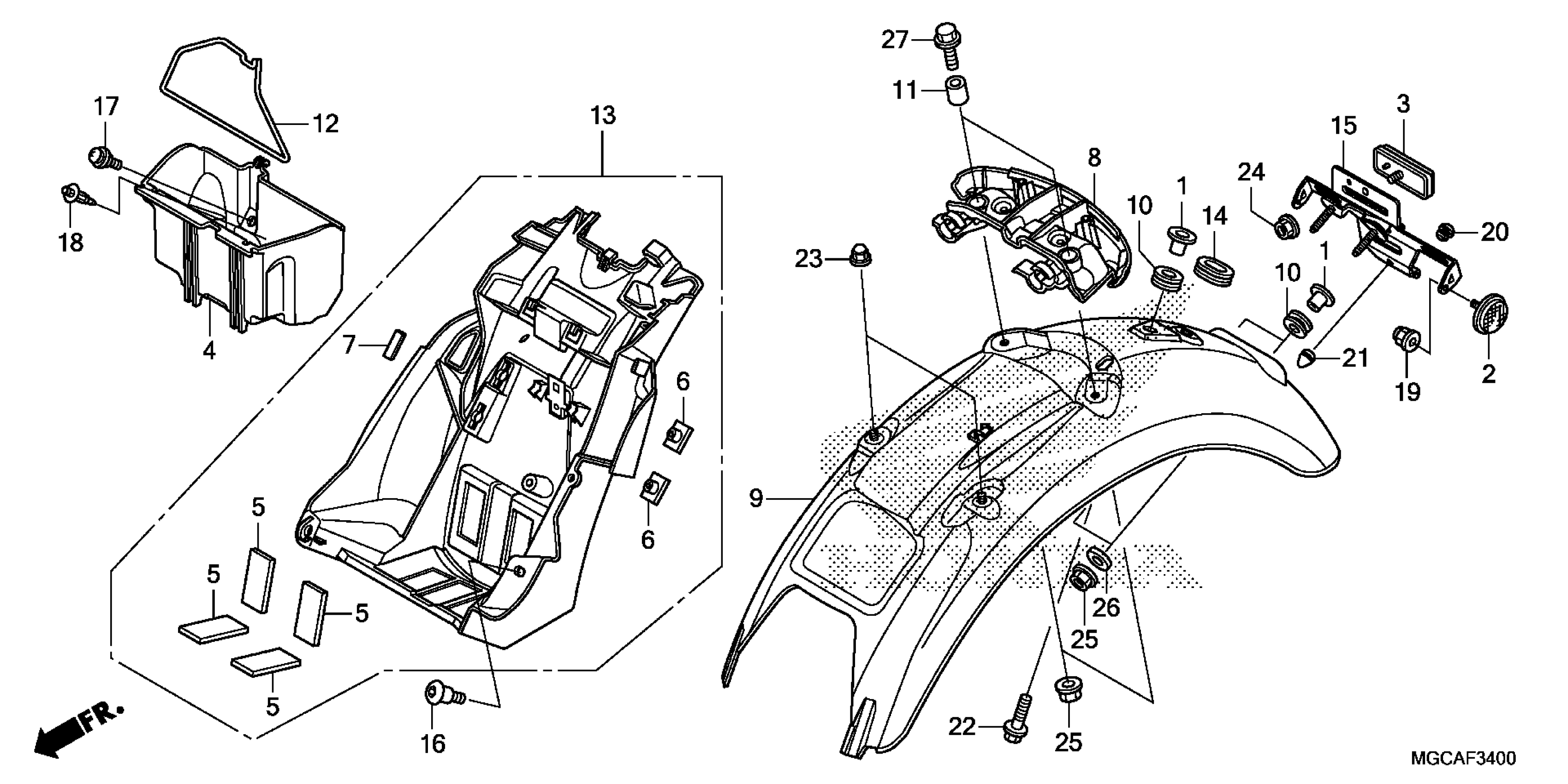

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 REAR FENDER Diagram

COLLAR, FUEL TANK SETTING

17626-KA4-700

$6.71

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

COVER, BATTERY

50330-MGC-000

$33.30

RUBBER, BATTERY (A)

50384-045-670

$2.67

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

RUBBER, PROTECTOR

64121-MBG-000

$2.03

COVER, SEAT LOCK

77210-MGC-000

$21.03

FENDER A, RR.

80100-MGC-A21

$358.70

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.94

COLLAR A, RR. FENDER

80102-MGC-D30

$7.70

BAND, TOOL

80123-GN5-900

$2.67

FENDER B, RR.

80200-MGC-N20

$96.25

GROMMET, AIR CLEANER HOUSING

83551-240-300

$3.24

BRACKET, NUMBER PLATE

84701-MGC-A20

$69.82

SCREW, PAN (6X14)

90106-MM4-000

$3.89

BOLT, FLANGE (6MM)

90113-GS6-010

$2.88

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

PLUG, HOLE

90852-446-630

$2.56

PLUG, CONE TYPE

90899-422-610

$1.89

BOLT-WASHER (6X30)

93404-06030-08

$3.10

NUT, CAP (6MM)

94021-06070-0S

$1.62

NUT, FLANGE (5MM)

94050-05070

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

BOLT, FLANGE (6X35)

95701-06035-08

$1.79
