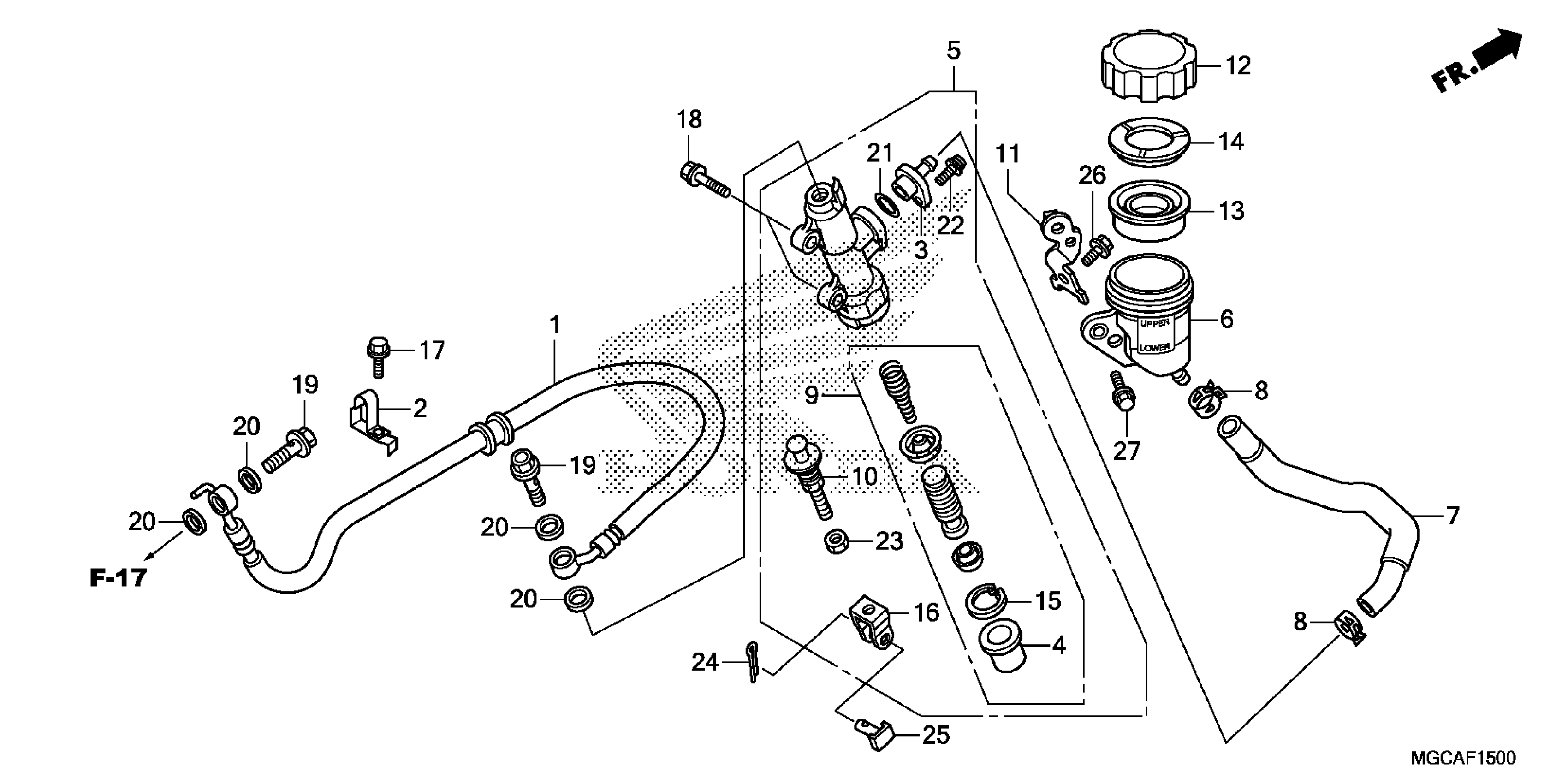

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 REAR BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MGC-N41

$52.31

2

CLAMP, RR. BRAKE HOSE

43315-MGC-000

$10.21

3

CONNECTOR

43503-HB5-006

$9.95

4

BOOT

43504-MB2-006

$10.04

5

MASTER CYLINDER SUB-ASSY., RR. (NISSIN)

43510-MGC-006

$220.89

6

CUP, MASTER CYLINDER OIL

43511-MGE-016

$22.52

7

HOSE, RR. BRAKE MASTER CYLINDER

43512-MGC-006

$32.93

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

9

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

10

ROD, PUSH

43530-KV3-701

$19.84

11

STAY, OIL CUP

43555-MGC-000

$6.21

12

CAP, OIL CUP

45513-MEL-D21

$18.42

13

DIAPHRAGM

45520-300-000

$9.05

14

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

15

CIRCLIP

46182-MEL-D21

$1.93

16

JOINT, BRAKE ROD

46504-MAH-671

$14.30

17

BOLT, FLANGE (6X18)

90112-MEL-000

$1.77

18

BOLT, FLANGE (6X25)

90131-124-000

$1.49

19

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

O-RING (14.8X2.4)

91212-422-006

$2.56

22

SCREW-WASHER (4X12)

93893-04012-07

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

23

NUT, HEX. (8MM)

94002-08000-0S

$1.49

24

PIN, COTTER (2.0X12)

94201-20120

$1.49

25

PIN D, JOINT

95015-54000

$4.24

26

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
