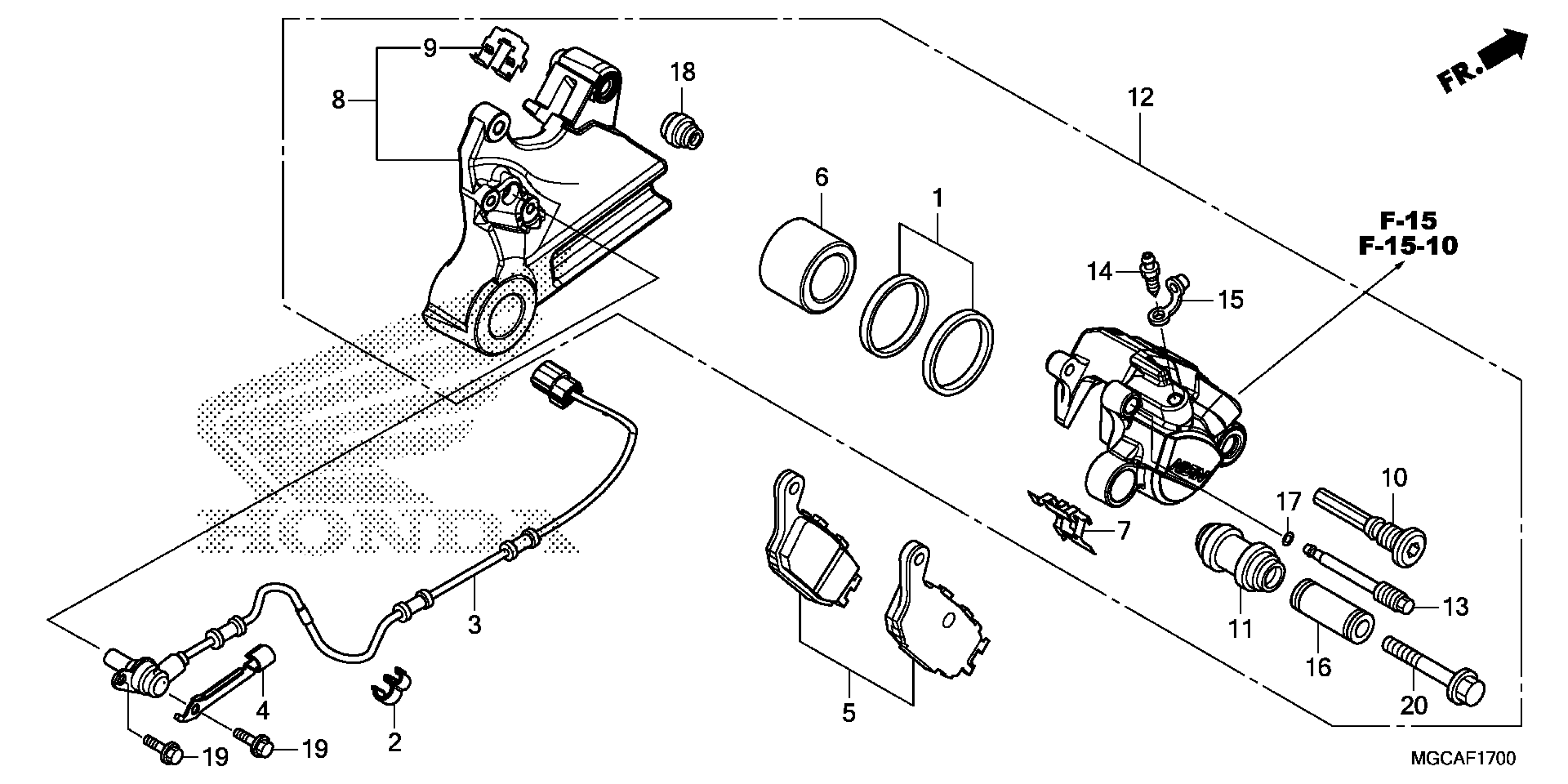

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06451-443-405

$13.23

CLAMP, PIPE

11152-KS4-003

$7.13

SENSOR, RR. WHEEL SPEED

38510-MGC-003

$226.52

CLAMP, SENSOR WIRE

38515-MGC-000

$20.77

PAD SET, RR. This part replaces 43105-MW0-415.

43105-MW0-425

$53.45

PAD SET, RR.

43105-MW0-425

$53.45

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-MBB-006

$6.19

BRACKET, RR.

43110-MGC-N41

$173.52

RETAINER

43112-MV9-016

$10.65

BOLT, PIN

43131-KW3-006

$10.29

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR. (NISSIN) (MSDS)

43150-MGC-N42

$343.79

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (6X12)

90123-MCH-A00

$1.49

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07
