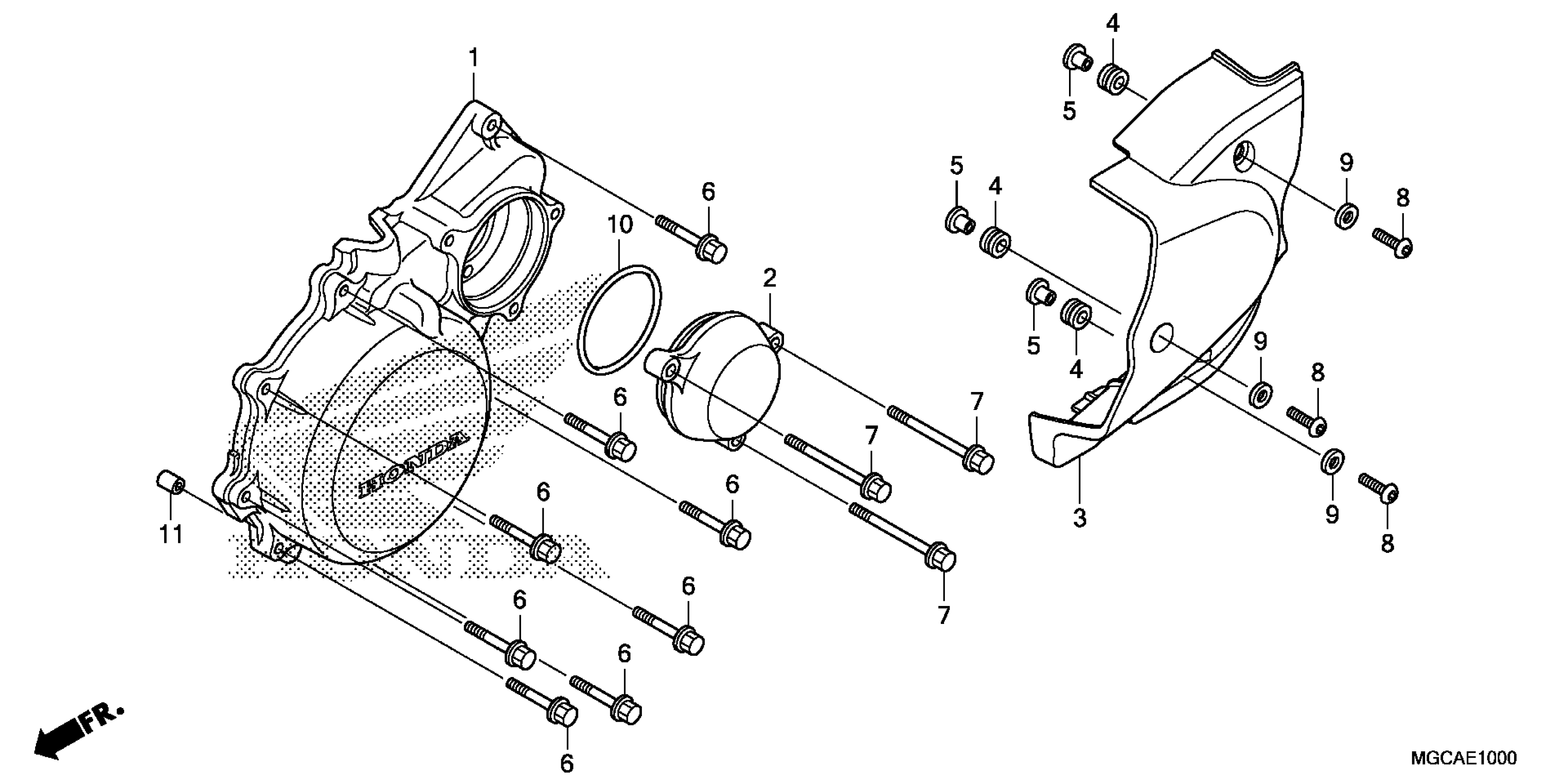

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11321-MGC-N00

$167.61

CAP, L. COVER

11340-MGC-N00

$64.61

COVER, L. SIDE

11661-MGC-A40

$321.33

RUBBER, PIVOT COVER (LOWER)

64386-MS2-000

$5.31

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

BOLT, FLANGE (6X60) (NSHF)

90006-GHB-750

$1.97

BOLT, SPECIAL (6X17)

90085-MGC-920

$2.57

WASHER, PLAIN (6MM)

90525-428-900

$1.92

O-RING (58X2.5)

91303-MEJ-003

$5.74

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
