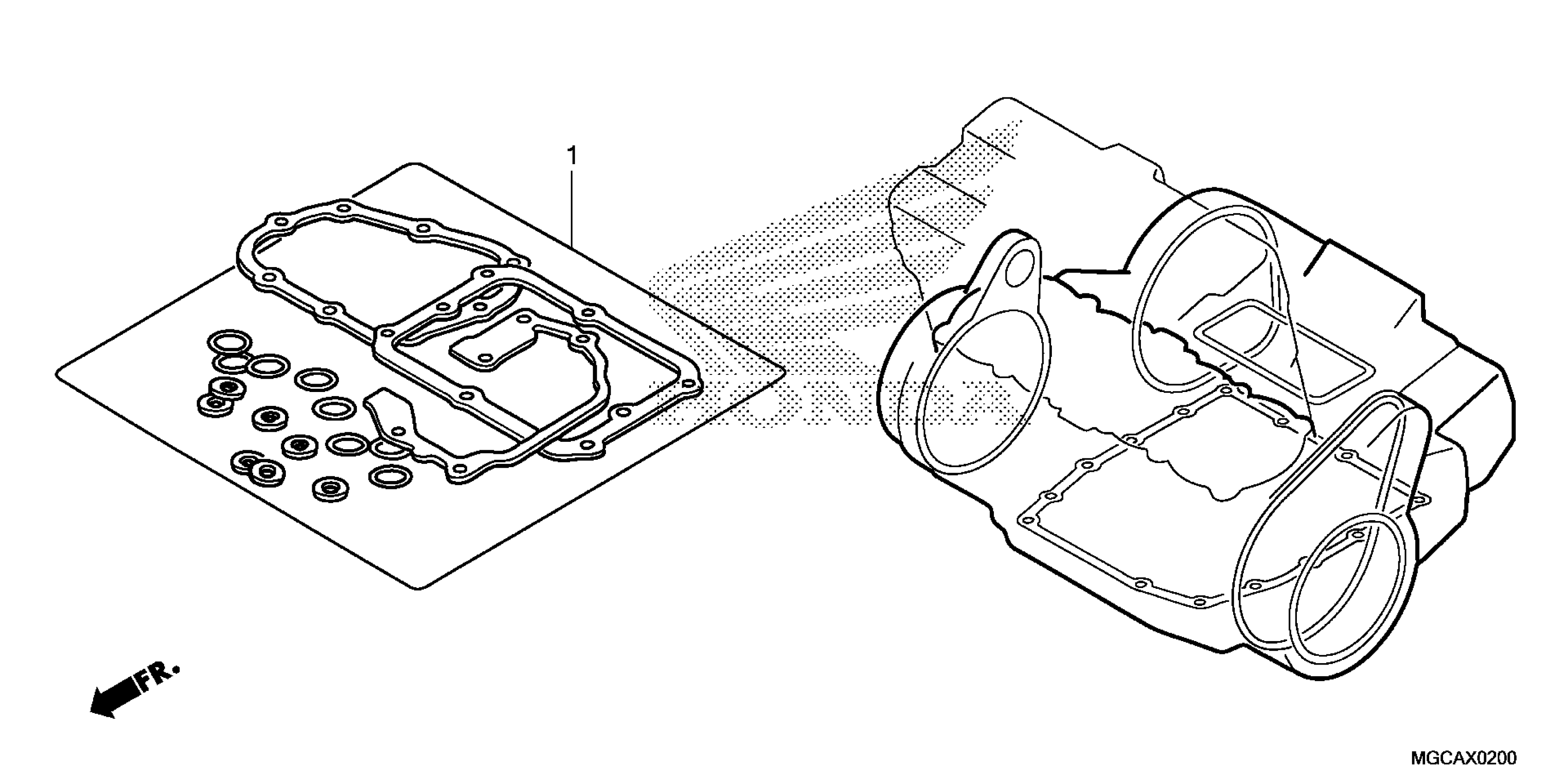

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 GASKET KIT B Diagram

GASKET KIT B

06112-MGC-A40

$90.75

GASKET, L. SIDE HOLDER

11394-MGC-N20

$8.69

GASKET, OIL STRAINER

15154-MGC-003

$11.95

GASKET, SLAVE CYLINDER

22862-MGJ-D00

$4.98

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

WASHER, NEUTRAL

90443-MJ6-000

$1.92

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

O-RING (9X2.3)

91302-MGC-003

$2.31

O-RING (58X2.5)

91303-MEJ-003

$5.74

O-RING (6X2)

91303-MGC-003

$2.31

O-RING (14.5X2.4) (ARAI)

91303-MG2-792

$3.21

O-RING (11.9X2.2)

91305-MGC-003

$2.89

O-RING (9.6X2.6)

91306-MGC-003

$2.31

O-RING (16X1.9)

91306-329-000

$2.92

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

$6.34

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.51

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49
