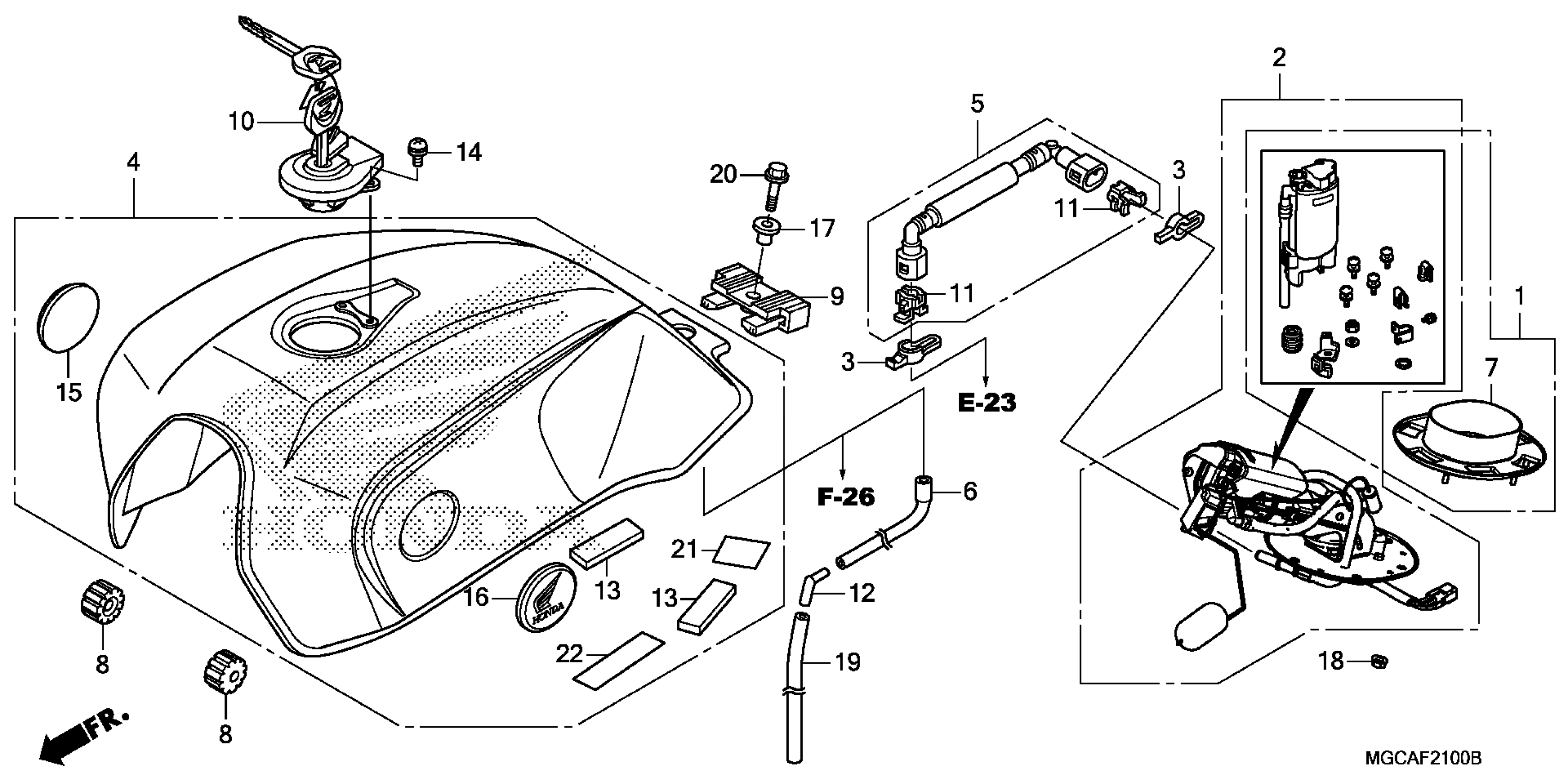

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 FUEL TANK@FUEL PUMP Diagram

FILTER ASSY., FUEL

16011-MGC-010

$348.18

PUMP ASSY., FUEL (MSDS)

16700-MGC-N21

$681.62

DAMPER, CONNECTOR

16719-MFJ-D00

$2.92

TANK SET, FUEL (TYPE3) (WL)

17520-MGC-N40ZC

$1,386.30

HOSE, FUEL FEED

17526-MGC-003

$110.93

GASKET, BASE

17574-MFA-D00

$25.87

CUSHION, FR. FUEL TANK

17611-KE8-000

$4.22

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

CUSHION, RR. FUEL TANK (NOT AVAILABLE)

17613-KV3-700

$15.51

CAP, FUEL FILLER This part replaces 17620-MGC-003.

17620-MGC-013

$118.28

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.40

RUBBER, BATTERY MOUNTING

31511-088-740

$2.72

SCREW-WASHER (4X6)

45319-634-003

$2.48

BADGE, R. PRODUCT

64503-MFL-000

$38.45

BADGE, L. PRODUCT

64508-MFL-000

$38.45

COLLAR (8X12)

80101-KB7-600

$5.90

NUT, CAP (6MM)

90213-PH3-000

$5.95

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

TAPE B, TANK GUARD

17528-KCZ-930

$3.39

FILM, SIDE COVER GUARD

17535-KBH-300

$5.67
