Description

Price

1

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

1

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

2

AXLE, FR. WHEEL

44301-MGC-000

$63.77

3

COLLAR, R. FR. WHEEL SIDE

44311-MGC-D30

$12.10

4

COLLAR, L. FR. WHEEL SIDE

44312-MGC-000

$13.56

6

COLLAR, FR. AXLE DISTANCE

44620-MBW-E10

$14.79

7

WHEEL SUB-ASSY., FR. (COO)

44650-MGC-307

$784.85

8

TIRE, FR. This part replaces 44711-MGC-003.

44711-MGC-013

$200.69

8

TIRE, FR. This part replaces 44711-MGC-014.

44711-MGC-034

$190.71

8

TIRE, FR. This part replaces 44711-MGC-024.

44711-MGC-034

$190.71

9

WEIGHT, BALANCE (10G)

44721-MGC-003

$4.41

9

WEIGHT, BALANCE (15G)

44722-MGC-003

$5.25

9

WEIGHT, BALANCE (20G)

44723-MGC-003

$5.25

10

SPRING, FR. DISK

45223-MGC-003

$6.28

11

COLLAR, FR. DISK

45225-MGC-000

$12.78

12

WASHER, FR. DISK

45226-MGC-000

$4.90

13

DISK, FR. BRAKE

45251-MGC-N01

$381.18

14

BOLT, FR. AXLE

90105-MBT-610

$5.76

15

BOLT, TORX (6X18)

90105-MGC-000

$4.43

16

BEARING, RADIAL BALL (20X45X12)

91052-MBW-E11

$13.43

17

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

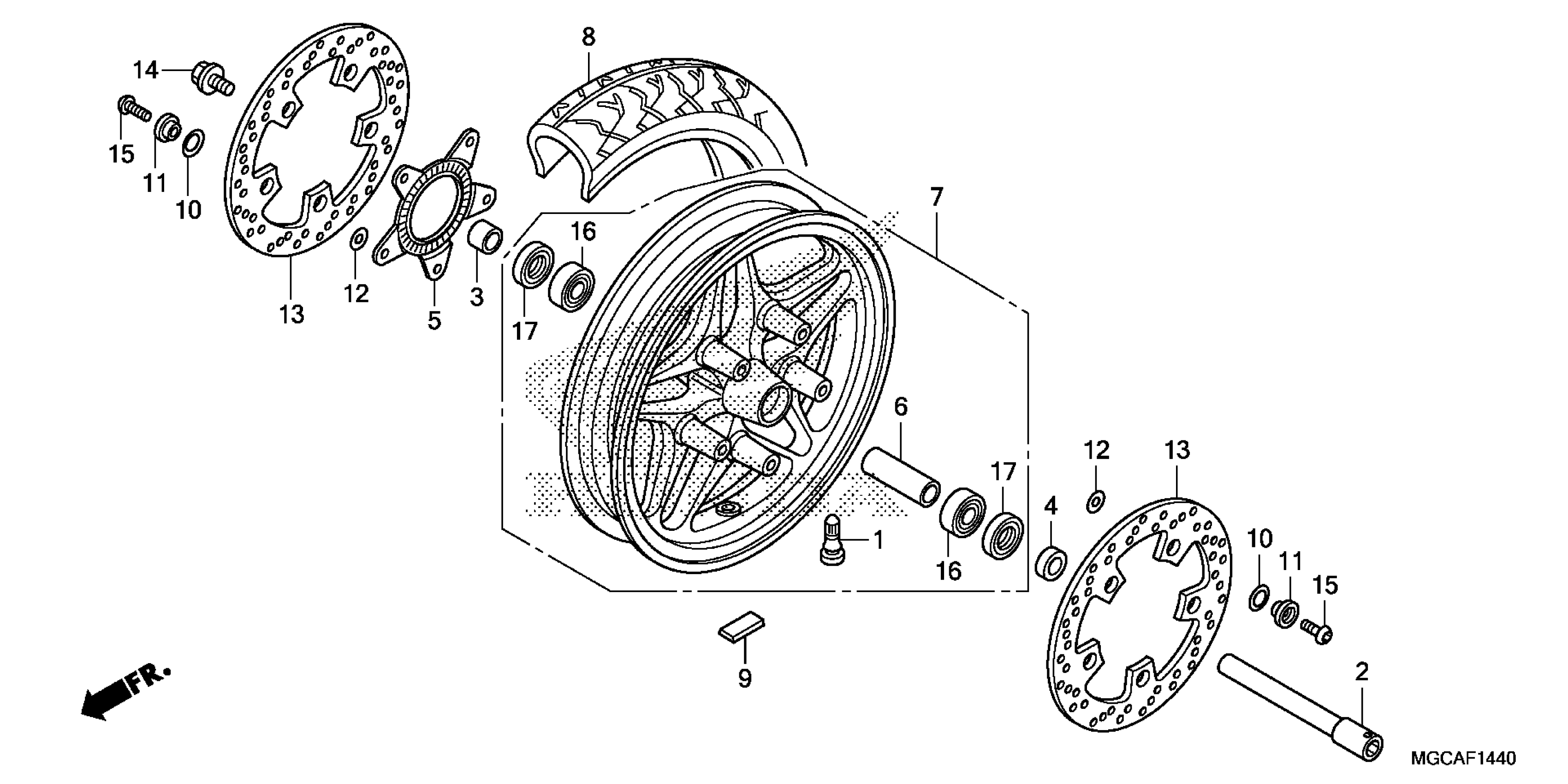

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 FRONT WHEEL Diagram
