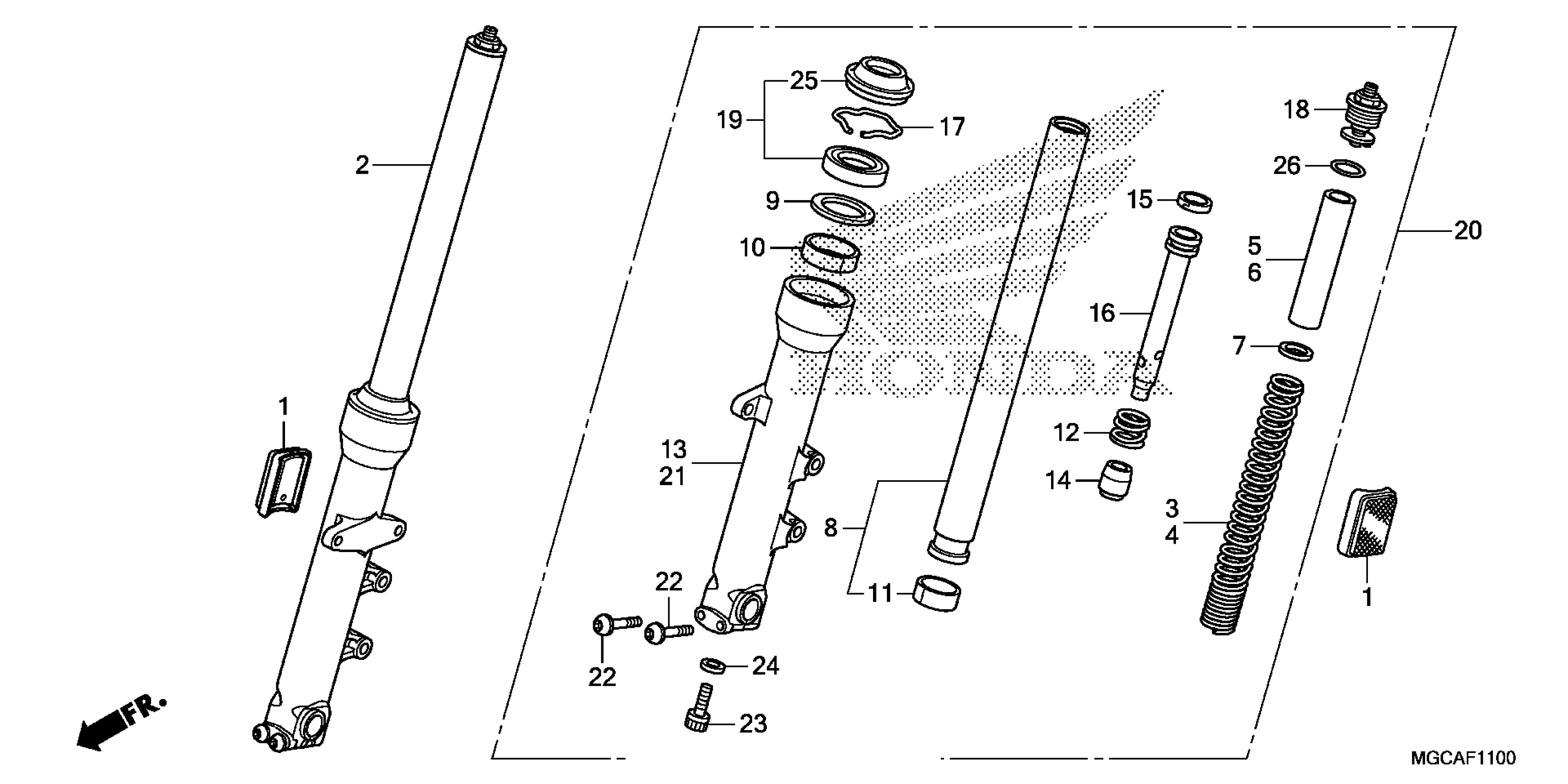

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. SIDE REFLEX

33740-MEG-671

$13.44

2

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MGC-307

$734.07

3

SPRING, FR. FORK (R.)

51401-MGC-003

$84.41

4

SPRING, FR. FORK (R.)

51401-MGC-003

$84.41

5

COLLAR, SPRING (SHOWA) (R.)

51402-KV3-701

$23.53

6

COLLAR, SPRING (SHOWA) (R.)

51402-KV3-701

$23.53

7

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.58

8

PIPE, FR. FORK

51410-MGC-003

$369.59

9

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

10

BUSH, GUIDE

51414-MFJ-A51

$6.93

11

BUSH, SLIDER

51415-MFJ-A51

$6.93

12

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.62

13

CASE, R. (LOWER)

51420-MGC-D41

$378.63

14

PIECE, OIL LOCK (SHOWA)

51432-KV3-701

$16.59

15

RING, PISTON (SHOWA)

51437-MM5-003

$5.07

16

PIPE, SEAT

51440-MGC-003

$44.40

17

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

18

BOLT ASSY., FR. FORK (SHOWA)

51450-MGC-003

$55.69

19

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$20.90

19

SEAL SET, FR. FORK

51490-MKA-D81

$20.90

20

FORK ASSY., L. FR. (COO) (SHOWA)

51500-MGC-307

Unavailable

21

CASE, L. (LOWER)

51520-MGC-D41

$378.63

22

BOLT, SOCKET (8X45)

90109-MBT-611

$3.50

23

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

24

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

25

DUST SEAL (SHOWA)

91251-MKA-D81

$7.88

25

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$7.88

26

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.59
