Description

Price

1

PIPE, EX.

18150-MGC-D30

$2,347.89

2

GASKET, EX. PIPE

18291-MM5-860

$5.17

3

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

4

COVER, TAIL (COO)

18305-MGC-305

$85.82

5

MUFFLER

18310-MGC-D30

$1,240.34

5

MUFFLER This part replaces 18310-MGC-305.

18310-MGC-D30

$1,240.34

6

RUBBER, PROTECTOR MOUNTING

18357-MCG-000

$2.92

7

BAND, L. RR. MUFFLER (R. SIDE)

18376-413-000

$36.70

8

GASKET, RR. MUFFLER

18392-MG7-750

$13.66

9

RUBBER, MUFFLER MOUNTING

18421-MBT-D21

$14.20

10

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$18.48

11

COLLAR, MUFFLER MOUNTING

18422-MGC-N20

$8.23

12

COLLAR, EX. PIPE MOUNTING

18423-MGC-N20

$6.38

13

COVER, MUFFLER

18425-MGC-000

$214.85

14

SENSOR, OXYGEN (NGK)

36531-MGC-N21

$262.26

15

BOLT, SPECIAL FLANGE (8X50)

90109-MZ5-000

$6.49

16

SCREW, SPECIAL (6X14)

90114-MCJ-000

$2.51

17

BOLT, SPECIAL (5X8)

90114-MFP-N00

$4.75

18

BOLT, SPECIAL FLANGE (8X40)

90122-MM2-000

$4.28

19

NUT, CAP (8MM)

90304-ME1-670

$5.94

20

WASHER (8.5X38)

90501-MGC-N20

$3.25

21

WASHER (8.5X26)

90504-ME4-000

$3.26

22

NUT, FLANGE (8MM)

94050-08040

$1.49

23

BOLT, FLANGE (8X38)

95701-08038-00

$1.51

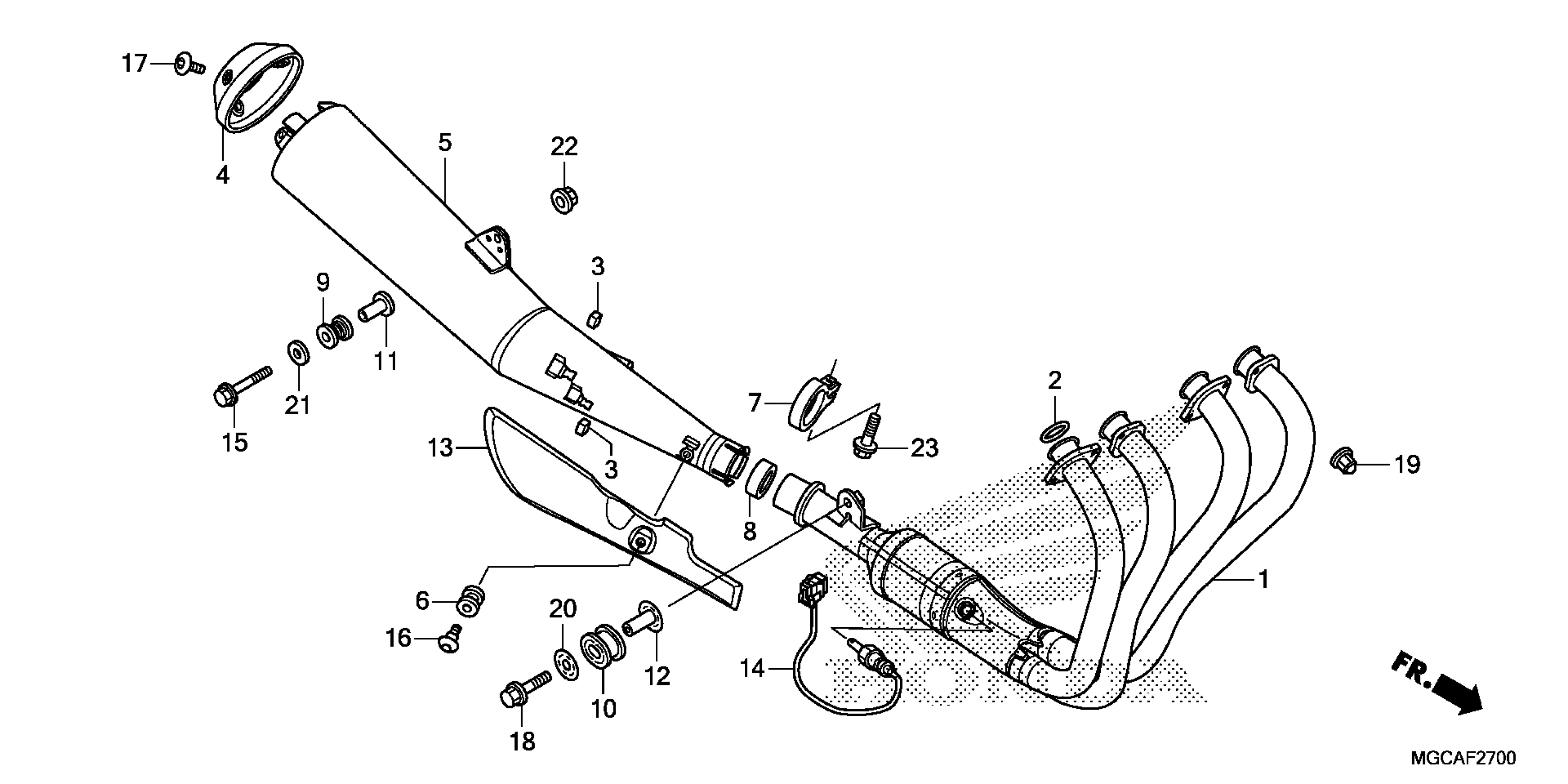

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 EXHAUST MUFFLER (1) Diagram
