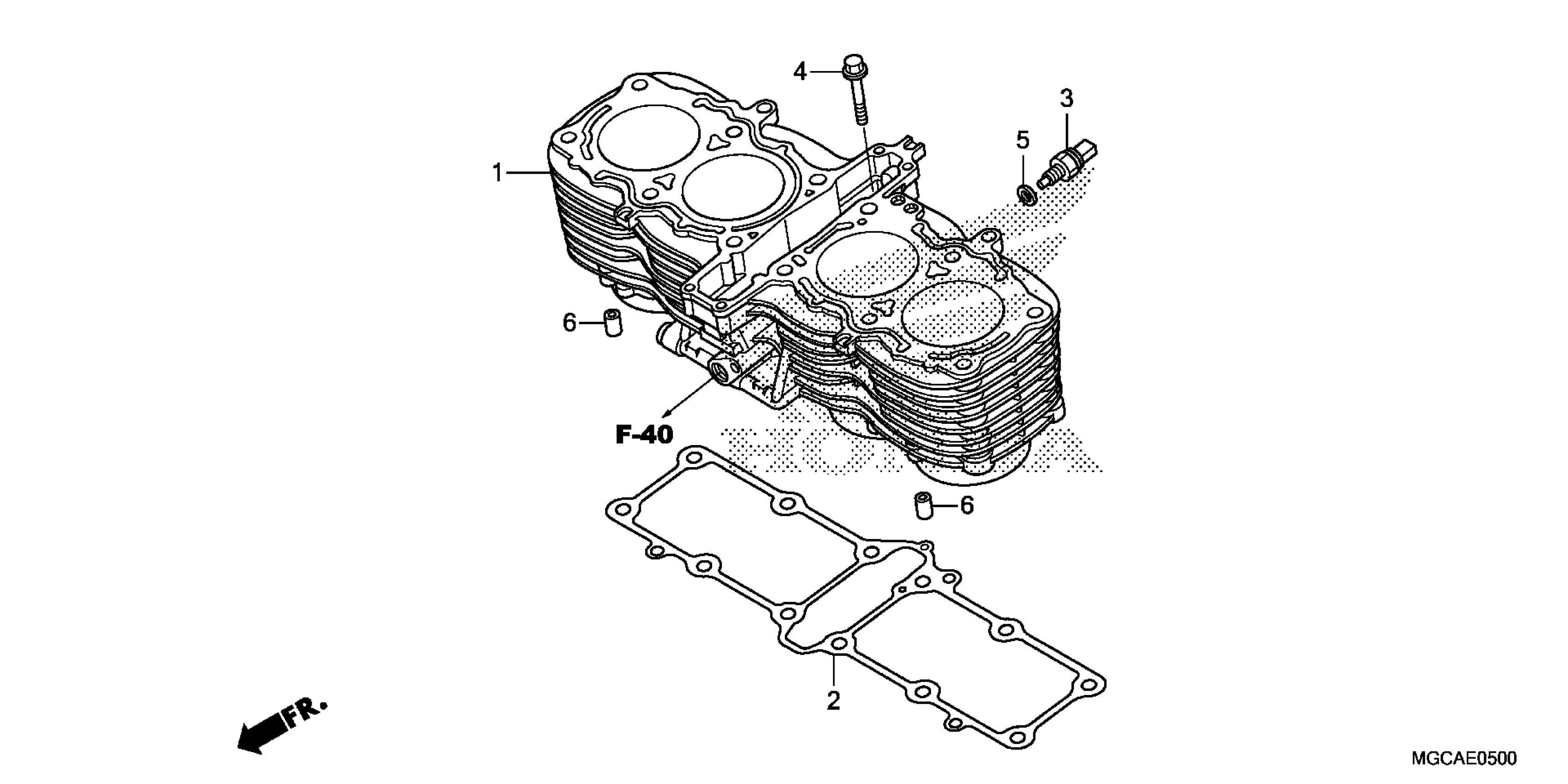

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12100-MGC-920

$1,497.22

2

GASKET, CYLINDER

12191-MGC-003

$70.59

3

SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)

37750-KPH-701

$46.23

4

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.89

5

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.80

6

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.80
