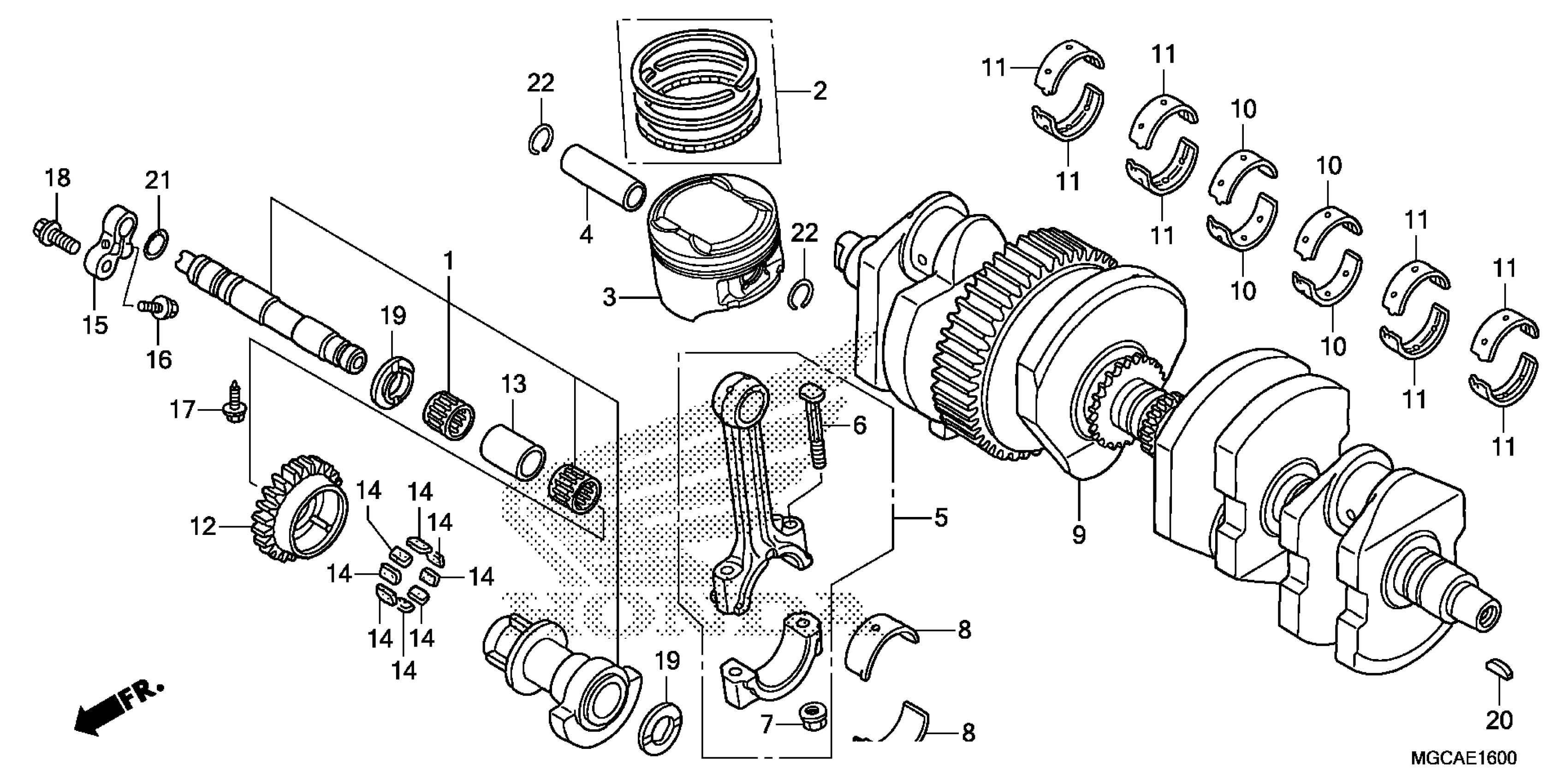

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 CRANKSHAFT@PISTON Diagram

#

Description
Price

1

BALANCER SET

06130-MGC-305

$256.31

2

RING SET, PISTON (STD)

13011-MGC-000

$57.93

2

RING SET, PISTON (0.25) | (Optional).

13021-MGC-000

$57.93

3

PISTON

13101-MGC-000

$107.84

3

PISTON (0.25) | (Optional).

13102-MGC-000

$107.84

4

PIN, PISTON

13111-KCZ-000

$18.79

5

ROD ASSY., CONNECTING

13210-MGC-000

$271.08

6

BOLT, CONNECTING ROD

13213-MAT-003

$9.49

7

NUT, CONNECTING ROD

13215-ML7-000

$3.89

8

BEARING A, CONNECTING ROD (BROWN)

13224-MGC-003

$15.34

8

BEARING B, CONNECTING ROD (GREEN)

13225-MGC-003

$16.02

8

BEARING C, CONNECTING ROD (YELLOW)

13226-MGC-003

$15.34

9

CRANKSHAFT

13300-MGC-N20

$1,536.28

10

BEARING A, MAIN (14MM) (BROWN)

13311-MM5-003

$14.72

10

BEARING B, MAIN (14MM) (GREEN)

13312-MM5-003

$14.72

10

BEARING C, MAIN (14MM) (YELLOW)

13313-MM5-003

$14.72

10

BEARING D, MAIN (14MM) (PINK)

13314-MM5-003

$14.72

11

BEARING A, MAIN (17MM) (GREEN)

13315-MJ0-010

$10.04

11

BEARING B, MAIN (17MM) (YELLOW)

13316-MJ0-010

$10.16

11

BEARING C, MAIN (17MM) (PINK)

13317-MJ0-010

$10.16

11

BEARING D, MAIN (17MM) (BROWN) (DAIDO)

13318-MM5-004

$14.72

12

GEAR, BALANCER (23T)

13421-MGC-N21

$76.57

13

COLLAR, DISTANCE

13433-MM5-000

$15.08

14

RUBBER, DAMPER

13435-MM5-000

$2.39

15

HOLDER, BALANCER SHAFT

13436-MM5-000

$55.44

16

BOLT, FLANGE (6X18)

90002-MCZ-000

$1.49

17

BOLT, SPECIAL (6X18)

90004-MM5-000

$2.23

18

BOLT, FLANGE (8X25)

90022-MFA-D00

$1.89

19

WASHER, BALANCER SIDE (A)

90457-MM5-000

$5.38

20

KEY, SPECIAL WOODRUFF (25X14)

90741-MAZ-000

$3.08

21

O-RING (16X1.9)

91306-329-000

$2.92

22

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
