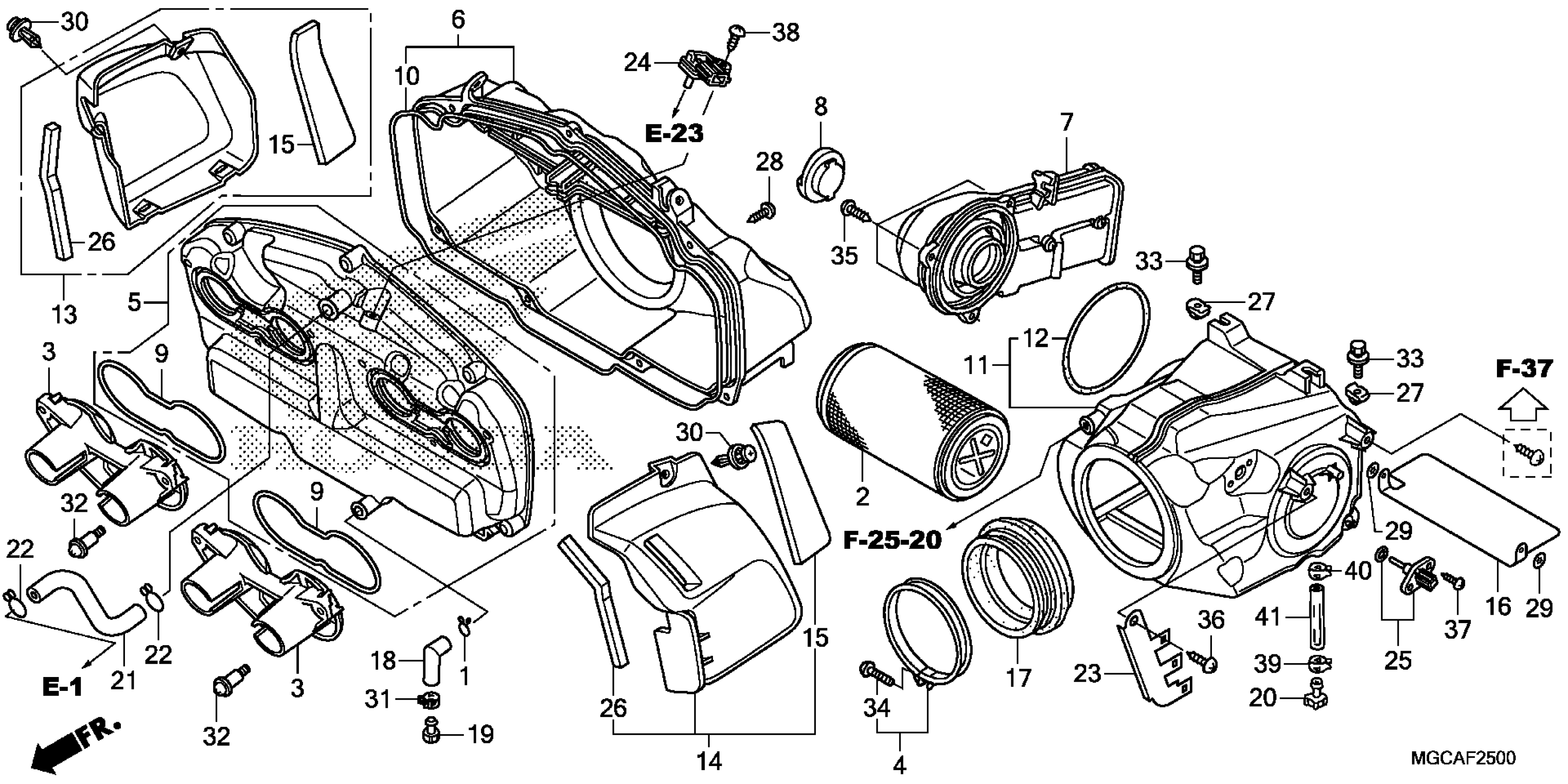

Honda CB1100AC (14) MOTORCYCLE, JPN, VIN# JH2SC651-EK100001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.56

2

ELEMENT, AIR CLEANER

17210-MEJ-981

$50.05

3

FUNNEL, AIR

17225-MGC-000

$19.96

4

BAND, AIR CLEANER CONNECTING

17228-MEJ-003

$11.79

5

CASE A, AIR CLEANER

17230-MGC-000

$126.94

6

CASE B, AIR CLEANER

17231-MGC-000

$119.40

7

DUCT, AIR CLEANER

17235-MGC-D30

$92.97

8

CAP, AIR DUCT

17236-MGC-D30

$2.97

9

SEAL, AIR CLEANER

17237-MGC-000

$6.75

10

SEAL, AIR CLEANER HOUSING

17238-MGC-000

$12.07

11

CASE C, AIR CLEANER

17240-MGC-000

$109.43

12

SEAL, AIR CLEANER HOUSING

17241-MEJ-003

$7.72

13

COVER, R. AIR CLEANER SIDE

17241-MGC-000

$26.91

14

COVER, L. AIR CLEANER SIDE

17242-MGC-000

$26.91

15

MAT, AIR CLEANER SIDE COVER

17243-MGC-300

$3.54

16

RUBBER, HEAT GUARD

17246-MGC-000

$9.03

17

TUBE, AIR CLEANER CONNECTING

17260-MEJ-003

$33.09

18

TUBE A, DRAIN

17366-428-670

$7.75

19

PLUG, BREATHER TUBE

17370-382-870

$3.58

20

PLUG, BREATHER TUBE

17370-419-700

$3.58

21

TUBE, ENGINE BREATHER

17542-MGC-000

$11.03

22

CLIP, BREATHER TUBE

17554-MB0-000

$2.65

23

STAY, CONNECTOR

32123-MGC-000

$7.22

24

SENSOR ASSY., MAP

37830-MEL-003

$118.68

25

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.93

26

MAT A, PIVOT BRACKET

50132-MFJ-J00

$2.21

27

NUT, FENDER SETTING

84601-HA7-670

$5.28

28

SCREW, TAPPING (4X18) (DELTA PT)

90105-MFJ-D00

$1.90

29

NUT, SPEED (4MM)

90313-172-000

$5.60

30

CLIP, BODY COVER

90683-GR1-003

$2.75

31

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.71

32

SCREW, PAN (5MM)

91508-MM5-000

$3.90

33

BOLT-WASHER (6X14)

93404-06014-07

$0.85

34

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.19

35

SCREW, TAPPING (5X25)

93903-25580

$1.01

36

SCREW, TAPPING (6X16) (NOT AVAILABLE)

93903-26280

Unavailable

37

SCREW, TAPPING (5X16)

93911-25420

$0.90

38

SCREW, TAPPING (5X25) (PO)

93911-25680

$0.66

39

CLAMP, TUBE (D10.5)

95002-41050-00

$1.71

40

CLAMP, TUBE (D12.5)

95002-41250-00

$1.24

41

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable
