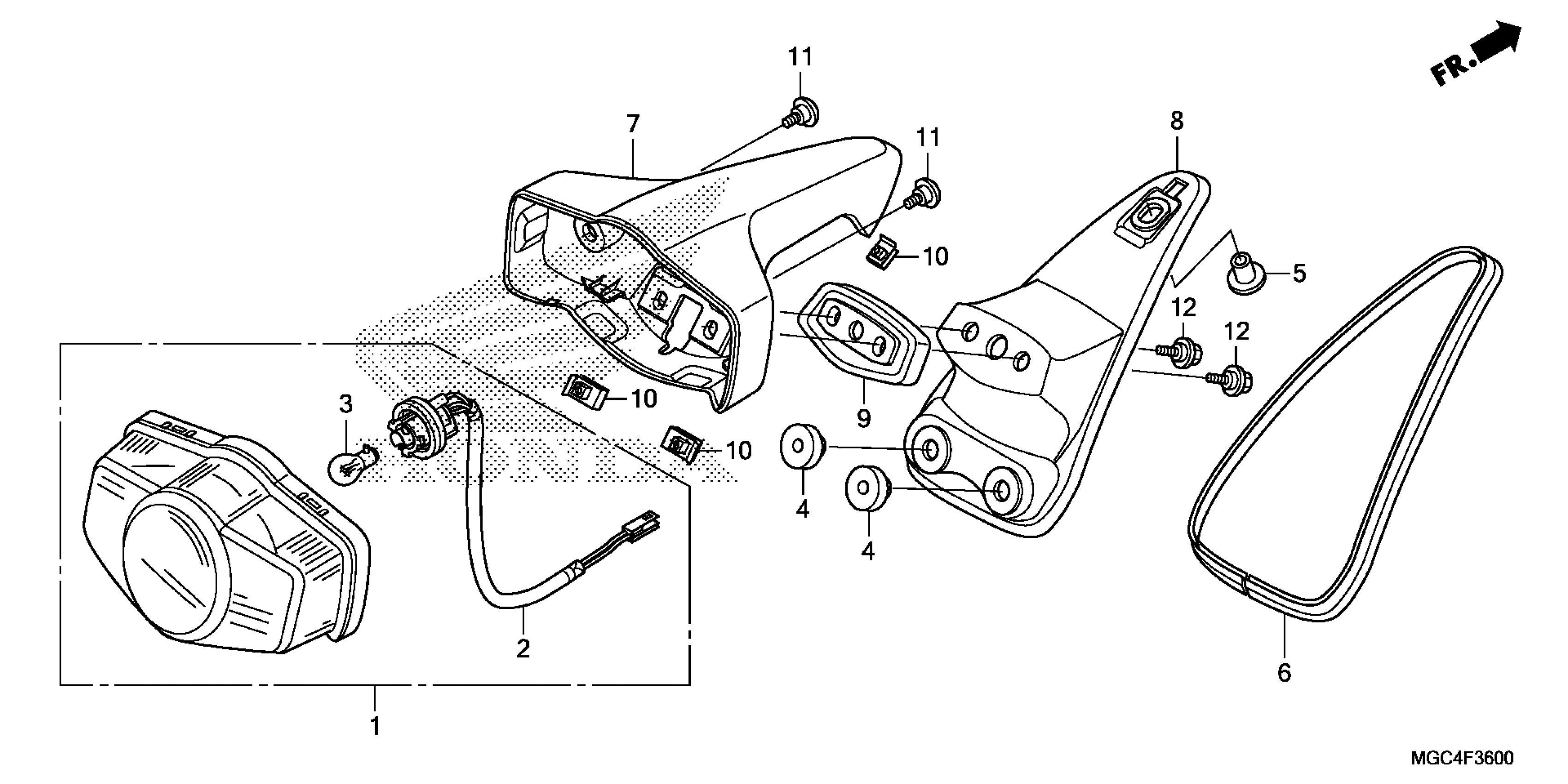

Honda CB1100AC (13) MOTORCYCLE, JPN, VIN# JH2SC651-DK000001 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT (12V 21/5W) This part replaces 33701-MGC-702.

33701-MGC-703

$174.85

1

TAILLIGHT UNIT (12V 21/5W)

33701-MGC-703

$174.85

2

SOCKET, TAILLIGHT

33705-MGC-701

$23.10

3

BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY) (FR.)

34906-447-711

$8.64

4

COLLAR, NUMBER PLATE BRACKET

50605-MGC-A20

$7.41

5

COLLAR, TAILLIGHT

61105-MGC-A20

$4.51

6

MOLDING, RR. FENDER

80101-MGC-000

$10.72

7

COVER, TAILLIGHT

80110-MGC-A20

$83.78

8

BASE, TAILLIGHT

80120-MGC-000

$12.07

9

SPACER, TAILLIGHT

80130-MGC-A20

$3.13

10

NUT, FENDER SETTING (6MM)

84601-HC4-000

$4.09

11

SCREW, PAN (6X11)

90106-KY2-701

$4.05

12

BOLT, FLANGE (6MM)

90111-MGC-A20

$4.15
