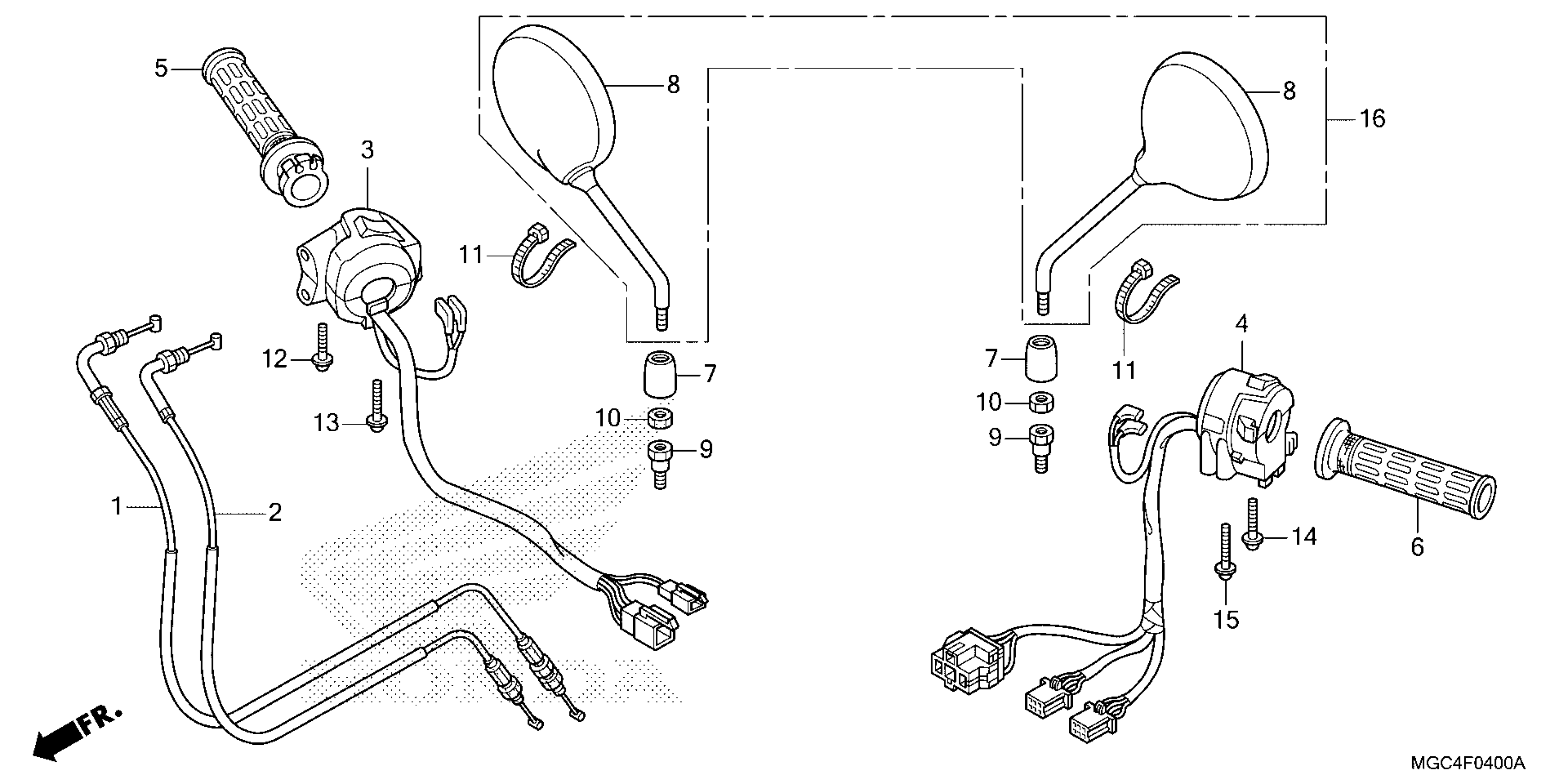

Honda CB1100AC (13) MOTORCYCLE, JPN, VIN# JH2SC651-DK000001 SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-MGC-D31

$40.02

CABLE B, THROTTLE

17920-MGC-D31

$40.02

SWITCH ASSY., STARTER STOP

35130-MEJ-671

$145.11

SWITCH ASSY., TURN SIGNAL

35200-MGC-003

$167.69

GRIP, R.

53140-MGC-000

$30.38

GRIP, L. HANDLE (COO) This part replaces 53166-422-000.

53166-422-305

$13.19

GRIP, L. HANDLE (COO)

53166-422-305

$13.19

COVER, LOCK NUT

88130-MB6-620

$7.84

MIRROR

88210-MCE-L01

$86.02

BOLT, ADAPTER (10MM)

90003-MW3-620

$7.79

NUT, HEX. (10MM) (LEFT HAND THREAD)

90201-MW3-620

$4.40

BAND, WIRE

90650-KW3-000

$4.48

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X25)

93892-05025-07

$1.49

SCREW-WASHER (5X35)

93892-05035-07

$1.49

SCREW-WASHER (5X45)

93892-05045-07

$1.49

MIRROR SET

88100-MCE-305

$95.06
