Description

Price

1

DAMPER SET, WHEEL

06410-MY5-730

$77.85

2

SPROCKET, FINAL DRIVEN (39T)

41201-MEJ-000

$114.26

3

AXLE, RR. WHEEL

42301-MGC-000

$77.66

4

COLLAR, RR. WHEEL SIDE

42311-MGC-D30

$30.59

5

COLLAR, RR. BRAKE SIDE

42312-MGC-D30

$24.89

6

RING, RR. PULSER

42515-MFP-J00

$92.84

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MGC-920

$324.49

8

COLLAR, RR. AXLE DISTANCE

42620-MGC-D30

$29.21

9

COLLAR, RR. WHEEL DISTANCE

42625-MGC-000

$33.54

10

WHEEL SUB-ASSY., RR. (COO)

42650-MGC-305

$1,042.84

11

TIRE, RR. This part replaces 42711-MGC-003.

42711-MGC-013

$238.22

11

TIRE, RR. This part replaces 42711-MGC-004.

42711-MGC-024

Unavailable

11

TIRE, RR.

42711-MGC-013

$238.22

11

TIRE, RR. This part replaces 42711-MGC-014.

42711-MGC-024

Unavailable

12

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

12

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

13

DISK, RR. BRAKE

43251-MGC-920

$412.05

14

WEIGHT, BALANCE (10G) (TOHO ZINK)

44721-SEA-N02

$4.23

14

WEIGHT, BALANCE (20G) (TOHO ZINK)

44722-SEA-N02

$4.94

14

WEIGHT, BALANCE (30G) (TOHO ZINK)

44723-SEA-N02

$5.72

14

WEIGHT, BALANCE (5G) (TOHO ZINK)

44726-SEA-N02

$4.56

14

WEIGHT, BALANCE (15G) (TOHO ZINK)

44727-SEA-N02

$3.91

14

WEIGHT, BALANCE (25G) (TOHO ZINK)

44728-SEA-N02

$5.34

15

BOLT 2, STUD (12X25)

90102-MAS-000

$4.01

16

BOLT, BRAKE DISK (8X24)

90105-MFL-D20

$4.01

17

BOLT, TORX (5X10)

90131-KFK-630

$3.03

18

NUT, U (22MM)

90305-MCF-D01

$7.70

19

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

20

WASHER (22X38X2.5)

90401-MAZ-000

$5.56

21

BEARING, RADIAL BALL (63/28)

91051-MBR-003

$27.72

22

BEARING, RADIAL BALL (6005)

91052-MCF-003

$15.55

23

BEARING, RADIAL BALL (6205X2)

91053-MAZ-003

$17.90

24

DUST SEAL (37X68X7)

91251-MBR-003

$16.34

25

DUST SEAL (35X52X7.5)

91254-MEE-003

$6.91

26

O-RING (51X2)

91352-MCF-003

$3.77

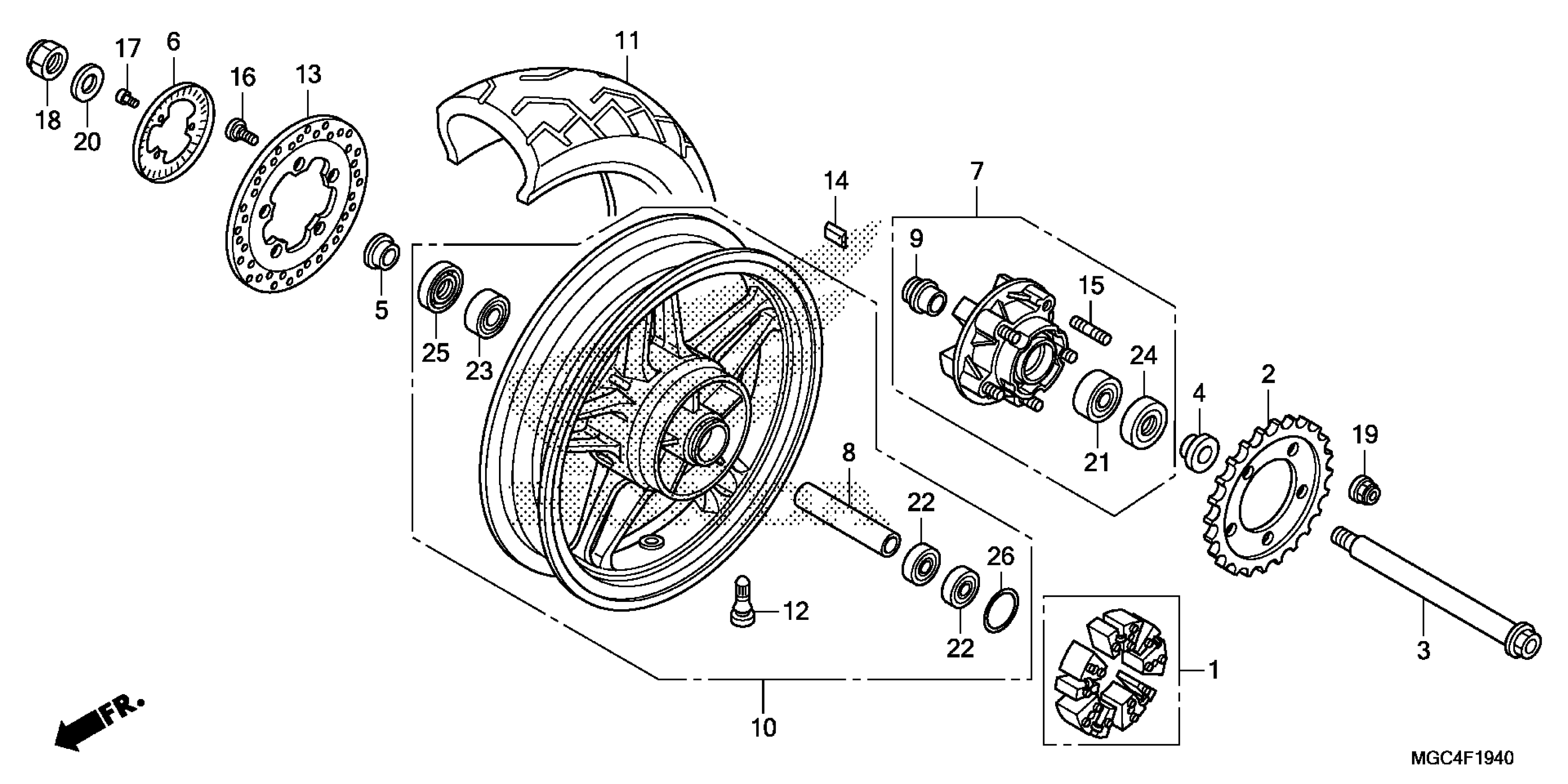

Honda CB1100AC (13) MOTORCYCLE, JPN, VIN# JH2SC651-DK000001 REAR WHEEL Diagram
