Description

Price

1

HOSE, RR. BRAKE

43310-MGC-003

$53.76

2

CLAMP, RR. BRAKE HOSE

43315-MGC-000

$9.44

3

CONNECTOR

43503-HB5-006

$9.19

4

BOOT

43504-MB2-006

$9.24

5

MASTER CYLINDER SUB-ASSY., RR. (NISSIN)

43510-MGC-006

$204.09

6

CUP, MASTER CYLINDER OIL

43511-MGE-016

$20.81

7

HOSE, RR. BRAKE MASTER CYLINDER

43512-MGC-006

$30.44

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.90

9

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$42.70

10

ROD, PUSH

43530-KV3-701

$18.32

11

STAY, OIL CUP

43555-MGC-000

$5.74

12

CAP, OIL CUP

45513-MEL-D21

$16.92

13

DIAPHRAGM

45520-300-000

$8.34

14

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

15

CIRCLIP

46182-MEL-D21

$1.79

16

JOINT, BRAKE ROD

46504-MAH-671

$13.21

17

BOLT, FLANGE (6X18)

90112-MEL-000

$1.63

18

BOLT, FLANGE (6X25)

90131-124-000

$0.69

19

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

20

WASHER, OIL BOLT

90545-300-000

$6.56

21

O-RING (14.8X2.4)

91212-422-006

$2.37

22

SCREW-WASHER (4X12)

93893-04012-07

$1.24

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

23

NUT, HEX. (8MM)

94002-08000-0S

$1.21

24

PIN, COTTER (2.0X12)

94201-20120

$0.96

25

PIN D, JOINT

95015-54000

$4.05

26

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

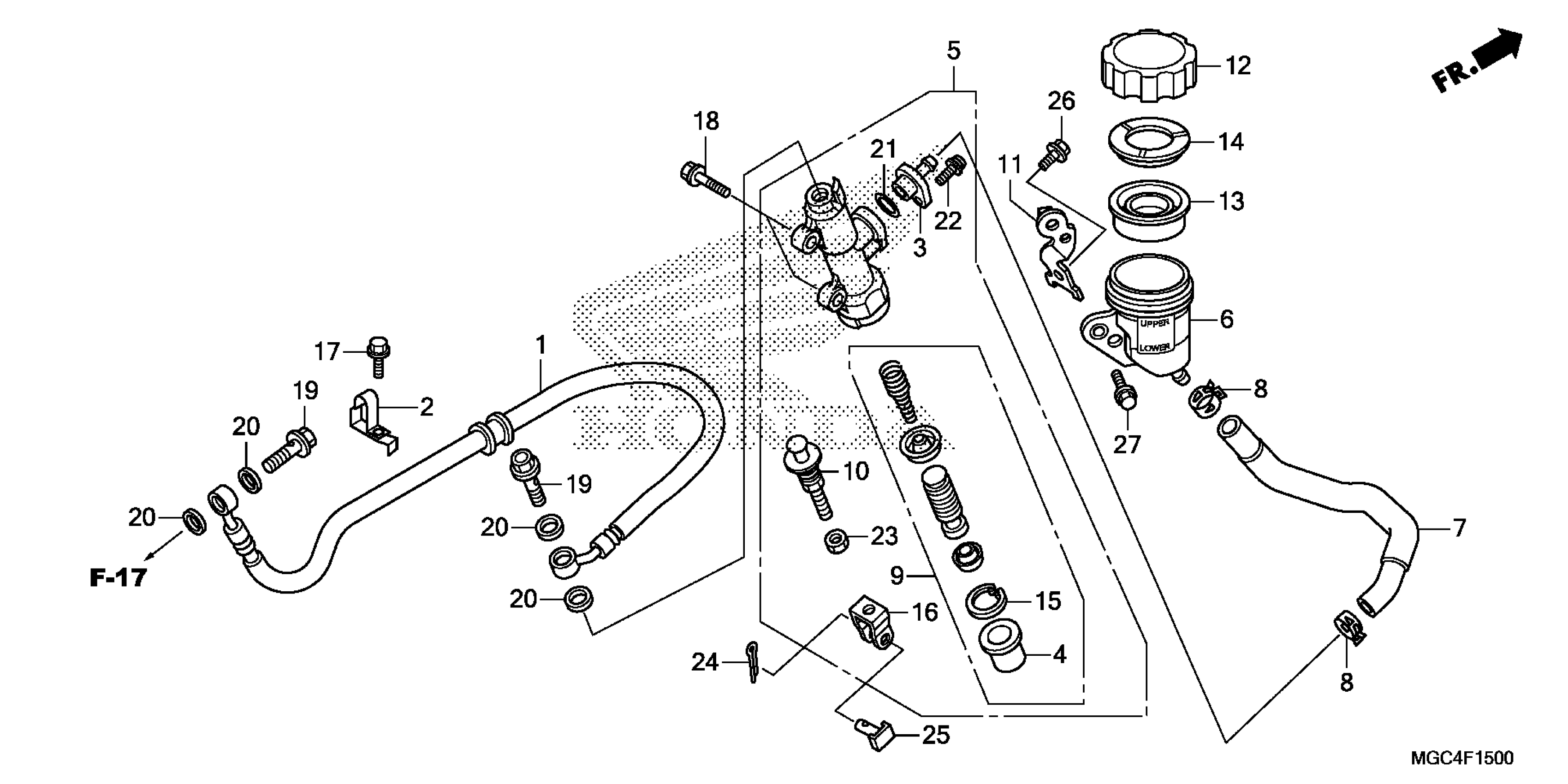

Honda CB1100AC (13) MOTORCYCLE, JPN, VIN# JH2SC651-DK000001 REAR BRAKE MASTER CYLINDER (1) Diagram
