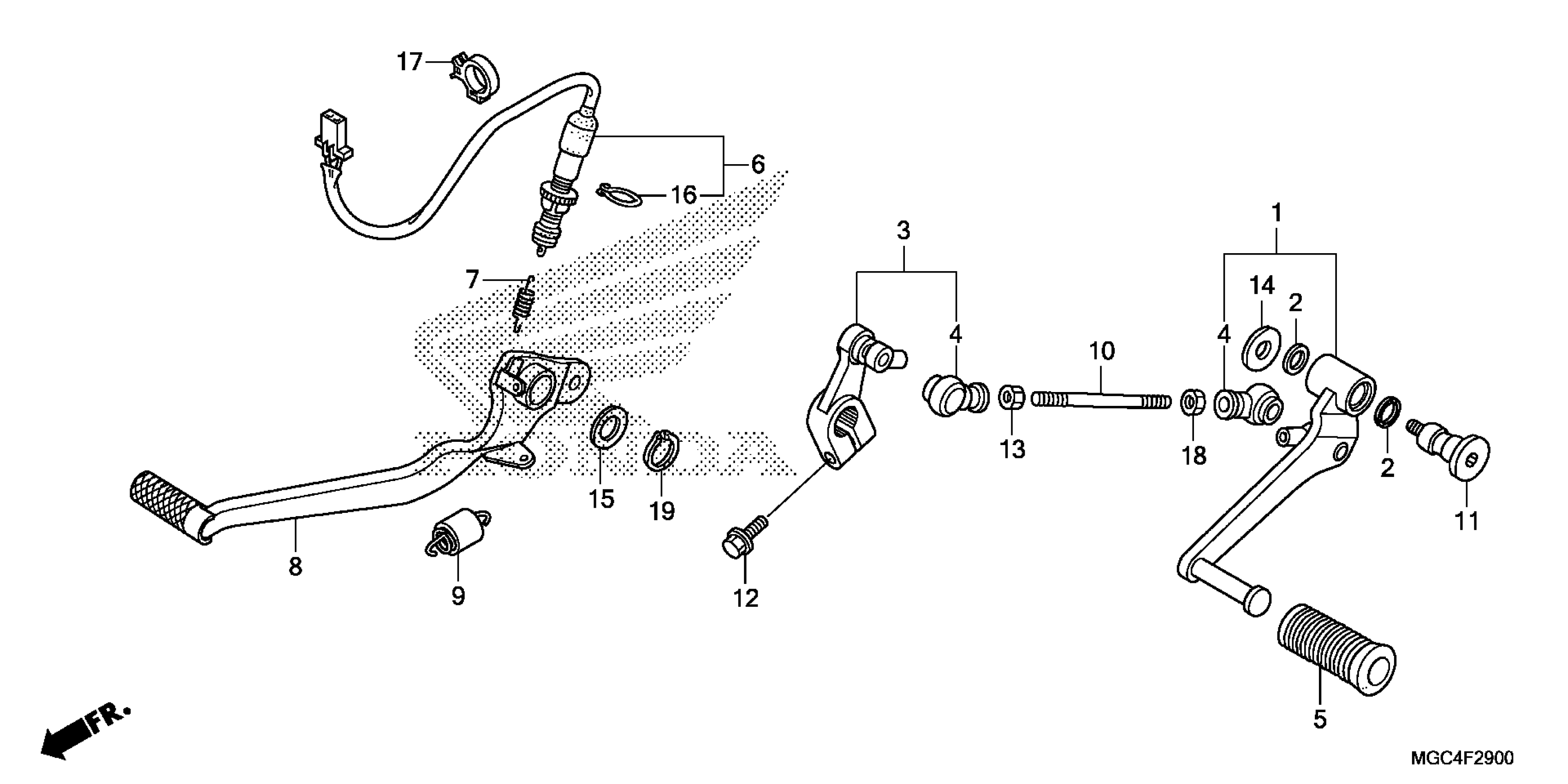

Honda CB1100AC (13) MOTORCYCLE, JPN, VIN# JH2SC651-DK000001 PEDAL Diagram

PEDAL, GEARSHIFT

24705-MGC-000

$75.62

RUBBER, DUST SEAL

24706-MK3-770

$4.28

ARM, GEARSHIFT

24710-MGC-000

$61.21

COVER, DUST

24724-422-000

$6.37

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

SWITCH ASSY., RR. STOP

35350-MGC-013

$26.93

SPRING, STOP SWITCH

35357-MBR-000

$2.21

PEDAL, RR. BRAKE

46500-MGC-000

$152.88

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.13

BOLT, TIE ROD

90065-MW3-A90

$3.85

BOLT, CHANGE PIVOT

90115-KAF-000

$17.60

BOLT, FLANGE (6X20)

90118-KY1-000

$2.93

NUT B, TIE ROD (LEFT HAND THREAD)

90201-KV3-700

$2.13

WASHER, ROTOR SETTING

90426-355-000

$4.09

WASHER (15.2X25)

90557-230-000

$2.21

CLIP, SWITCH COVER

90601-KAF-003

$2.47

CLIP, CABLE (8MM)

90690-GHB-631

$2.01

NUT, HEX. (6MM)

94002-06020-0S

$1.01

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63
