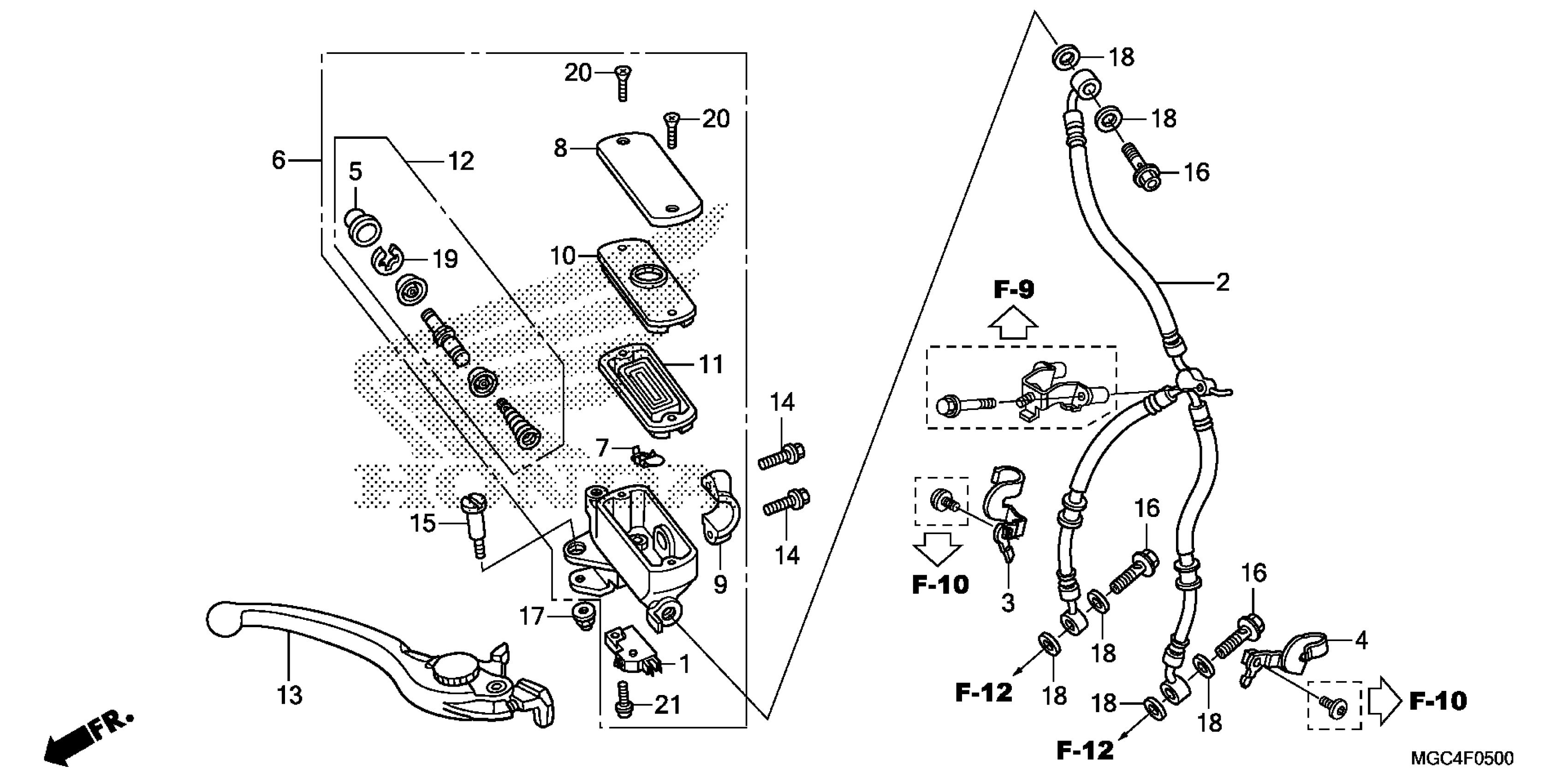

Honda CB1100AC (13) MOTORCYCLE, JPN, VIN# JH2SC651-DK000001 FRONT BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

HOSE, FR. BRAKE

45125-MGC-003

$165.67

3

CLAMP, R. FR. BRAKE

45155-MGC-000

$13.52

4

CLAMP, L. FR. BRAKE

45156-MGC-000

$13.52

5

BOOT

45504-410-003

$12.16

6

MASTER CYLINDER SUB-ASSY., FR. (NISSIN) This part replaces 45510-MGH-305.

45510-MGH-641

$297.59

6

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MGH-641

$297.59

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

9

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

10

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

11

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

12

MASTER CYLINDER SET

45530-MA4-671

$47.76

13

LEVER ASSY., R. HANDLE

53170-MEJ-016

$45.19

13

LEVER ASSY., R. HANDLE This part replaces 53170-MEJ-305.

53170-MEJ-016

$45.19

14

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.49

15

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

16

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

17

NUT, CAP (6MM)

90201-415-000

$2.05

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

21

SCREW-WASHER (4X12)

93893-04012-07

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49
