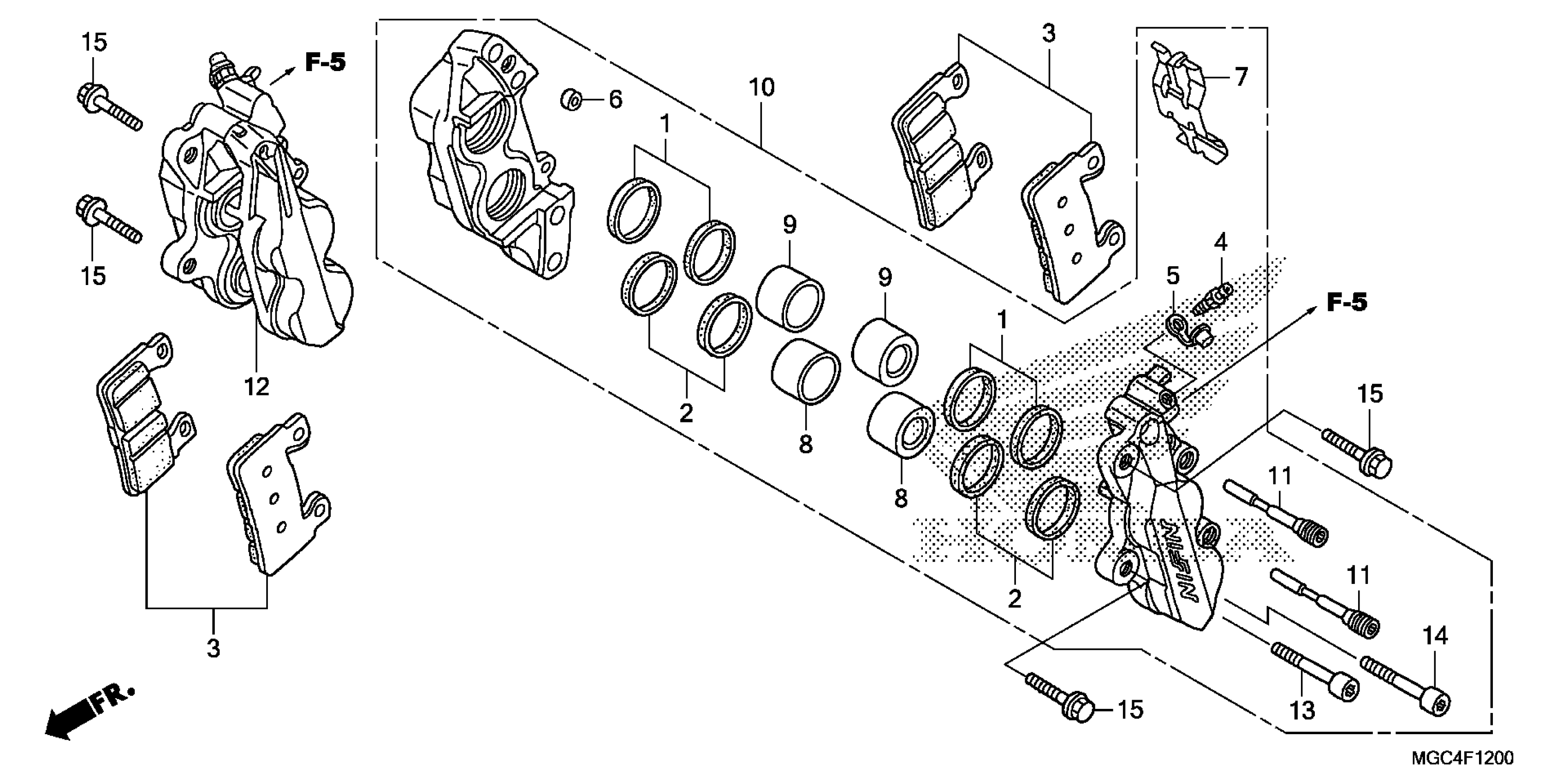

Honda CB1100AC (13) MOTORCYCLE, JPN, VIN# JH2SC651-DK000001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-MCJ-751

$11.58

SEAL SET, PISTON

06451-MCZ-006

$5.81

PAD SET, FR. This part replaces 06455-MGC-006.

06455-MGC-016

$65.17

PAD SET, FR.

06455-MGC-016

$65.17

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.72

SPRING, PAD

45106-MAS-E01

$9.68

PISTON A This part replaces 45107-MCZ-016.

45107-MCZ-026

$46.11

PISTON A

45107-MCZ-026

$46.11

PISTON B This part replaces 45117-MCJ-752.

45117-MCJ-753

$44.33

PISTON B

45117-MCJ-753

$44.33

CALIPER SUB-ASSY. This part replaces 45150-MGC-922.

45150-MGC-923

$489.07

CALIPER SUB-ASSY.

45150-MGC-923

$489.07

PIN, HANGER

45215-MAS-E01

$10.35

CALIPER SUB-ASSY. This part replaces 45250-MGC-922.

45250-MGC-923

$467.97

CALIPER SUB-ASSY.

45250-MGC-923

$467.97

BOLT, TORX (8X35)

90107-MAS-E01

$7.49

BOLT, TORX (8X40)

90108-MAS-E01

$7.20

BOLT, FLANGE (8X32)

90131-MGC-000

$3.48
