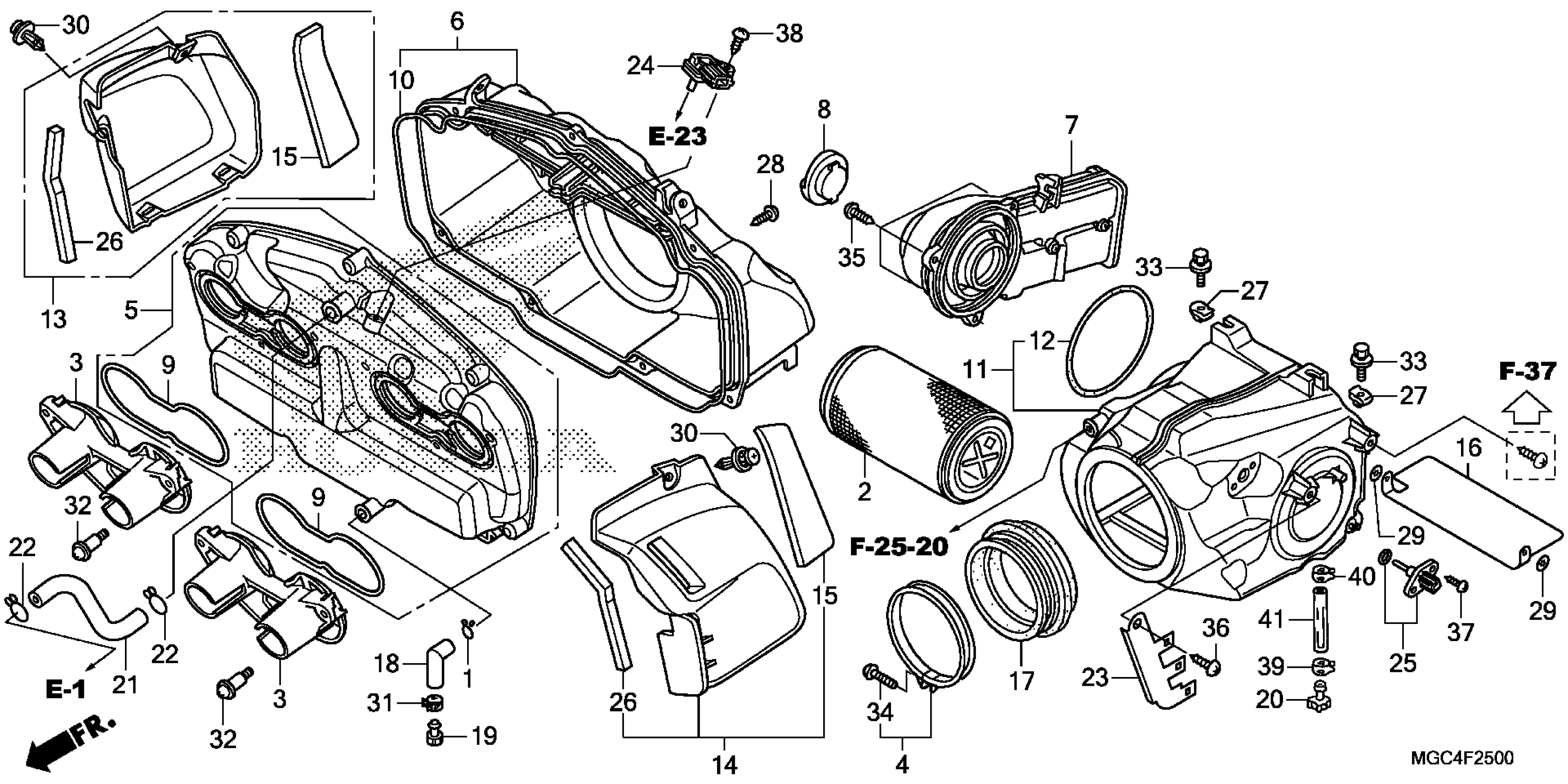

Honda CB1100AC (13) MOTORCYCLE, JPN, VIN# JH2SC651-DK000001 AIR CLEANER Diagram

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

ELEMENT, AIR CLEANER

17210-MEJ-981

$56.14

FUNNEL, AIR

17225-MGC-000

$21.61

BAND, AIR CLEANER CONNECTING

17228-MEJ-003

$12.77

CASE A, AIR CLEANER

17230-MGC-000

$137.38

CASE B, AIR CLEANER

17231-MGC-000

$129.21

DUCT, AIR CLEANER

17235-MGC-D30

$100.62

CAP, AIR DUCT

17236-MGC-D30

$3.31

SEAL, AIR CLEANER

17237-MGC-000

$7.31

SEAL, AIR CLEANER HOUSING

17238-MGC-000

$13.07

CASE C, AIR CLEANER

17240-MGC-000

$118.44

SEAL, AIR CLEANER HOUSING

17241-MEJ-003

$8.36

COVER, R. AIR CLEANER SIDE

17241-MGC-000

$30.00

COVER, L. AIR CLEANER SIDE

17242-MGC-000

$30.00

MAT, AIR CLEANER SIDE COVER

17243-MGC-300

$3.84

RUBBER, HEAT GUARD

17246-MGC-000

$9.77

TUBE, AIR CLEANER CONNECTING

17260-MEJ-003

$35.80

TUBE A, DRAIN

17366-428-670

$8.39

PLUG, BREATHER TUBE

17370-382-870

$3.74

PLUG, BREATHER TUBE

17370-419-700

$3.74

TUBE, ENGINE BREATHER

17542-MGC-000

$11.93

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

STAY, CONNECTOR

32123-MGC-000

$7.82

SENSOR ASSY., MAP

37830-MEL-003

$129.26

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

MAT A, PIVOT BRACKET

50132-MFJ-J00

$2.39

NUT, FENDER SETTING

84601-HA7-670

$5.54

SCREW, TAPPING (4X18) (DELTA PT)

90105-MFJ-D00

$2.05

NUT, SPEED (4MM)

90313-172-000

$5.85

CLIP, BODY COVER

90683-GR1-003

$2.92

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.89

SCREW, PAN (5MM)

91508-MM5-000

$4.08

BOLT-WASHER (6X14)

93404-06014-07

$1.49

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.49

SCREW, TAPPING (5X25)

93903-25580

$1.49

SCREW, TAPPING (6X16) (NOT AVAILABLE)

93903-26280

Unavailable

SCREW, TAPPING (5X16)

93911-25420

$1.49

SCREW, TAPPING (5X25) (PO)

93911-25680

$1.49

CLAMP, TUBE (D10.5)

95002-41050-00

$1.85

CLAMP, TUBE (D12.5)

95002-41250-00

$1.49

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable
