Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-GK8-000

$7.10

2

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$168.25

3

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

4

WIRE HARNESS

32100-MGC-A31

$1,037.41

5

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.12

6

CAP, DUMMY (2P) (RED)

32606-KCW-J91

$2.93

7

COVER (UPPER)

38252-MFJ-D01

$10.09

8

RELAY, TURN SIGNAL POSITION

38301-MGC-A21

$138.64

9

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.33

10

PGM-FI UNIT This part replaces 38770-MGC-A23.

38770-MGC-A24

Unavailable

10

PGM-FI UNIT

38770-MGC-A24

Unavailable

11

BAND, WIRE

90650-KV3-000

$10.10

12

CLAMP, HARNESS

90652-HC4-003

$5.54

13

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

14

CLIP, WIRE HARNESS

90683-KJ2-003

$3.32

16

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.42

17

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61

18

FUSE, MINI (10A)

98200-41000

$1.20

19

FUSE, MINI (20A)

98200-42000

$1.10

20

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.59

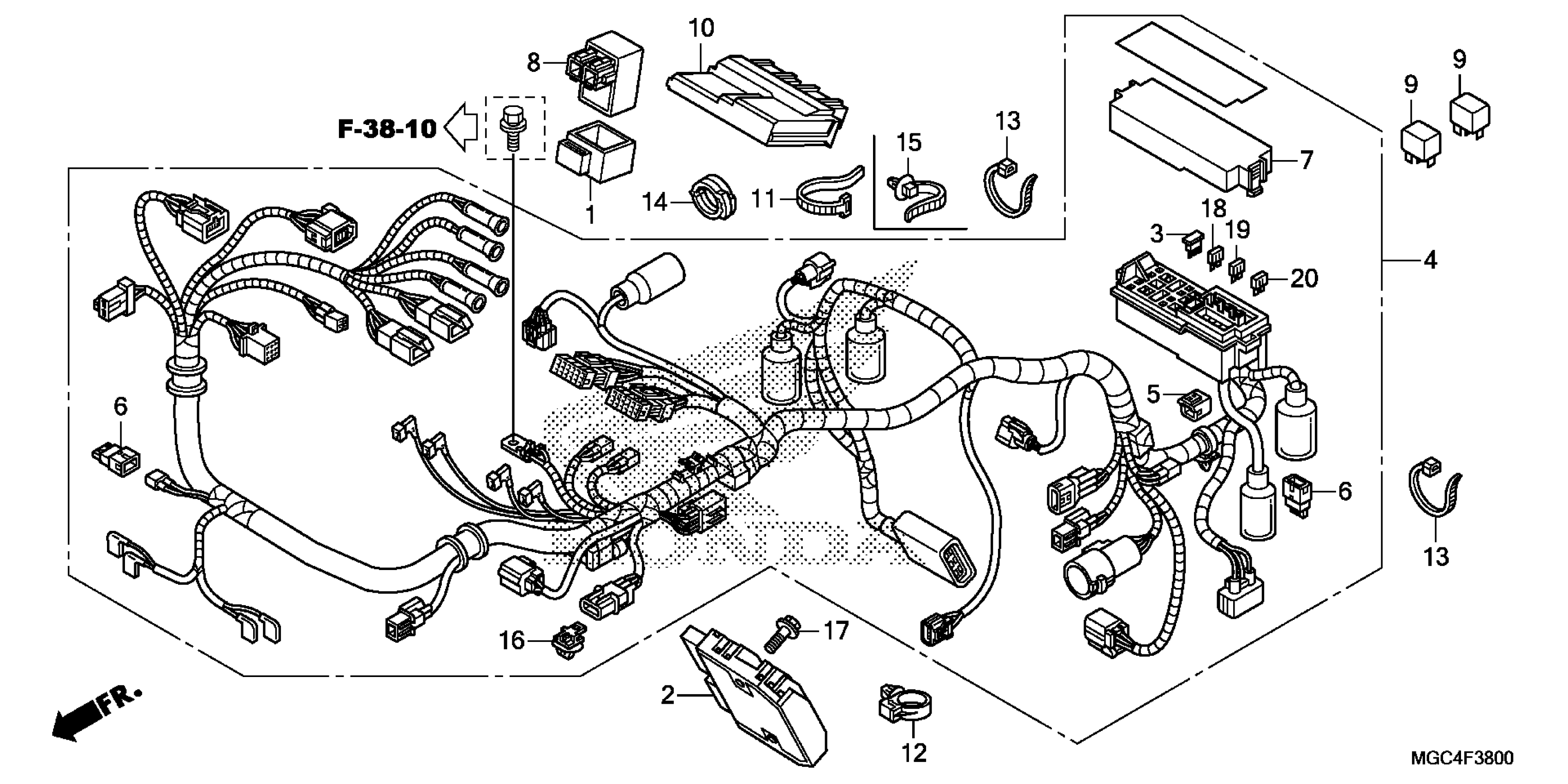

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 WIRE HARNESS Diagram
