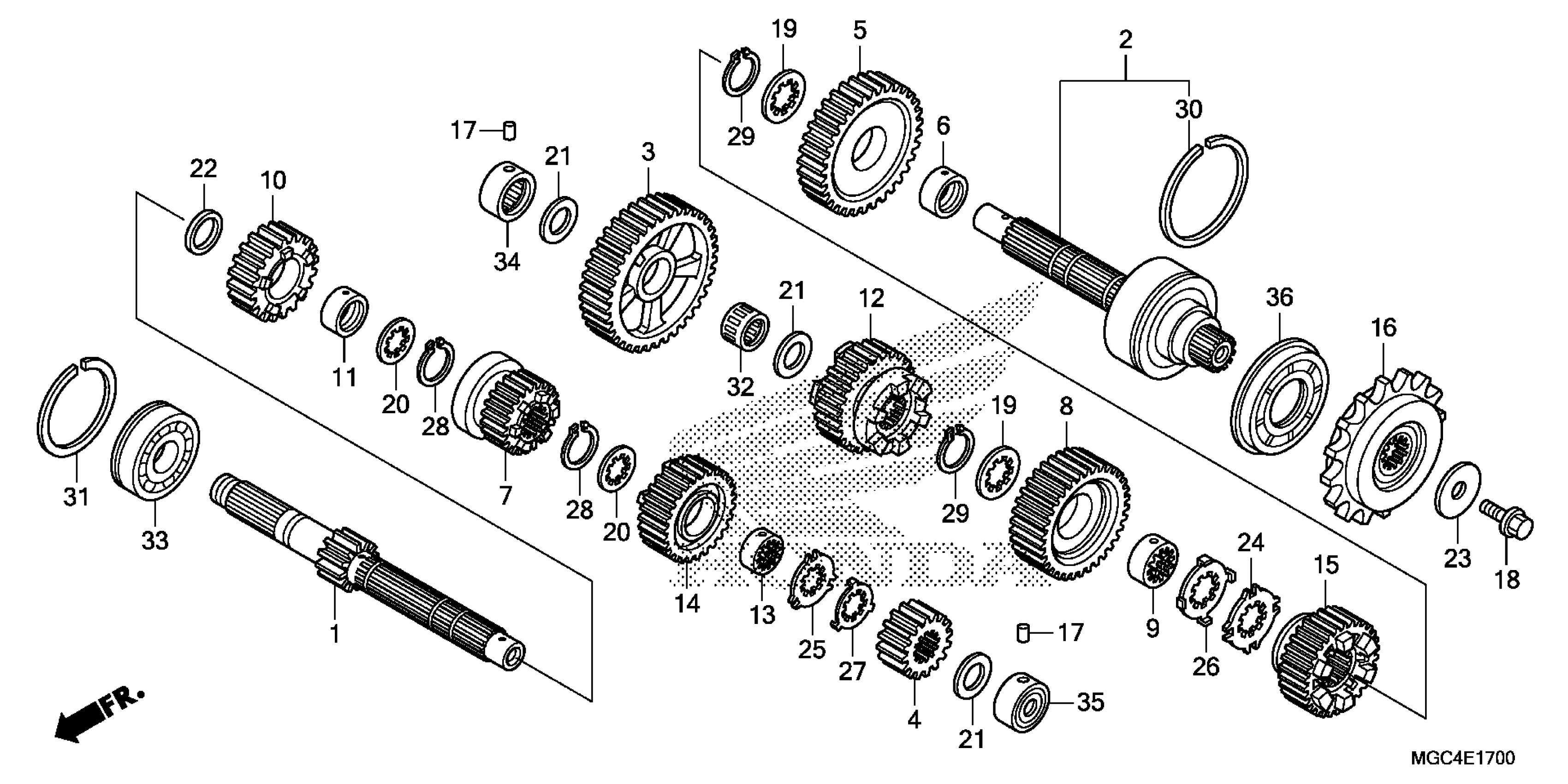

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (12T)

23211-MEJ-000

$160.90

2

COUNTERSHAFT

23220-MGC-000

$275.67

3

GEAR, COUNTERSHAFT FIRST (38T)

23421-MGC-000

$135.20

4

GEAR, MAINSHAFT SECOND (16T)

23431-MAZ-000

$48.68

5

GEAR, COUNTERSHAFT SECOND (33T)

23441-MEJ-000

$109.36

6

COLLAR (30X11.2)

23442-MS2-610

$21.61

7

GEAR, MAINSHAFT THIRD (22T)

23451-MGC-000

$128.48

8

GEAR, COUNTERSHAFT THIRD (34T)

23461-MAZ-000

$110.58

9

COLLAR, SPLINE (30X11)

23462-MAT-000

$20.94

10

GEAR, MAINSHAFT FOURTH (20T)

23471-MGC-000

$120.61

11

COLLAR (28MM)

23472-MT3-000

$25.20

12

GEAR, COUNTERSHAFT FOURTH (25T)

23481-MGC-000

$140.81

13

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$28.16

14

GEAR, MAINSHAFT FIFTH (27T)

23491-MGC-000

$127.33

15

GEAR, COUNTERSHAFT FIFTH (30T)

23501-MGC-000

$140.81

16

SPROCKET, DRIVE (18T)

23801-MAZ-000

Unavailable

17

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$3.92

18

BOLT, SPECIAL (10MM)

90037-422-003

$6.82

19

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.00

20

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$5.77

21

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.53

22

WASHER, THRUST (28MM)

90458-729-920

$4.87

23

WASHER (10.2MM)

90459-438-000

$5.43

24

WASHER, SPLINE (30MM)

90463-MAT-000

$4.16

25

WASHER, SPLINE (28MM)

90463-MR7-000

$9.62

26

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

27

WASHER, LOCK (28MM)

90464-MR7-000

$9.62

28

CIRCLIP (28MM)

90603-MN4-000

$3.49

29

CIRCLIP (30MM)

90604-MM5-000

$4.16

30

RING, SNAP (72MM)

90605-MM5-000

$8.25

31

RING, SNAP (62MM)

90606-MM5-000

$7.88

32

BEARING, NEEDLE (22X26X13)

91001-MB6-680

$31.46

33

BEARING, BALL (28X62X16)

91004-MAZ-003

$21.96

34

BEARING, NEEDLE (22MM)

91022-MEJ-003

$21.78

35

BEARING, NEEDLE (22MM)

91023-MM5-641

$26.12

36

OIL SEAL (45X72X8)

91207-MAT-003

$15.95
