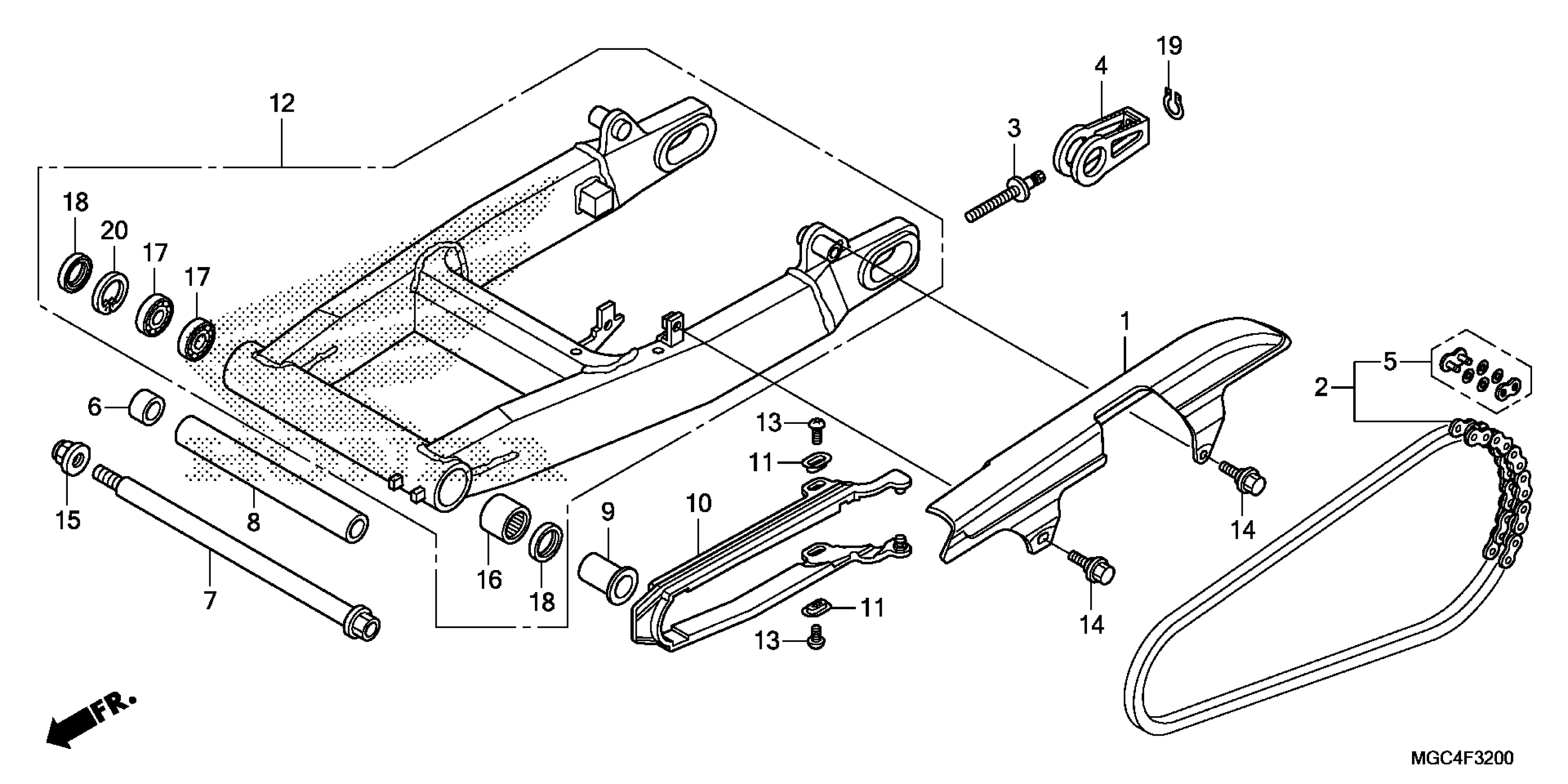

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-MGC-000

$61.43

2

CHAIN, DRIVE (RK EXCEL) (RK50LFOZ2-120LJ-FZ) (STANDARD LINK 110L)

40540-MBB-005

Unavailable

2

CHAIN, DRIVE (DID50ZVM-120ZB) (DAIDO) (STANDARD LINK 110L)

40540-MBR-003

$240.14

3

BOLT, CHAIN ADJUSTER

40542-MGC-000

$7.75

4

ADJUSTER, CHAIN

40543-MGC-010

$27.71

5

MASTER LINK (RK EXCEL)

40545-MBB-005

Unavailable

5

MASTER LINK (DAIDO)

40545-MBR-003

Unavailable

6

COLLAR, L. FR. WHEEL SIDE (BOTH SIDES)

44312-MCE-950

$9.77

7

BOLT, SWINGARM PIVOT

52101-MGC-000

$39.91

8

COLLAR, SWINGARM PIVOT

52102-MGC-D30

$19.29

9

COLLAR B, PIVOT

52106-MGC-D30

$28.83

10

SLIDER, CHAIN

52170-MGC-000

$48.68

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.35

12

SWINGARM SUB-ASSY., RR.

52200-MGC-750

$927.17

13

SCREW, PAN (5X10)

90104-ML7-920

$2.80

14

BOLT, FLANGE (6MM)

90111-187-000

$5.21

15

NUT, FLANGE (18MM)

90305-MB4-003

$11.23

16

BEARING, NEEDLE

91071-MR7-003

$22.90

17

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.17

18

DUST SEAL (28X37X4)

91202-MR7-003

$5.91

19

CIRCLIP (OUTER) (10MM)

94511-10000

$0.84

20

CIRCLIP (INNER) (37MM)

94520-37000

$1.99
