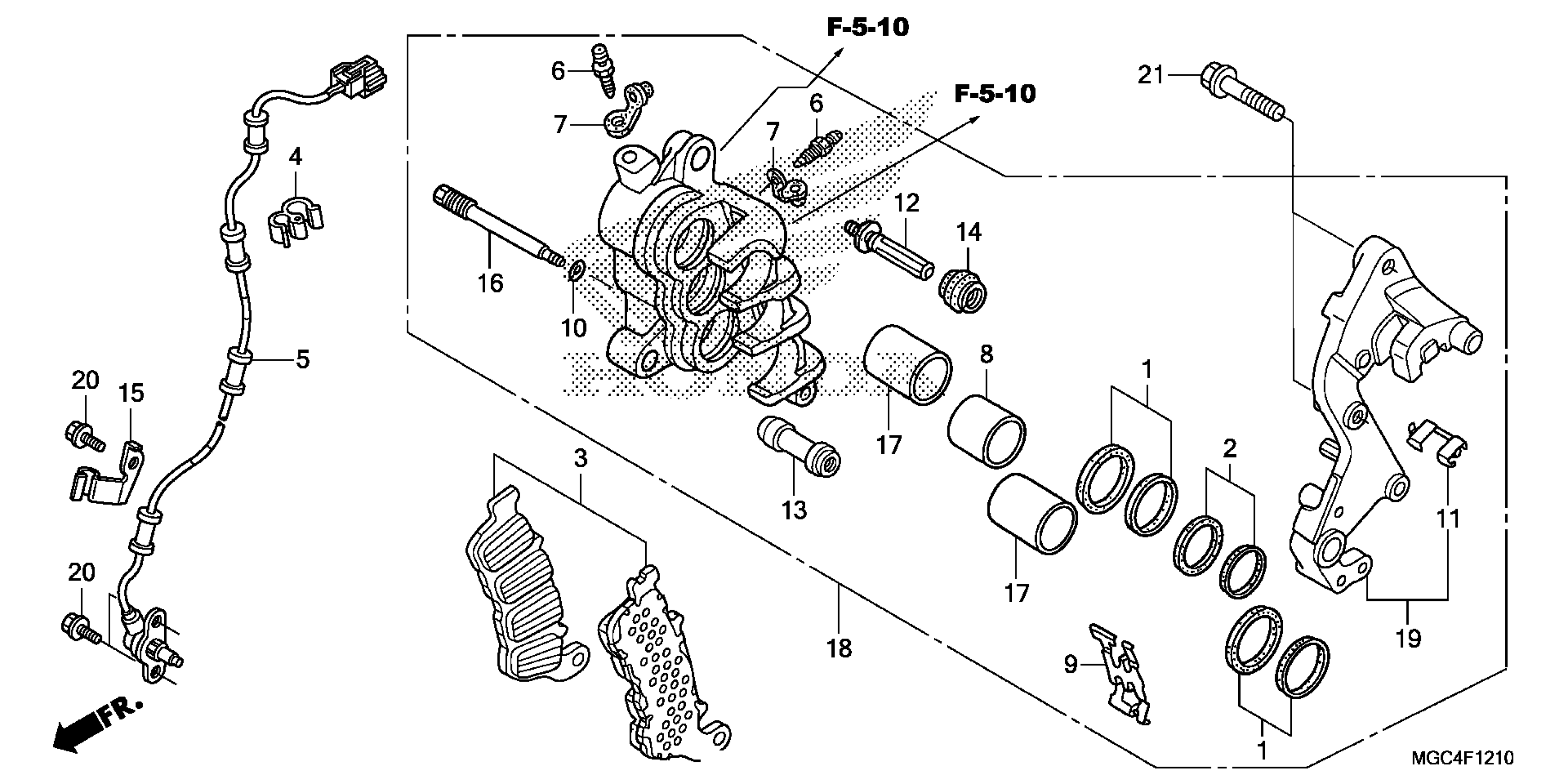

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 RIGHT FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

PAD SET, R. FR. This part replaces 06455-MCW-H02.

06455-MCW-H03

$58.99

PAD SET, R. FR.

06455-MCW-H03

$58.99

CLAMP, PIPE

11152-KS4-003

$6.80

SENSOR, FR. WHEEL SPEED

38520-MGC-751

$200.31

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON A (22X27) This part replaces 45107-MEW-922.

45107-MEW-923

$30.06

PISTON A (22X27)

45107-MEW-923

$30.06

SPRING, PAD

45108-MBT-D52

$7.65

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MZ2-006

$8.14

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CLAMP, SPEED SENSOR CORD

45161-MCW-D10

$4.47

PIN, HANGER

45215-MBT-D51

$6.38

PISTON B (27X35)

45218-MAJ-G41

$36.21

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MGC-941

$581.24

BRACKET SUB-ASSY., R. FR.

45290-MGC-941

$148.65

BOLT, FLANGE (6X12)

90123-MCH-A00

$1.32

BOLT, FLANGE (8X32)

90131-MGC-000

$3.21
