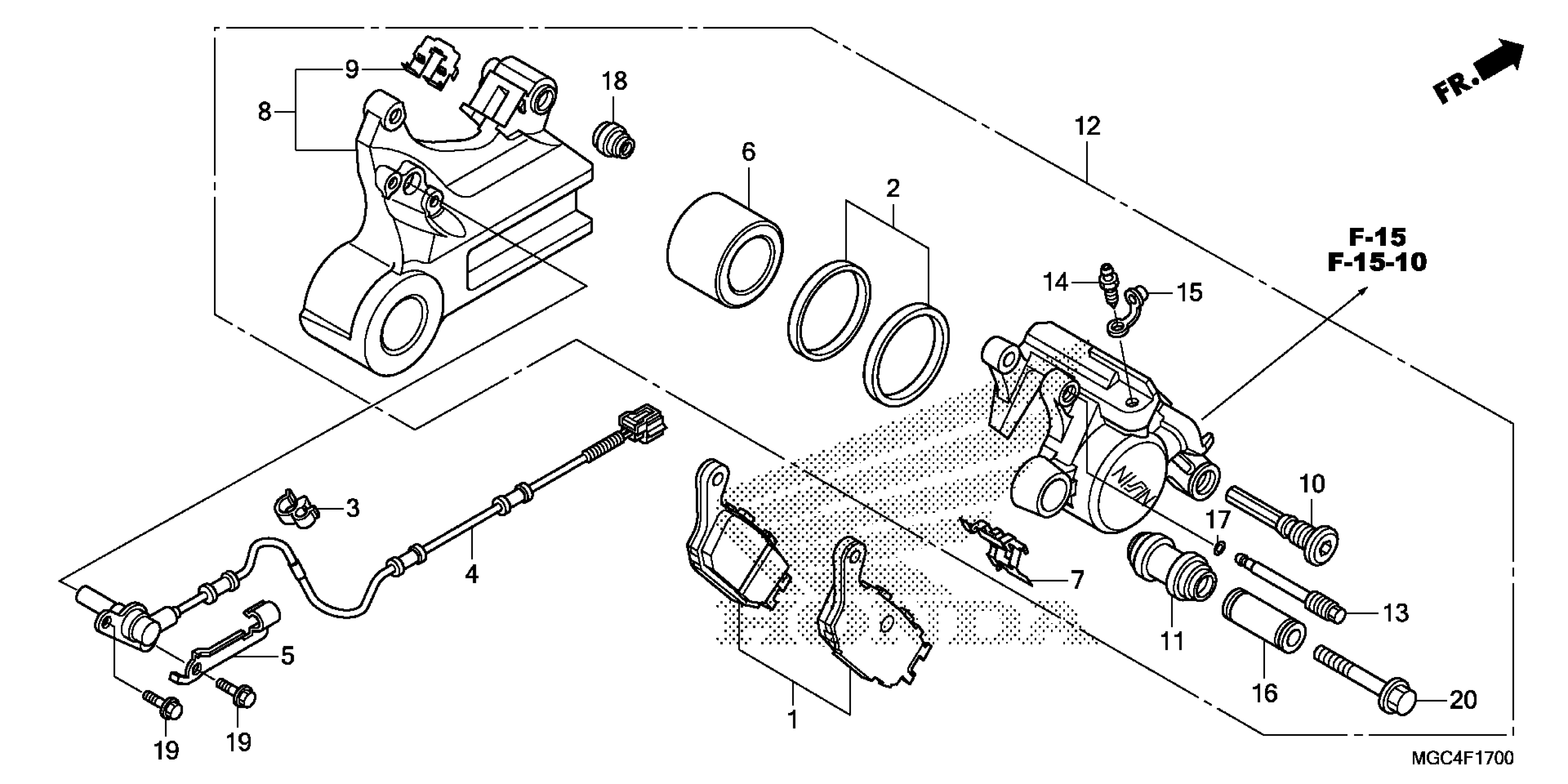

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR. This part replaces 06435-MEJ-016.

06435-MEJ-026

$60.08

PAD SET, RR.

06435-MEJ-026

$60.08

SEAL SET, PISTON

06451-443-405

$13.23

CLAMP, PIPE

11152-KS4-003

$7.13

SENSOR, RR. WHEEL SPEED

38510-MGC-751

$216.77

CLAMP, SENSOR WIRE

38515-MGC-000

$20.77

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-KT7-761

$8.68

BRACKET, RR.

43110-MGC-921

$185.34

RETAINER

43112-MV9-016

$10.65

BOLT, PIN

43131-KW3-006

$10.29

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MGC-941

$383.69

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (6X12)

90123-MCH-A00

$1.49

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07
