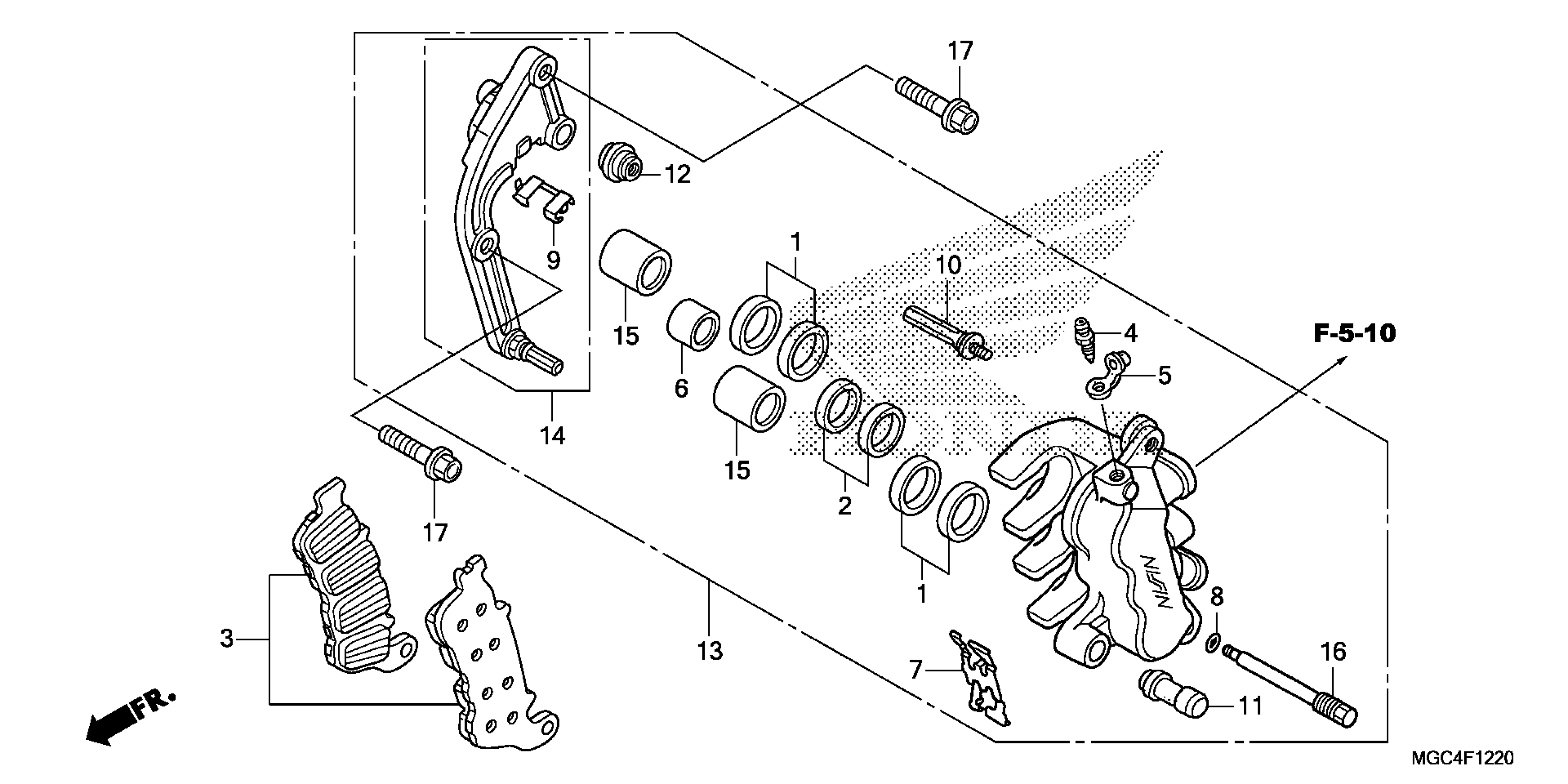

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 LEFT FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

PAD SET, L. FR. This part replaces 06456-MCW-H02.

06456-MCW-H03

$55.25

PAD SET, L. FR.

06456-MCW-H03

$55.25

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON A (22X27) This part replaces 45107-MEW-922.

45107-MEW-923

$30.06

PISTON A (22X27)

45107-MEW-923

$30.06

SPRING, PAD

45108-MBT-D52

$7.65

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MZ2-006

$8.14

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MGC-941

$581.28

BRACKET SUB-ASSY., L. FR. CALIPER

45190-MGC-941

$125.93

PISTON B (27)

45208-MFN-D12

$42.25

PIN, HANGER

45215-MBT-D51

$6.38

BOLT, FLANGE (8X32)

90131-MGC-000

$3.21
