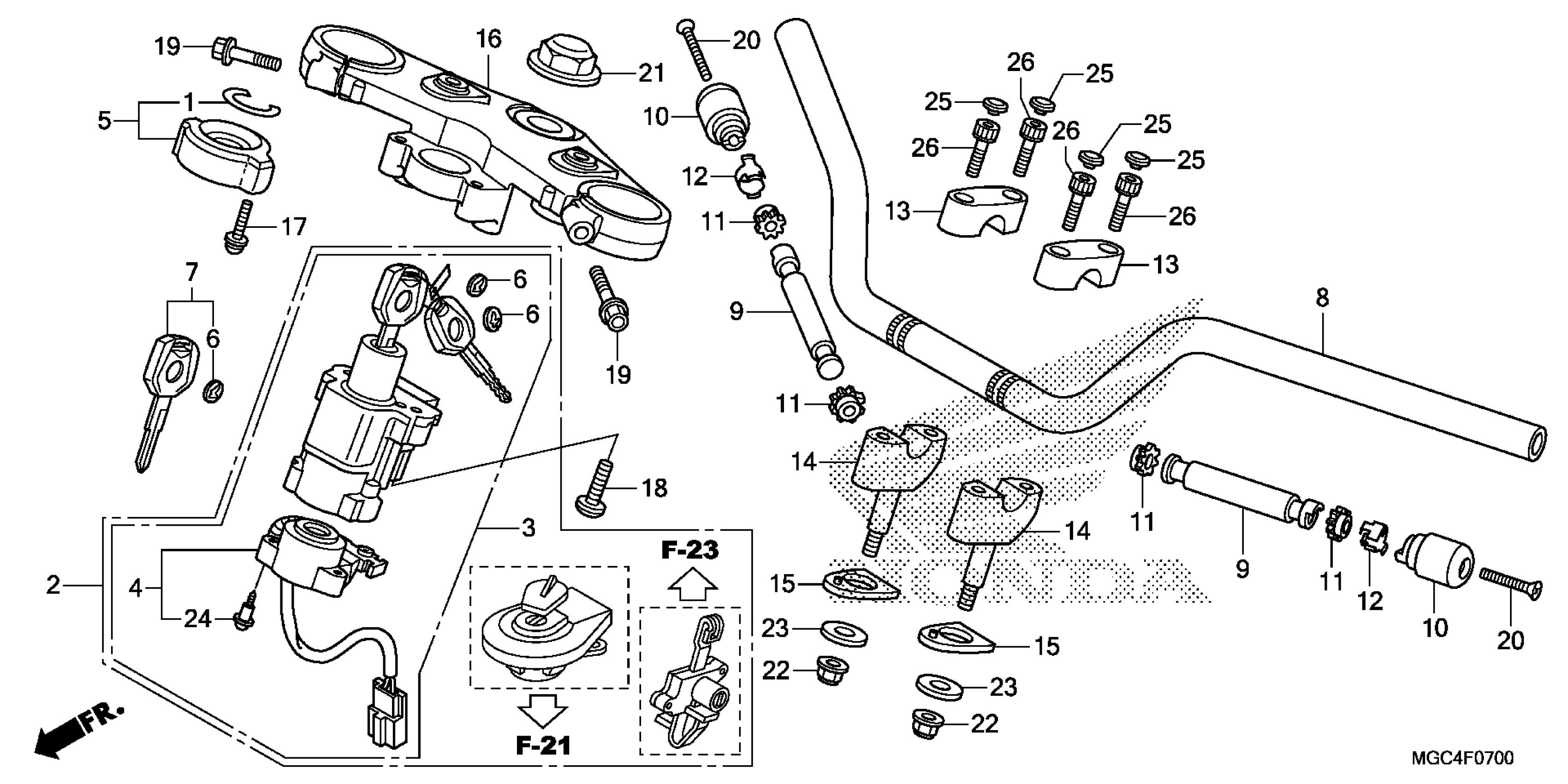

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

2

KEY SET This part replaces 35010-MGC-A20.

35010-MGC-A22

$495.31

2

KEY SET This part replaces 35010-MGC-A21.

35010-MGC-A22

$495.31

2

KEY SET

35010-MGC-A22

$495.31

3

SWITCH ASSY., COMBINATION & LOCK

35100-MGC-A21

Unavailable

3

SWITCH ASSY., COMBINATION & LOCK

35100-MGC-A22

$254.15

4

BASE, CONTACT

35101-MGC-003

$92.56

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

6

EMBLEM, KEY | (Optional).

35113-MGP-000

$4.17

7

KEY, BLANK | (Optional).

35121-MGP-A01

$55.61

8

HANDLEBAR

53100-MGC-000

$193.49

9

WEIGHT B, HANDLEBAR

53105-KV3-000

$17.27

10

WEIGHT, HANDLEBAR

53105-MK4-620

$15.03

11

RUBBER A, HANDLE WEIGHT

53106-KR3-770

$3.92

12

RING, HANDLE WEIGHT SNAP

53108-KR3-940

$5.62

13

HOLDER, HANDLEBAR (UPPER)

53131-KR8-000

$27.79

14

HOLDER, HANDLE (LOWER)

53132-MEJ-000

$44.51

15

RUBBER, HANDLE HOLDER SEAT

53134-MGC-000

$6.33

16

BRIDGE, FORK TOP

53300-MGC-000

$301.82

17

SCREW-WASHER (5X28)

90020-MCS-G00

$1.62

18

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

19

BOLT, FLANGE (8X40)

90108-MR7-000

$5.05

20

SCREW, OVAL (6X65)

90191-KBG-000

$4.94

21

NUT, STEERING STEM

90304-MK4-000

$19.56

22

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

22

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

23

WASHER, HANDLE CUSHION

90535-KB9-000

$6.14

24

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

25

CAP, SOCKET BOLT (8MM)

91455-KEA-000

$3.72

26

BOLT, SOCKET (8X25)

96600-08025-00

$2.02
