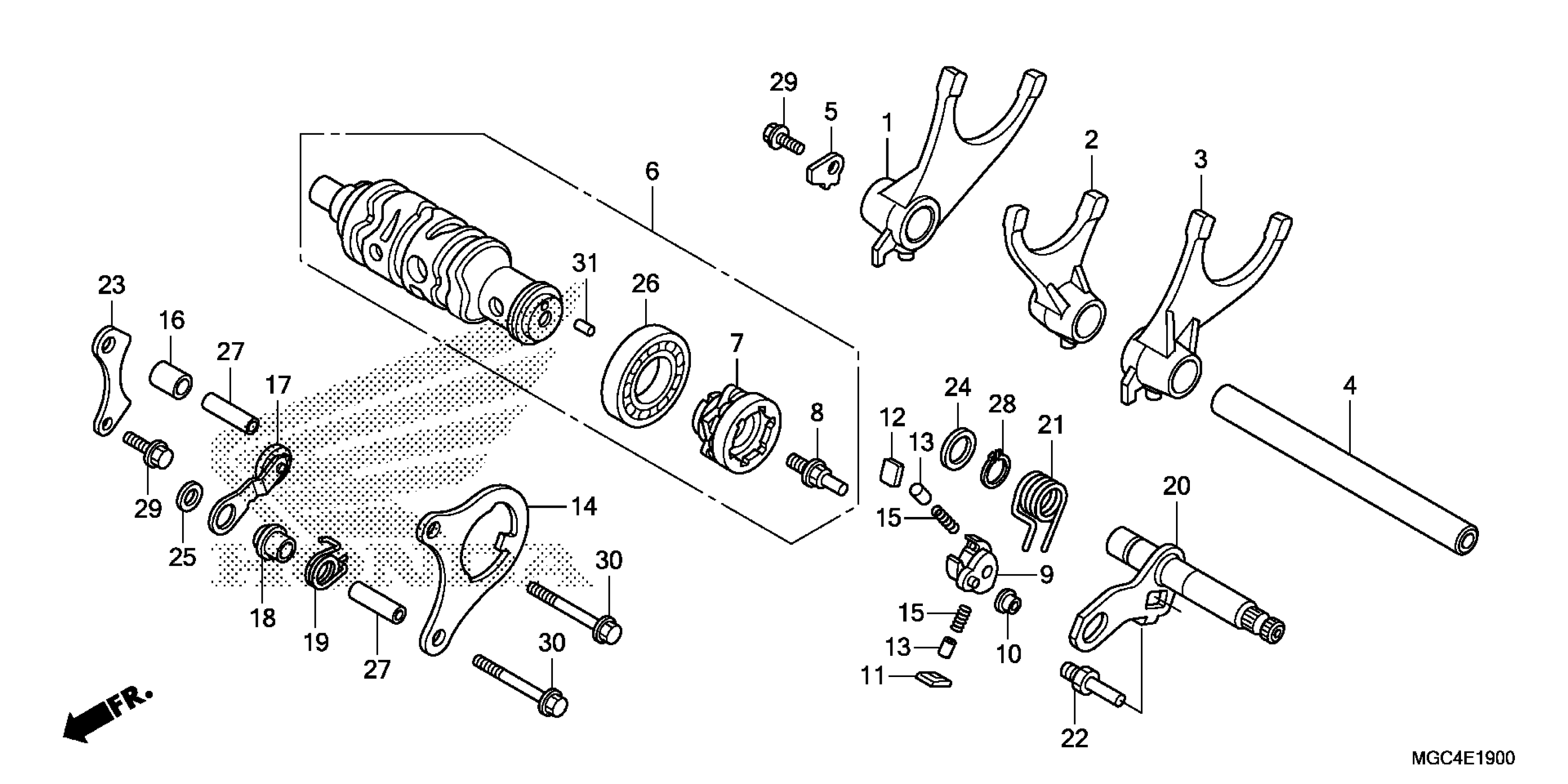

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 GEARSHIFT DRUM@GEARSHIFT FORK Diagram

FORK, R. GEARSHIFT

24211-MAZ-000

$58.72

FORK, CENTER GEARSHIFT

24212-MAZ-000

$56.66

FORK, L. GEARSHIFT

24213-MAZ-000

$61.38

SHAFT, GEARSHIFT FORK

24231-MS2-610

$23.38

PLATE, GEARSHIFT FORK SHAFT

24235-MAZ-000

$5.75

DRUM, GEARSHIFT

24310-MAZ-010

$153.93

CENTER, GEARSHIFT DRUM

24312-KY2-310

$37.64

PIN, SHIFTER

24315-HA0-000

$12.60

SHIFTER, DRUM

24321-KT8-030

$55.03

COLLAR, SHIFTER

24322-MM4-000

$5.12

PAWL A, RATCHET

24324-KA3-711

$13.21

PAWL B, RATCHET

24325-KA3-711

$13.21

PLUNGER, PAWL

24326-KBH-901

$5.81

PLATE, GUIDE

24328-MFP-N90

$13.80

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

COLLAR, GUIDE PLATE DISTANCE

24329-KT8-000

$5.97

STOPPER, DRUM

24430-MBR-000

$16.43

COLLAR, DRUM STOPPER

24434-KT7-000

$9.13

SPRING, DRUM STOPPER

24435-MFP-N91

$4.84

SPINDLE, GEARSHIFT

24610-MFP-N90

$65.31

SPRING, SHIFT RETURN

24651-MAE-000

$8.20

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

PLATE, SHIFT DRUM BEARING SETTING

24655-MM5-000

$11.43

WASHER (14MM)

90451-155-000

$3.78

WASHER (8MM)

90485-040-000

$1.77

BEARING, BALL (16005) (NTN CORP.)

91008-374-003

$15.03

PIN, DOWEL (8X31.5)

91104-KT7-000

$5.11

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06

ROLLER (4X8)

96220-40080

$1.49
