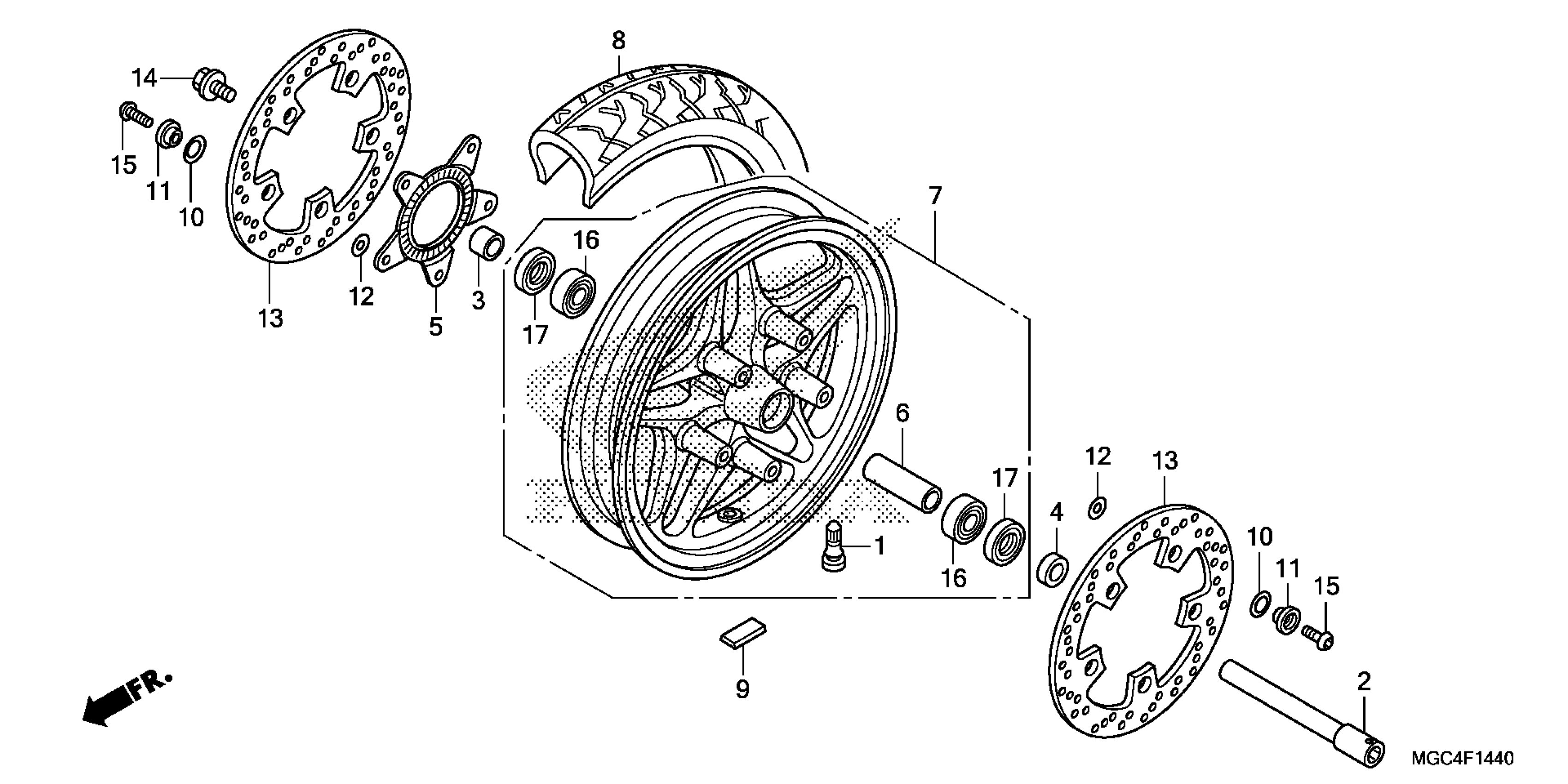

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 FRONT WHEEL Diagram

#

Description
Price

1

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$11.44

1

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.44

2

AXLE, FR. WHEEL

44301-MGC-000

$58.07

3

COLLAR, R. FR. WHEEL SIDE

44311-MGC-D30

$11.01

4

COLLAR, L. FR. WHEEL SIDE

44312-MGC-000

$12.35

5

RING, FR. PULSER

44515-MGC-N10

$108.45

6

COLLAR, FR. AXLE DISTANCE

44620-MBW-E10

$13.29

7

WHEEL SUB-ASSY., FR. (COO)

44650-MGC-306

$1,057.81

8

TIRE, FR. This part replaces 44711-MGC-003.

44711-MGC-013

$200.69

8

TIRE, FR. This part replaces 44711-MGC-004.

44711-MGC-034

$190.71

8

TIRE, FR.

44711-MGC-013

$200.69

8

TIRE, FR. This part replaces 44711-MGC-014.

44711-MGC-034

$190.71

8

TIRE, FR. This part replaces 44711-MGC-024.

44711-MGC-034

$190.71

8

TIRE, FR.

44711-MGC-034

$190.71

9

WEIGHT, BALANCE (10G)

44721-MGC-003

$4.01

9

WEIGHT, BALANCE (15G)

44722-MGC-003

$4.78

9

WEIGHT, BALANCE (20G)

44723-MGC-003

$4.78

10

SPRING, FR. DISK

45223-MGC-003

$5.71

11

COLLAR, FR. DISK

45225-MGC-000

$11.48

12

WASHER, FR. DISK

45226-MGC-000

$4.56

13

DISK, FR. BRAKE

45251-MGC-N01

$347.09

14

BOLT, FR. AXLE

90105-MBT-610

$5.38

15

BOLT, TORX (6X18)

90105-MGC-000

$4.03

16

BEARING, RADIAL BALL (20X45X12)

91052-MBW-E11

$12.06

17

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.49
