Description

Price

1

PIPE, EX.

18150-MGC-D30

$2,347.89

2

GASKET, EX. PIPE

18291-MM5-860

$5.17

3

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

4

COVER, TAIL (COO)

18305-MGC-305

$85.82

5

MUFFLER

18310-MGC-D30

$1,240.34

5

MUFFLER This part replaces 18310-MGC-305.

18310-MGC-D30

$1,240.34

6

RUBBER, PROTECTOR MOUNTING

18357-MCG-000

$2.92

7

BAND, L. RR. MUFFLER (R. SIDE)

18376-413-000

$36.70

8

GASKET, RR. MUFFLER

18392-MG7-750

$13.66

9

RUBBER, MUFFLER MOUNTING

18421-MBT-D21

$14.20

10

COLLAR, MUFFLER MOUNTING

18422-MA6-000

$7.91

11

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$18.48

12

COLLAR, EX. PIPE MOUNTING

18423-MFJ-D00

$6.69

13

COVER, MUFFLER

18425-MGC-000

$214.85

14

SENSOR, OXYGEN

36531-MGC-003

$280.08

15

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

16

SCREW, SPECIAL (6X14)

90114-MCJ-000

$2.51

17

BOLT, SPECIAL (5X8)

90114-MFP-N00

$4.75

18

NUT, CAP (8MM)

90304-ME1-670

$5.94

19

WASHER (8.5X38)

90501-MFJ-D00

$2.15

20

WASHER (8.5X26)

90504-MA6-000

$1.66

21

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

22

BOLT, FLANGE (8X38)

95701-08038-00

$1.51

23

BOLT, FLANGE (8X40)

96300-08040-00

$2.13

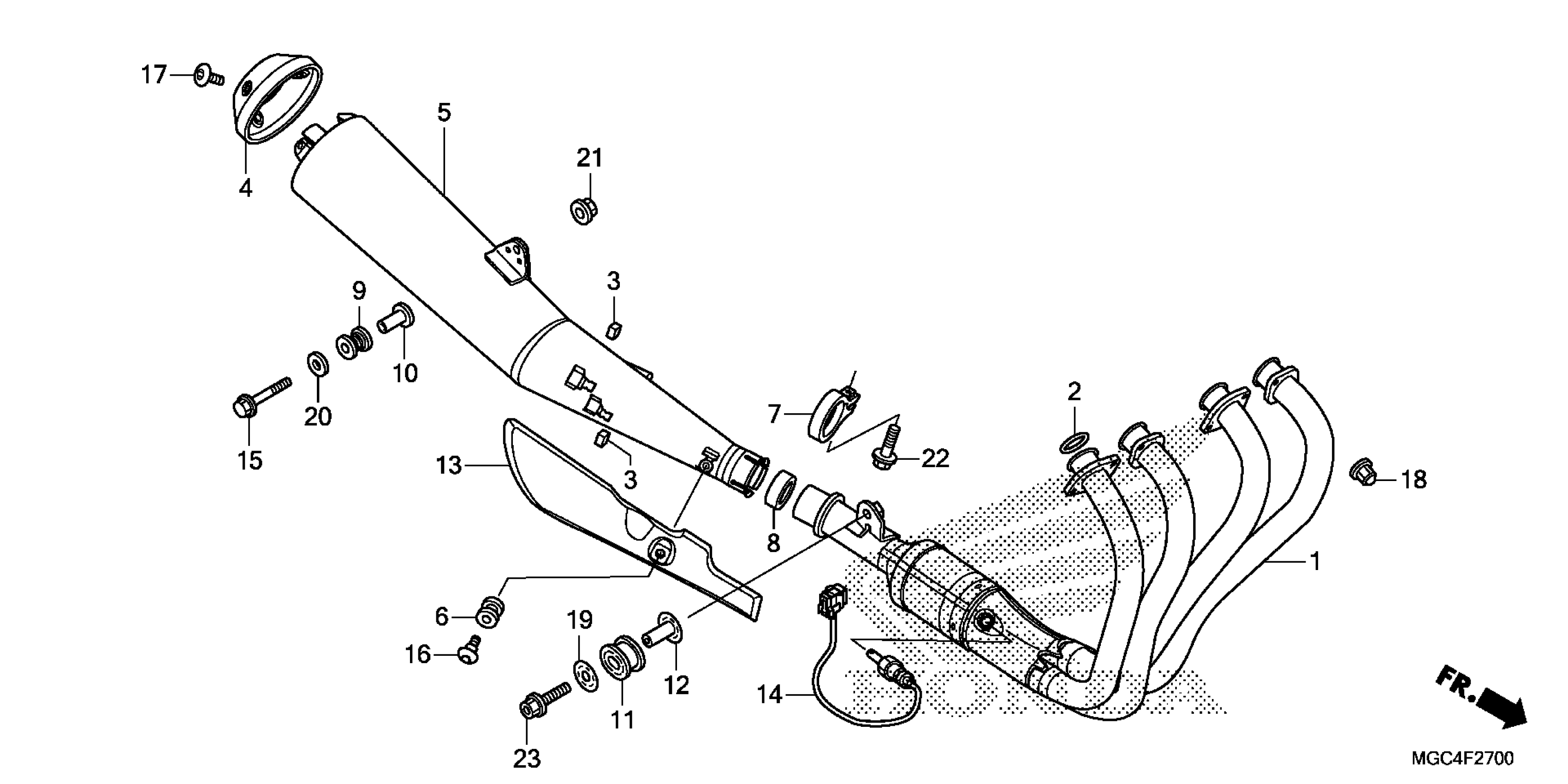

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 EXHAUST MUFFLER Diagram
