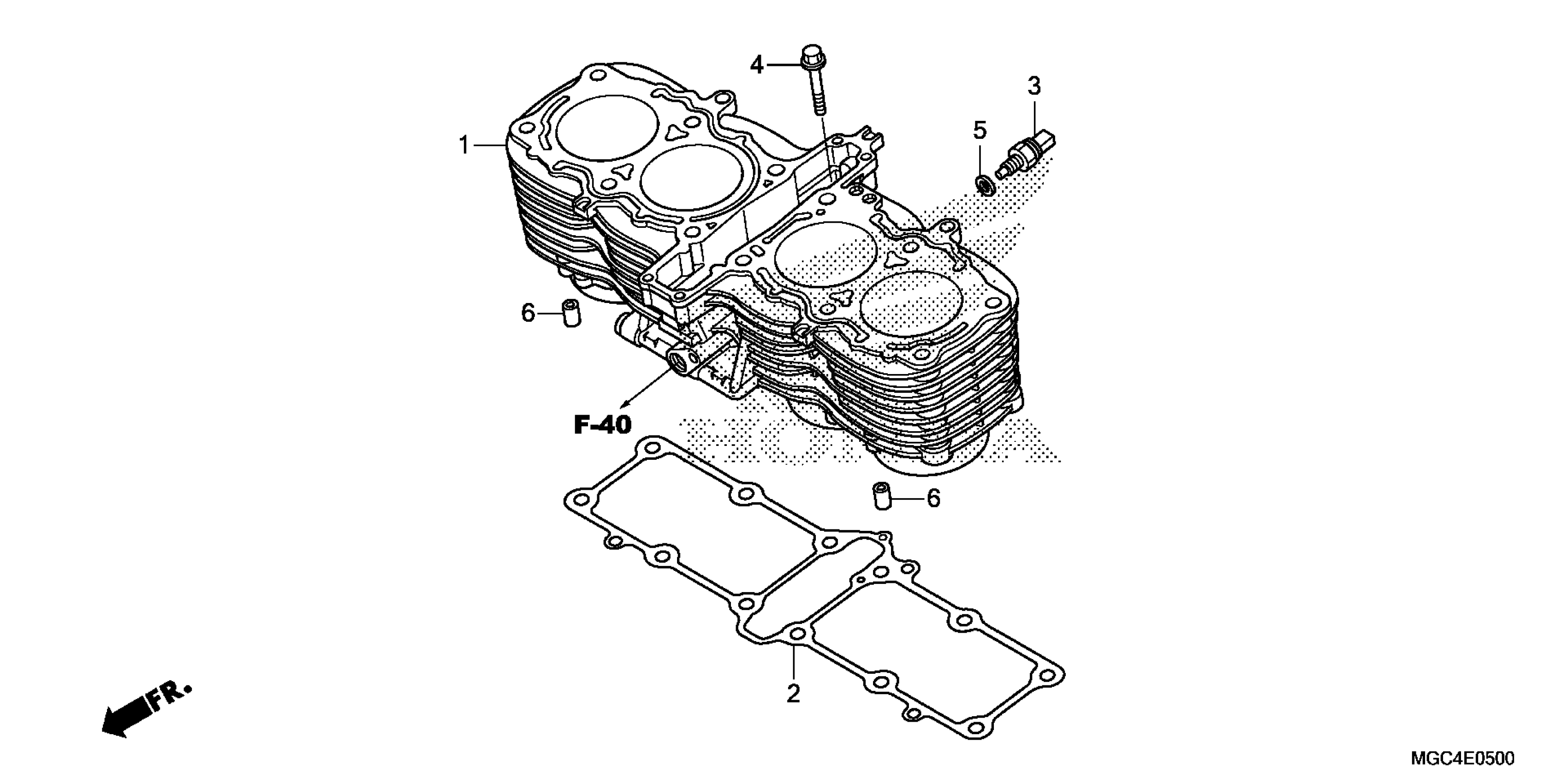

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12100-MGC-920

$1,475.52

2

GASKET, CYLINDER

12191-MGC-003

$69.57

3

SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)

37750-KPH-701

$45.22

4

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.79

5

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.80

6

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.24
