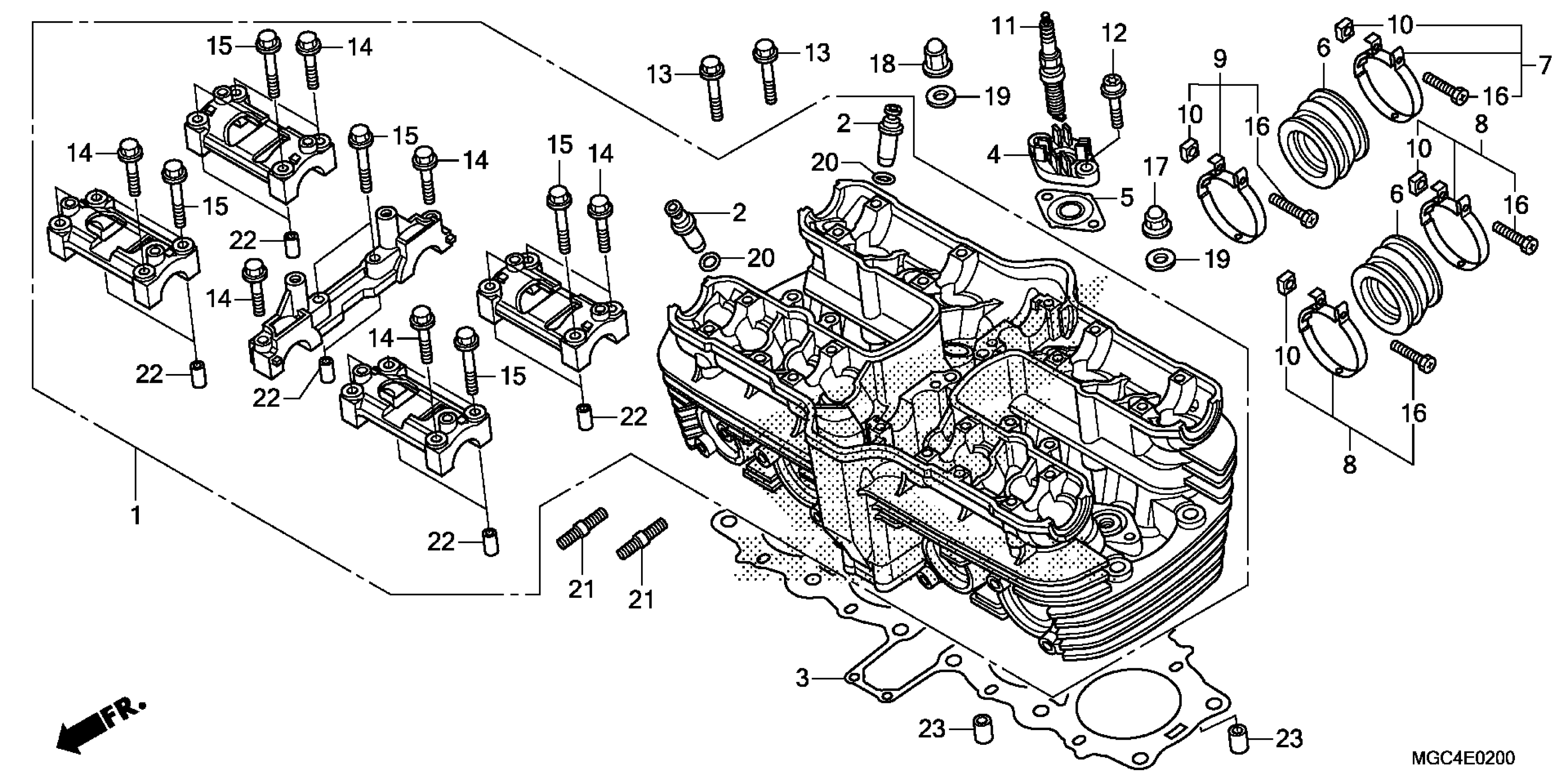

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-MGC-920

$1,799.25

2

GUIDE, VALVE (OVER SIZE)

12204-MGC-305

$20.91

3

GASKET, CYLINDER HEAD

12251-MGC-003

$115.59

4

COVER, PLUG HOLE

12511-MGC-920

$28.03

5

GASKET, PLUG HOLE COVER

12521-MGC-003

$6.00

6

INSULATOR, THROTTLE BODY

16210-MGC-000

$44.48

7

BAND, INSULATOR (#2,#3)

16217-MGC-000

$8.07

8

BAND, INSULATOR (#1,#4)

16218-MGC-J80

Unavailable

9

BAND, INSULATOR (#2,#3)

16219-MGC-J80

$6.65

10

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$1.96

11

SPARK PLUG (LMAR8A-9S) (NGK)

31908-MGC-003

$15.92

12

BOLT, FLANGE TORX (6X25)

90002-MGC-000

$2.75

13

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.79

14

BOLT, FLANGE (6X37)

90016-KT7-000

$2.80

15

BOLT, FLANGE (6X48) (Honda Code 0717256)

90018-425-000

$3.12

16

BOLT, RECESSED (5X28) (GQ51B C)

90023-MM5-000

$2.80

17

NUT, CAP (9MM)

90231-MGC-000

$2.74

18

NUT, CAP (9MM)

90232-MGC-000

$2.70

19

WASHER, SEALING (9MM)

90411-MGC-000

$4.41

20

O-RING (10X1.6)

91301-200-000

$2.80

21

BOLT 2, STUD (8X28)

92900-08028-0E

$2.13

22

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.04

23

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.24
