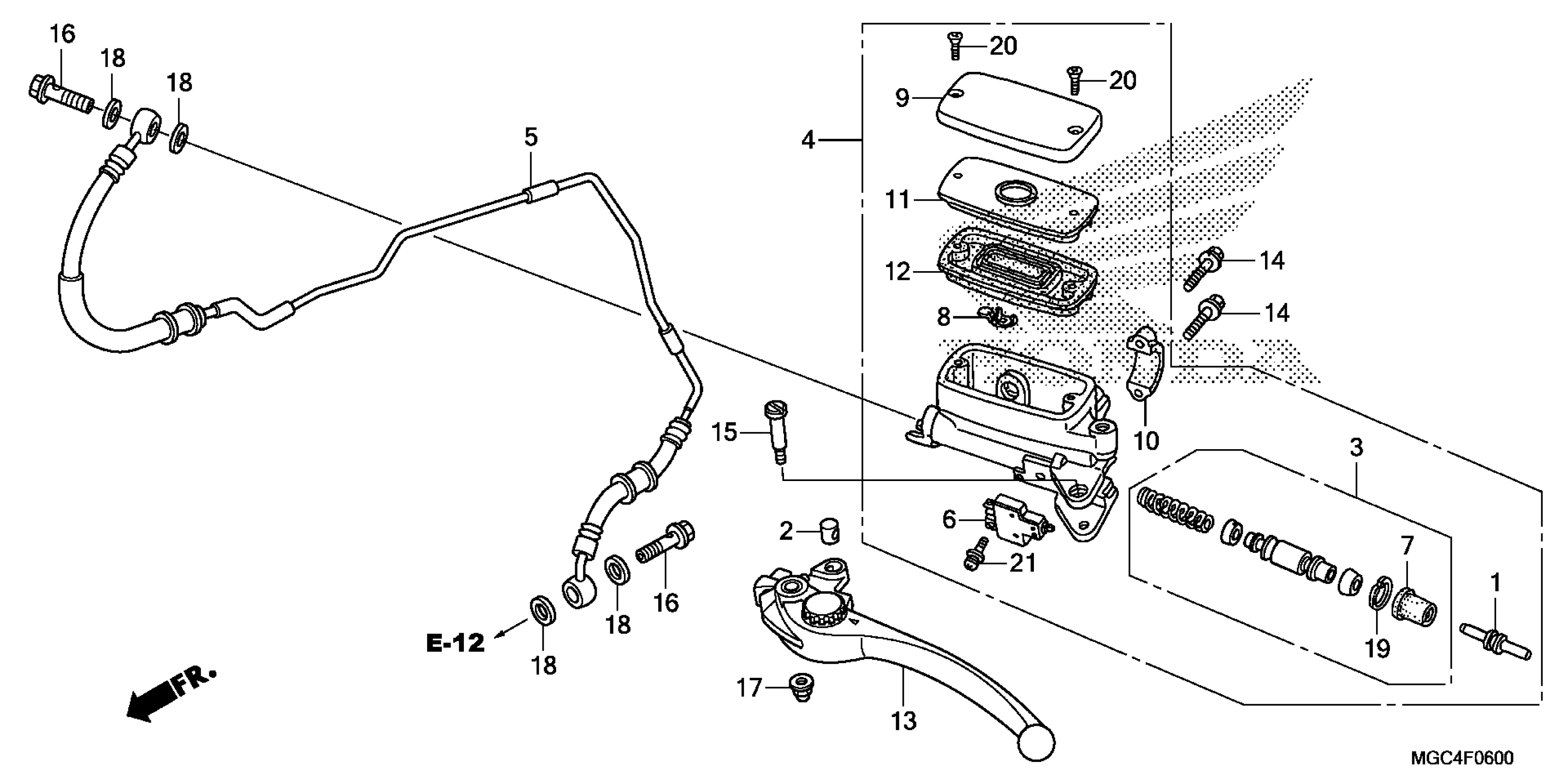

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MAT-E01

$19.35

2

BUSH

22885-MB0-006

$12.95

3

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$57.04

4

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN) This part replaces 22890-MGY-305.

22890-MGY-641

$390.93

4

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN)

22890-MGY-641

$390.93

5

PIPE, CLUTCH

22900-MGC-003

$236.97

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

7

BOOT

45504-MAT-E01

$10.65

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

10

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

11

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

12

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

13

LEVER ASSY., L. HANDLE

53180-MEJ-016

$50.86

13

LEVER ASSY., L. HANDLE This part replaces 53180-MEJ-305.

53180-MEJ-016

$50.86

14

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.49

15

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

16

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

17

NUT, CAP (6MM)

90201-415-000

$2.05

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

21

SCREW-WASHER (4X12)

93893-04012-07

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49
