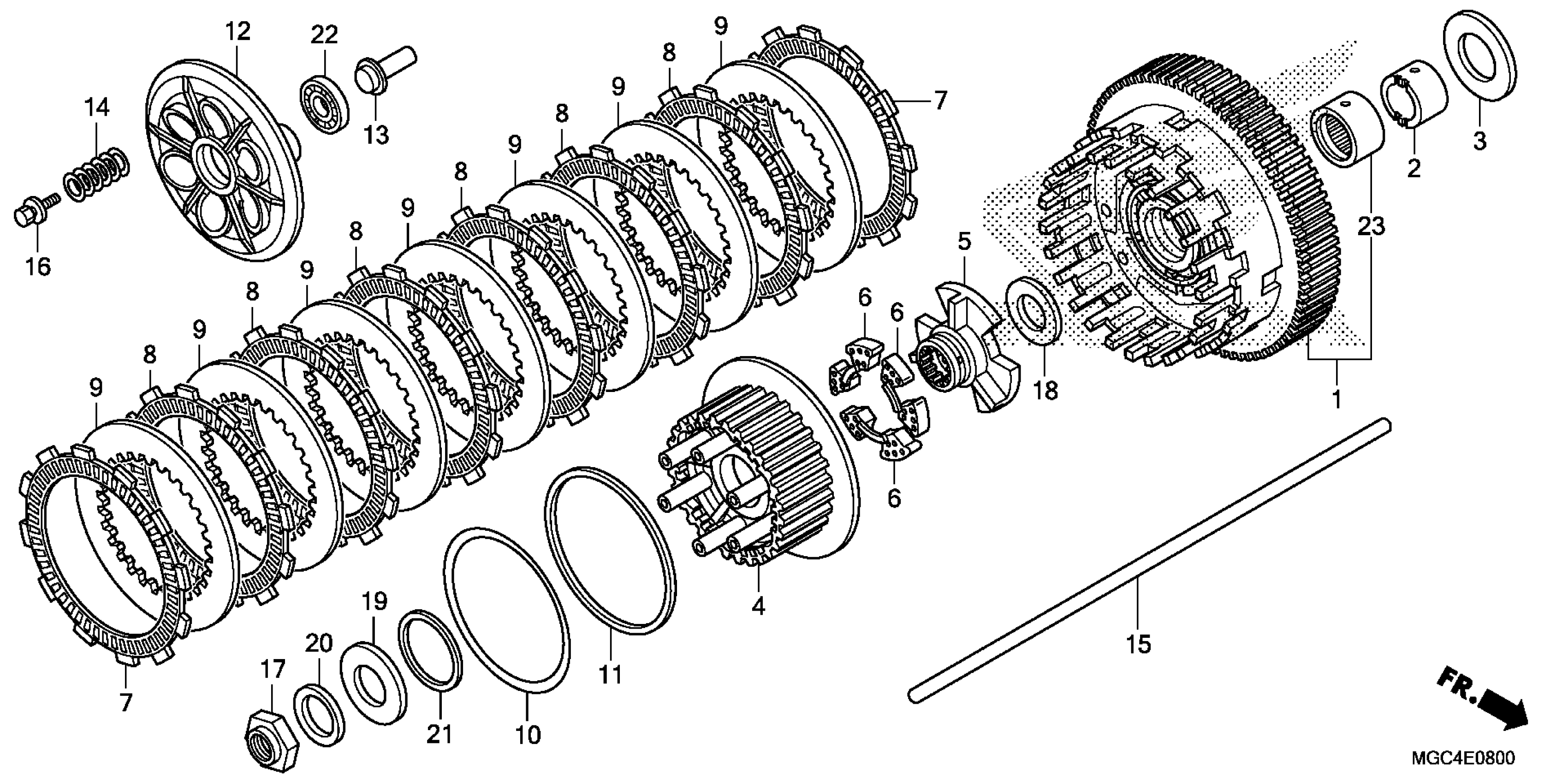

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 CLUTCH Diagram

CLUTCH OUTER

22100-MEJ-000

$420.85

GUIDE, CLUTCH (OUTER)

22116-MS2-610

$36.34

COLLAR, DISTANCE

22117-MEJ-610

$9.36

CENTER, CLUTCH

22121-MEJ-000

$117.34

BOSS, CLUTCH CENTER

22122-MEJ-610

$150.20

RUBBER, CLUTCH DAMPER

22125-MEJ-000

$16.93

DISK, CLUTCH FRICTION

22201-MBB-000

$21.19

DISK, CLUTCH FRICTION

22201-MBT-F20

$33.31

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

SPRING, CLUTCH PLATE

22325-MN4-000

$10.43

SEAT, JUDDER SPRING

22326-MV1-000

$7.56

PLATE, CLUTCH PRESSURE

22351-MEJ-000

$76.08

PIECE, CLUTCH JOINT

22366-MAZ-000

$12.30

SPRING, CLUTCH

22401-MAT-000

$6.18

ROD, CLUTCH LIFTER

22850-MEJ-000

$29.64

BOLT-WASHER (6X35)

90022-MAT-E00

$4.87

NUT, LOCK (25MM)

90231-MCH-000

$6.78

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

WASHER (25.2X51X2.5)

90402-MEA-670

$4.89

WASHER, SPRING (25MM) (CHUO HATSUJO)

90432-MM8-003

$7.70

SHIM D, FINAL REDUCTION SECOND GEAR (1.0MM)

90456-759-000

$9.70

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

BEARING, NEEDLE (40X47X31)

91024-MM5-003

$86.62
