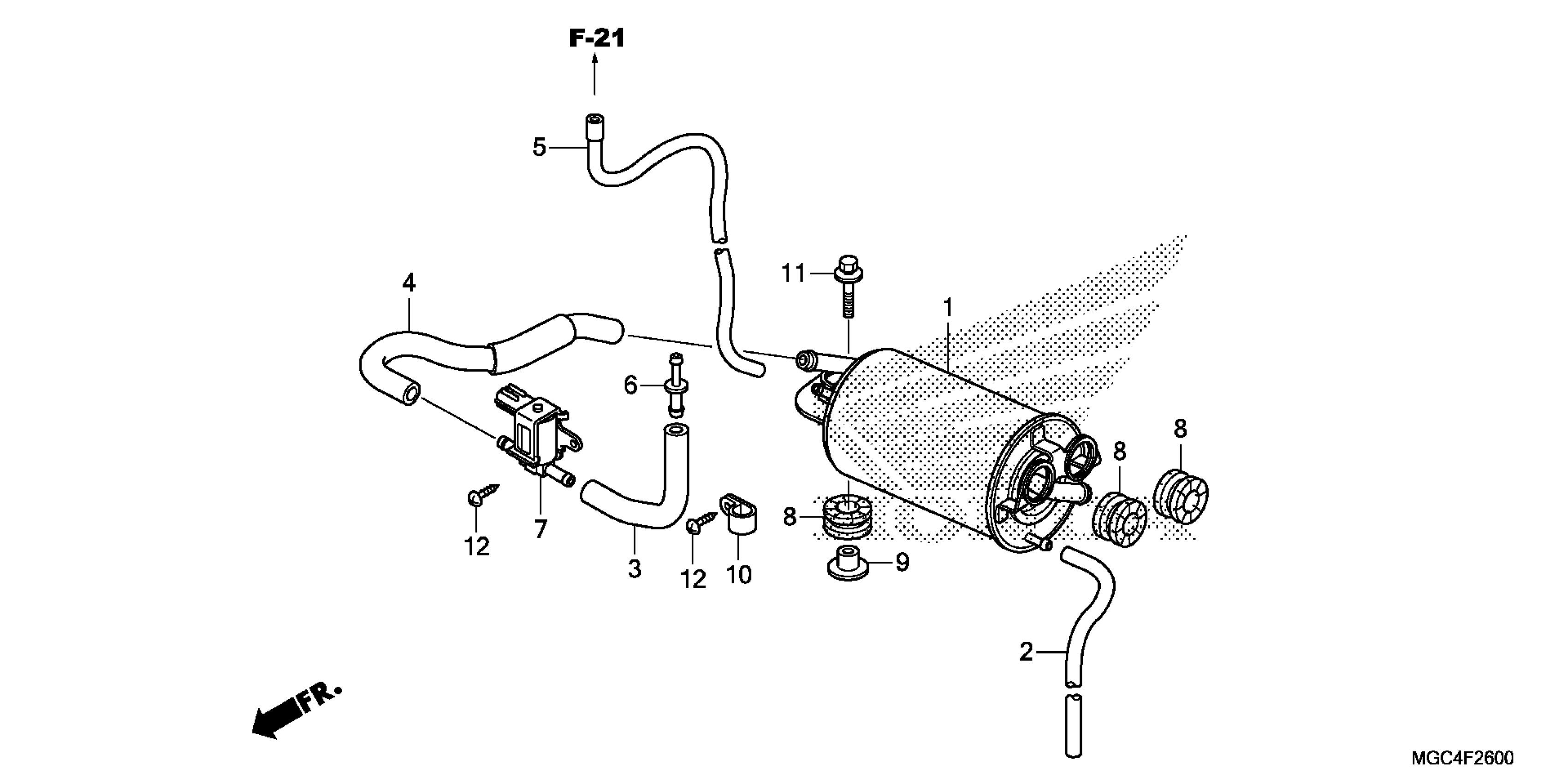

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 CANISTER Diagram

CANISTER

17410-MGC-A21

$339.43

TUBE, CANISTER DRAIN

17470-MGC-A20

$21.07

TUBE, PURGE CONTROL VALVE JOINT

17554-MGC-A20

$4.20

TUBE, CANISTER PURGE CONTROL VALVE

17555-MGC-A20

$6.72

TUBE, FUEL TANK CANISTER

17556-MGC-A20

$15.98

JOINT, TUBE

19126-KM1-010

$3.90

VALVE, PURGE CONTROL SOLENOID

36162-PLC-003

$64.26

RUBBER, JOINT PLATE

52112-MCA-000

$3.02

COLLAR A, FR. FENDER

61105-MFR-670

$4.85

CLIP (14MM)

90628-750-000

$2.31

BOLT-WASHER (6X25)

93404-06025-00

$1.49

SCREW, TAPPING (5X16)

93911-25420

$1.49
