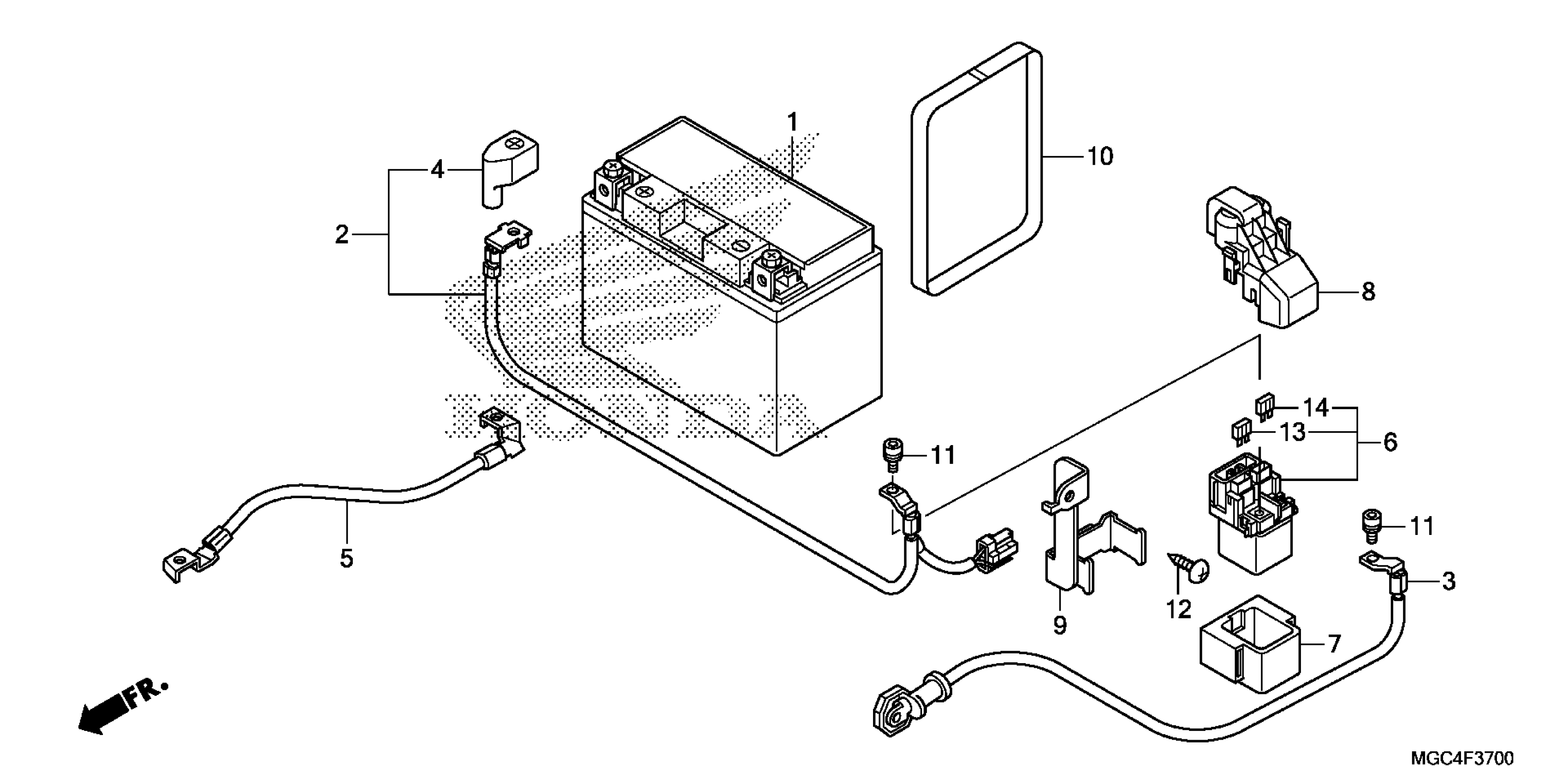

Honda CB1100AAC (13) MOTORCYCLE, JPN, VIN# JH2SC655-DK000001 BATTERY Diagram

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D02AH.

31500-MCR-D03

$196.34

BATTERY (YTZ14S) (YUASA) (MSDS)

31500-MCR-D03

$196.34

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D03AH.

31500-MCR-D03

$196.34

CABLE, STARTER BATTERY

32401-MGC-750

$36.38

CABLE, STARTER MOTOR

32402-MGC-000

$33.44

COVER, BATTERY TERMINAL

32411-MFL-D00

$5.25

CABLE, BATTERY GROUND

32601-MGC-000

$28.34

SWITCH ASSY., STARTER MAGNETIC

35850-MFL-003

$76.14

RUBBER, SHOCK

35856-KL8-740

$10.56

COVER, MAGNETIC SWITCH

35857-MFN-D00

$8.72

STAY, STARTER MAGNETIC

35865-MGC-000

$11.51

TAPE, BATTERY LIFT

50328-KSV-J00

$5.64

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

SCREW, TAPPING (6X16) (NOT AVAILABLE)

93903-26280

Unavailable

FUSE, MINI (20A)

98200-42000

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
